Resolution 0.01㎜ Concave Jelly Strength Tester QB2484-2000 Sag Accuracy 0.01mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Range | 0-79.8mm | Time Control Device | The Time Can Be Arbitrarily Set According To Your Own Needs, With A Time Error Of Less Than ± 0.1 Seconds |
|---|---|---|---|
| Resolution | 0.01㎜ | Required Height Of Glass | 7.94 ± 0.1cm (standard Configuration 7.85cm) |
| Sag Accuracy | 0.01mm | ||
| Highlight | Concave Jelly Strength Tester,high Resolution jelly strength tester,high Accuracy jelly strength tester |
||
Product Description

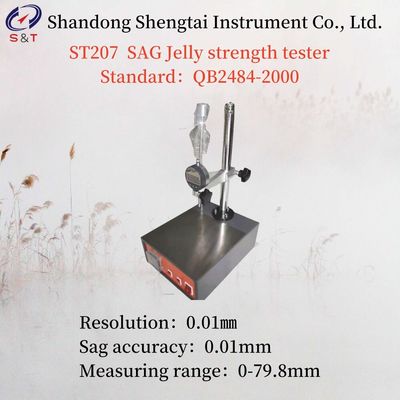

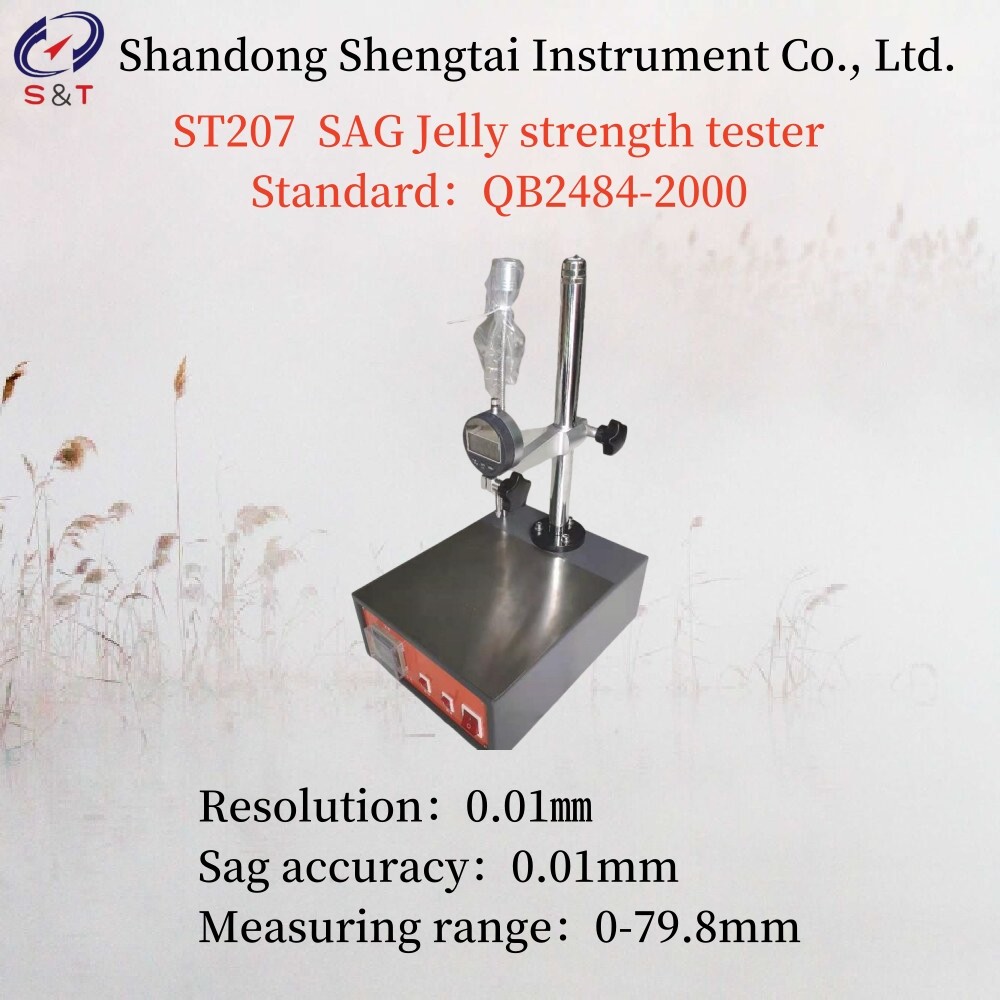

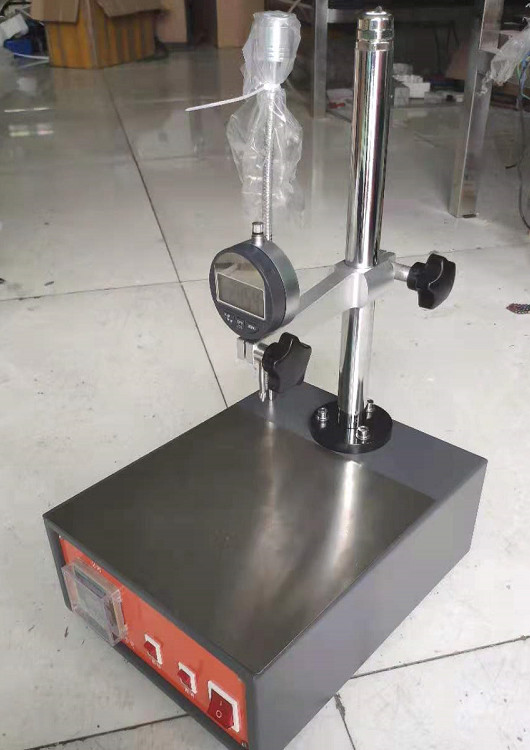

ST207 SAG Jelly strength tester
ST207 jelly strength tester is designed and manufactured according to the requirements specified in the pectin standard QB2484-2000, and is mainly used to measure the strength of jelly. Pectin gel strength tester (SAG)
Main technical features
1.Digital display is used to display the depression value, which is intuitive and eye-catching.
2.The digital display of the time control device can be adjusted arbitrarily from 0 to 99 minutes.
3.With coarse and fine adjustment functions of the lifting frame, it is convenient to adjust and accurate to align the needle.
Main technical parameters
| Measuring range | 0-79.8mm |
| Time control device | The time can be arbitrarily set according to your own needs, with a time error of less than ± 0.1 seconds |
| Resolution | 0.01㎜ |
| Required height of glass |
7.94 ± 0.1cm (standard configuration 7.85cm)
|
| Sag accuracy | 0.01mm |
1.Measuring range:0-79.8mm;
2.Time control device:The time can be arbitrarily set according to your own needs, with a time error of less than ± 0.1 seconds;
3.Resolution:0.01㎜;
4.Required height of glass:7.94 ± 0.1cm (standard configuration 7.85cm)
5.Sag accuracy:0.01mm;
6.Lifting bracket: dual lifting and adjusting mechanisms for coarse and fine adjustment, facilitating the alignment of the standard rod with the plane of the sample;
Packing list
| No | Name | Unit | Number |
| 1 | Instrument host | 1 | |
| 2 | Standard Column | ||
| 3 | Standard glass | 3 | |
| 4 | Fuse 5A(∮5×20) | 1 | |
| 5 | Power cord (250V 6A) | 1 | |
| 6 | Instruction manual | 1 | |
| 7 | Factory certificate card | 1 |
ST207 jelly strength tester is designed and manufactured according to the requirements specified in the pectin standard QB2484-2000, and is mainly used to measure the strength of jelly. Pectin gel strength tester (SAG)
Main technical features
1.Digital display is used to display the depression value, which is intuitive and eye-catching.
2.The digital display of the time control device can be adjusted arbitrarily from 0 to 99 minutes.
3.With coarse and fine adjustment functions of the lifting frame, it is convenient to adjust and accurate to align the needle.
Main technical parameters
1.Measuring range:0-79.8mm;
2.Time control device:The time can be arbitrarily set according to your own needs, with a time error of less than ± 0.1 seconds;
3.Resolution:0.01㎜;
4.Required height of glass:7.94 ± 0.1cm (standard configuration 7.85cm)
5.Sag accuracy:0.01mm;
6.Lifting bracket: dual lifting and adjusting mechanisms for coarse and fine adjustment, facilitating the alignment of the standard rod with the plane of the sample;
Packing list
| No | Name | Unit | Number |
| 1 | Instrument host | 1 | |
| 2 | Standard Column | ||
| 3 | Standard glass | 3 | |
| 4 | Fuse 5A(∮5×20) | 1 | |
| 5 | Power cord (250V 6A) | 1 | |
| 6 | Instruction manual | 1 | |
| 7 | Factory certificate card | 1 |
