Power AC 220V Pesticide Boiling Point Meter Portable High Precision
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Power Supply | AC 220V ± 10%, 50Hz | Electric Furnace Heating Powe | 1000W |
|---|---|---|---|
| Environmental Temperature | ≤ 35 ℃ | Relative Humidity | ≤ 85% |
| Power Consumption Of The Entire Machine | Not More Than 1100W | Heating Range | Room Temperature To 300 ℃ |
| Instrument Size | 320 X 290 X 360mm | Instrument Weight | 15kg |
| Packaging Size | 450 X 390 X 420mm | Packaging Weight | 18kg |
| Highlight | Portable Pesticide Boiling Point Meter,AC 220V Pesticide Boiling Point Meter,High Precision Pesticide Boiling Point Meter |
||
Product Description

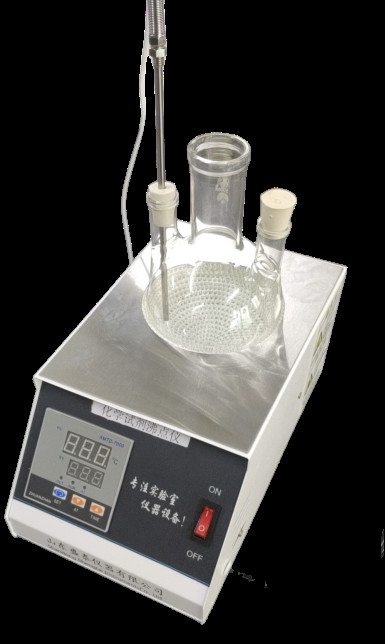

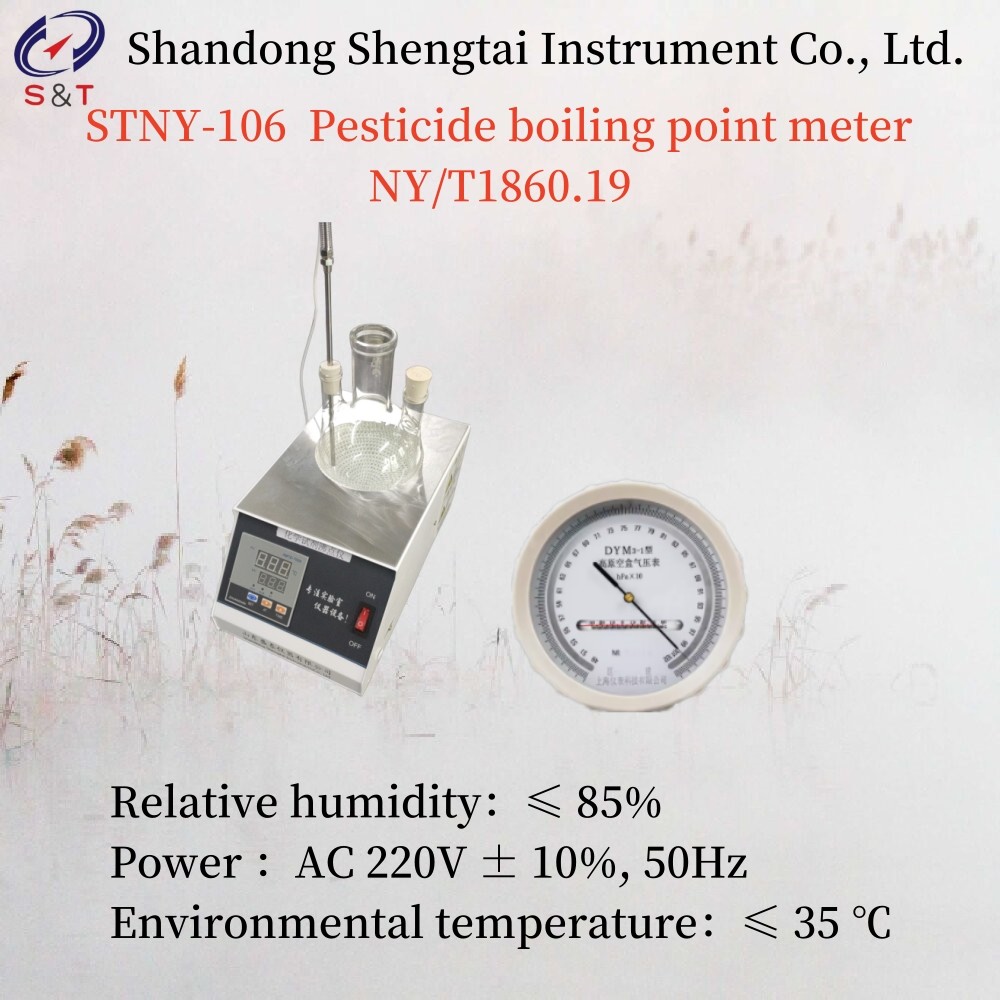

STNY-106 Pesticide boiling point meter
The STNY-106 pesticide boiling point meter is designed and manufactured strictly in accordance with the testing guidelines for the physical and chemical properties of pesticides in NY/T1860.19, Part 19: Boiling point determination method. It uses a digital tube display and a single-chip microcomputer digital precision pressure regulating electric heater. Due to the use of precision digital pressure regulation, the electric heater has the characteristics of fine pressure regulation, stable heating, and stable temperature rise.
Boiling point: The principle of this method is that as the temperature of the liquid rises, its vapor pressure also increases. When the vapor pressure of the liquid is equal to atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0 ℃), the boiling temperature of the liquid is the boiling point of the liquid.
Technical parameters:
lWorking power supply: AC 220V ± 10%, 50Hz.
lElectric furnace heating power: 1000W.
lEnvironmental temperature: ≤ 35 ℃.
lRelative humidity: ≤ 85%.
lPower consumption of the entire machine: not more than 1100W.
lHeating range: room temperature to 300 ℃
lInstrument size: 320 x 290 x 360mm
lInstrument Weight: 15kg
lPackaging size: 450 x 390 x 420mm
lPackaging Weight: 18kg
Customer provided: atmospheric pressure gauge
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Main engine | 1 | set | |
| 2 | Customized special three necked flask | 1 | piece | |
| 3 | Thermometer | 2 | piece | |
| 4 | Power cord | 1 | piece | |
| 5 | Instructions | 1 | piece | |
| 6 | Packing list | 1 | copy | |
| 7 | Certificate of conformity | 1 | copy |
The STNY-106 pesticide boiling point meter is designed and manufactured strictly in accordance with the testing guidelines for the physical and chemical properties of pesticides in NY/T1860.19, Part 19: Boiling point determination method. It uses a digital tube display and a single-chip microcomputer digital precision pressure regulating electric heater. Due to the use of precision digital pressure regulation, the electric heater has the characteristics of fine pressure regulation, stable heating, and stable temperature rise.
Boiling point: The principle of this method is that as the temperature of the liquid rises, its vapor pressure also increases. When the vapor pressure of the liquid is equal to atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0 ℃), the boiling temperature of the liquid is the boiling point of the liquid.
Technical parameters:
lWorking power supply: AC 220V ± 10%, 50Hz.
lElectric furnace heating power: 1000W.
lEnvironmental temperature: ≤ 35 ℃.
lRelative humidity: ≤ 85%.
lPower consumption of the entire machine: not more than 1100W.
lHeating range: room temperature to 300 ℃
lInstrument size: 320 x 290 x 360mm
lInstrument Weight: 15kg
lPackaging size: 450 x 390 x 420mm
lPackaging Weight: 18kg
Customer provided: atmospheric pressure gauge
