Pesticide Freeze-Thaw Stability Tester NYT 2989-2016 Power 3.0KW

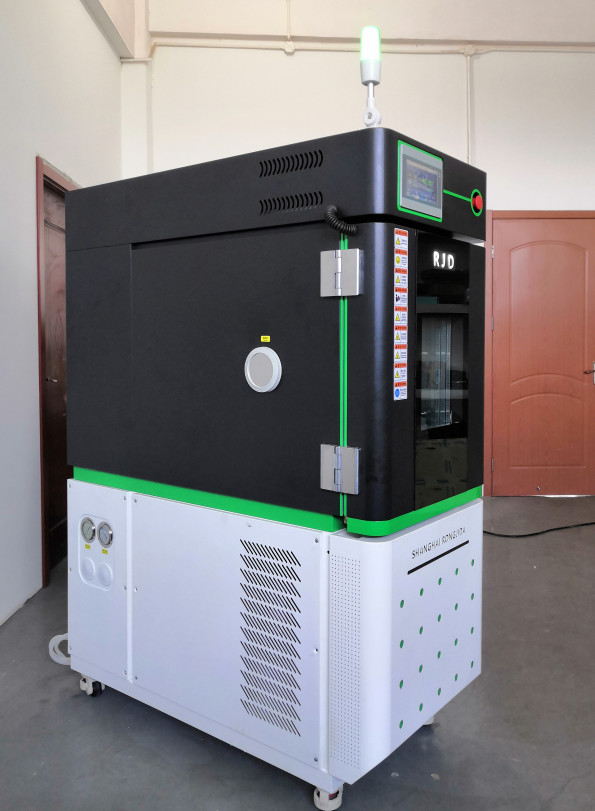

STNY-108 pesticide freeze-thaw stability tester

STNY-108 pesticide freeze-thaw stability tester is designed and manufactured according to the specifications of NYT 2989-2016 pesticide registration products. For the freeze-thaw stability test of microencapsulated liquid formulations, imported components are used for the compressor, heating section, and power control section, ensuring high quality and performance. The temperature difference at each point inside the freeze-thaw box during full load operation shall not exceed 1 ℃. Automatic control, real-time dynamic display of data curves, automatic storage of experimental data, and automatic recovery function for unexpected termination of experiments.

Microcapsule liquid formulations should undergo freeze-thaw stability tests. The purpose of the experiment is to ensure the integrity of the capsule when the temperature changes, in order to ensure the complete release of the active ingredient. The conditions for the freeze-thaw stability test are to perform 4 cycles between (-10 ± 2) ℃ and (20 ± 2) ℃, with each cycle lasting 18 hours of freezing and 6 hours of melting.

Functional Features

● Cooling method: French Taikang fully enclosed air-cooled;

Output method: Supports USB interface connection to a mobile USB flash drive to export historical curves, historical data, and alarm records. The data exported from the USB flash drive can be viewed, printed, and recorded using PC upper computer software

● Operation mode: Fixed value, program operation can be selected

Control mode: PLC main module, temperature sensor module, communication cable, Ethernet/USB extension, accessory package

● Interface function: The interface device supports micro printers

Technical parameter

● Display mode: 7-inch touch screen display

Effective volume: 400 × 500 × 500mm

● Dimensions: 900 × 1000 × 1500mm

● Temperature range: -20 ℃~+80 ℃

● Heating rate: Heating rate: 3 ℃/min

Cooling rate: 0.7~1 ℃/min (+80 ℃<->-40 ℃. No load, average throughout the entire process)

● Cycle times: 4 times (arbitrarily set)

Freezing time: 18 hours (arbitrarily set)

Melting time: 6 hours (arbitrarily set)

Temperature fluctuation: ≤± 0.5 ℃

Temperature uniformity: ≤ 2 ℃

● Temperature deviation: ≤± 2 ℃

Operating power: ≈ 3.0KW

Net weight: 150KG
