portable ASTM D3078 Vacuum Sealing Performance Tester AC 220V 50HZ

  • portable ASTM D3078 Vacuum Sealing Performance Tester AC 220V 50HZ
  • portable ASTM D3078 Vacuum Sealing Performance Tester AC 220V 50HZ
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Certification GB/T 15171,ASTM D3078
Model Number ST-6
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Vacuum －90～0kPa Precision Level 1
Effective Size Of Vacuum Chamber Φ270mm×200mm(H)(This Is The Standard Size,the Size Can Be Fixed Air Connection Φ8 Polyurethane Tube
Dimensions 300mm(L)×380mm(B)×450mm(H) Power Supply AC 220V 50Hz
Net Weight 30kg The Standard Configuration Host,experimental Sealed Barrel,air Source Line
According To The Standard GB/T 15171,ASTM D3078
Highlight

ASTM D3078 Vacuum Sealing Performance Tester

,

AC 220V Vacuum Sealing Performance Tester

,

Portable Vacuum Sealing Performance Tester
Leave a Message
Product Description

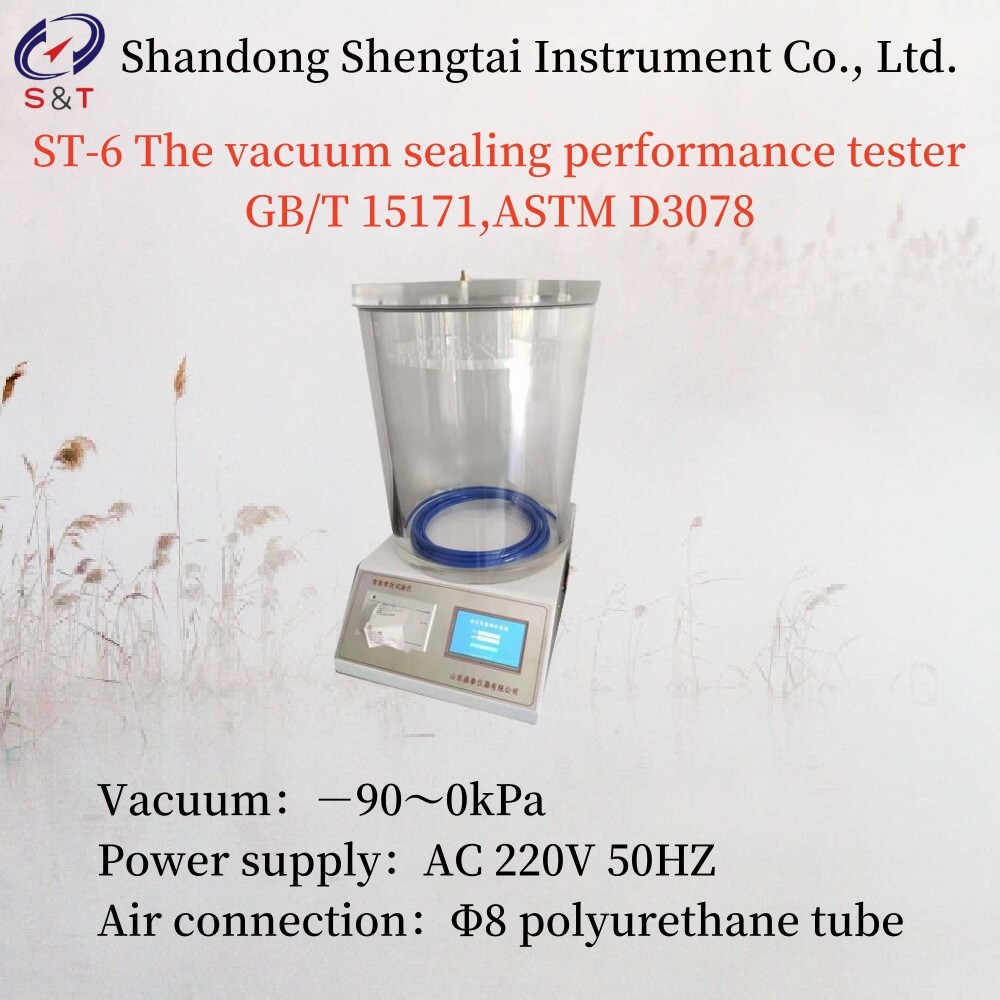

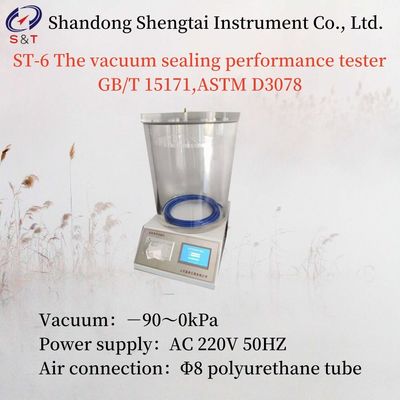

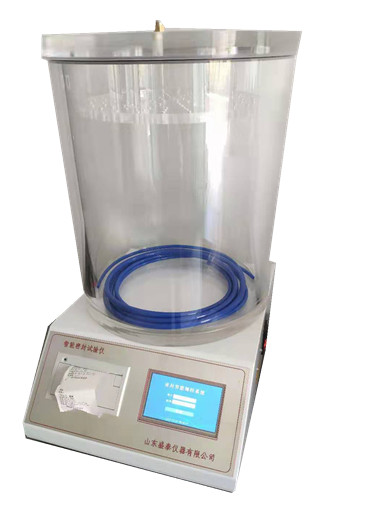

ST-6 The vacuum sealing performance tester

ST-6 The vacuum sealing performance tester is suitable for sealing test of products,through which the sealing process and sealing performance of flexible packaging can be compared and evaluated effectively.It is an ideal testing instrument for food, plastic soft packaging, wet wipes, pharmaceutical, daily chemical and other industries.Package Seal Integrity Testing / Package Leak Testers

ASTM D 3078 Blister Vial Packages Vacuum Sealing Performance Tester

Vacuum Sealing Performance Tester with Bubble Emission Method

China Vacuum Automated Filter Packaging Air Leakage Sealing Performance Tester

Technical indicators

Vacuum －90～0kPa
Precision Level 1
Effective size of vacuum chamber Φ270mm×200mm(H)(This is the standard size,the size can be fixed
Air connection Φ8 polyurethane tube
Dimensions 300mm(L)×380mm(B)×450mm(H)
Power supply AC 220V 50Hz
Net weight 30kg
The standard configuration Host,experimental sealed barrel,air source line
According to the standard GB/T 15171,ASTM D3078

portable ASTM D3078 Vacuum Sealing Performance Tester AC 220V 50HZ 0

The product application

Flexible packaging bag, rigid packaging bottle, medicine bottle, metal can, blister packaging, composite packaging

The performance characteristics of

1. Built-in air source unit, no need to connect external air source, plug and play

2. The system is controlled by microcomputer, with automatic operation of pumping pressure, maintaining pressure, filling pressure, timing, back blowing and printing

3. The device is equipped with A LCD screen and a miniature printer, which supports data presetting and power off memory to ensure the accuracy of test data

4. Support Chinese system or English system

5. Print and output test data to meet the needs of different customers.

6. With 3-level permission function and historical data query function

The test principle of

By vacuuming the vacuum chamber, the pressure difference between inside and outside of the sample immersed in water is generated, and the gas escape inside the sample is observed, so as to determine the sealing performance of the sample.

By vacuuming the vacuum chamber, the pressure difference between inside and outside of the sample is generated, and the shape recovery of the sample after expansion and vacuum release is observed, so as to determine the sealing performance of the sample



Base application Used for the test of overall sealing of glass bottles, pipes, cans and boxes
used for integral sealing test of plastic bottles, tubes, cans and boxes
used for testing the integral sealing of metal bottles, tubes, cans and boxes
used for sealing test of paper - plastic composite bags and boxes
Extended application Used for seal test of pen refill
Used for sealing test of electronic components
Suitable for sealing test of medical devices

portable ASTM D3078 Vacuum Sealing Performance Tester AC 220V 50HZ 1

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Plexiglas cylinder 1
3 power cord 1
4 Certificate warranty card 1 copy
5 instructions 1 copy
6
