High Precision Automatic Fat Coagulation Point Tester For Laboratory

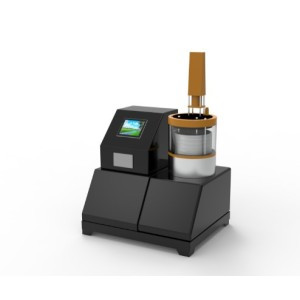

ST-016 Automatic fatty acid coagulation point tester

ST-016 Automatic Fat and Fatty Acid coagulation Point tester is designed and manufactured according to the standard SN/T0801.17 "Determination of coagulation Point of Imported and Exported Animal Fat and Fatty Acid" and the 2020 Chinese Pharmacopoeia 0713 Fat and Fatty Oil Determination Method. It is suitable for measuring the coagulation point of animal fat and fatty acid.

Technical parameter

● standard: SN/T0801.17, 2020 Chinese Pharmacopoeia 0713, Fatty acid pour point determination method in fat and fatty oil determination method

● Working power supply: AC220V ± 10%; 50Hz.

● Working cold bath: Double layer vacuum glass bath.

●Cold bath temperature control: -20 ℃~100 ℃

●Temperature sensor: PT100 imported temperature sensor

●Temperature control accuracy: ± 0.1 ℃.

●Storage method: the experimental results can store 199 sets of historical data, convenient to query;

●Output output: at the same time can be equipped with U disk output function, output to the PC terminal for long-term storage

●Output format: the result U disk output format is CSV or excel.

● Data management: Connect to lims system (optional)

●Account management: audit tracking account hierarchical management, level 3 authority management (optional).

● Data protection: with the date and password setting function.

● Standard printing: Standard printing

● Data extension: laser printer interface, can be linked to HP1108 laser printer (optional)

● Remote upgrade: with TCP network transmission function, can be upgraded remotely software later

● Bath mixing: mixing motor automatic stirring, power 6W, 1200r / min.

● Refrigeration system: the inlet refrigeration compressor.

● Sample mixing: synchronous deceleration motor, 1 time / second.

● Ambient temperature: 30℃.

● Relative humidity: 85%.

● Power consumption of the whole machine: about 1500W.
