Electronic Peel Testing Machine For Ointment Patches AC220V 50HZ

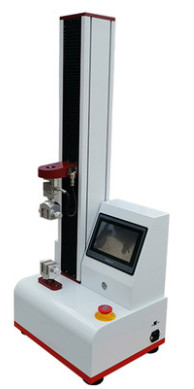

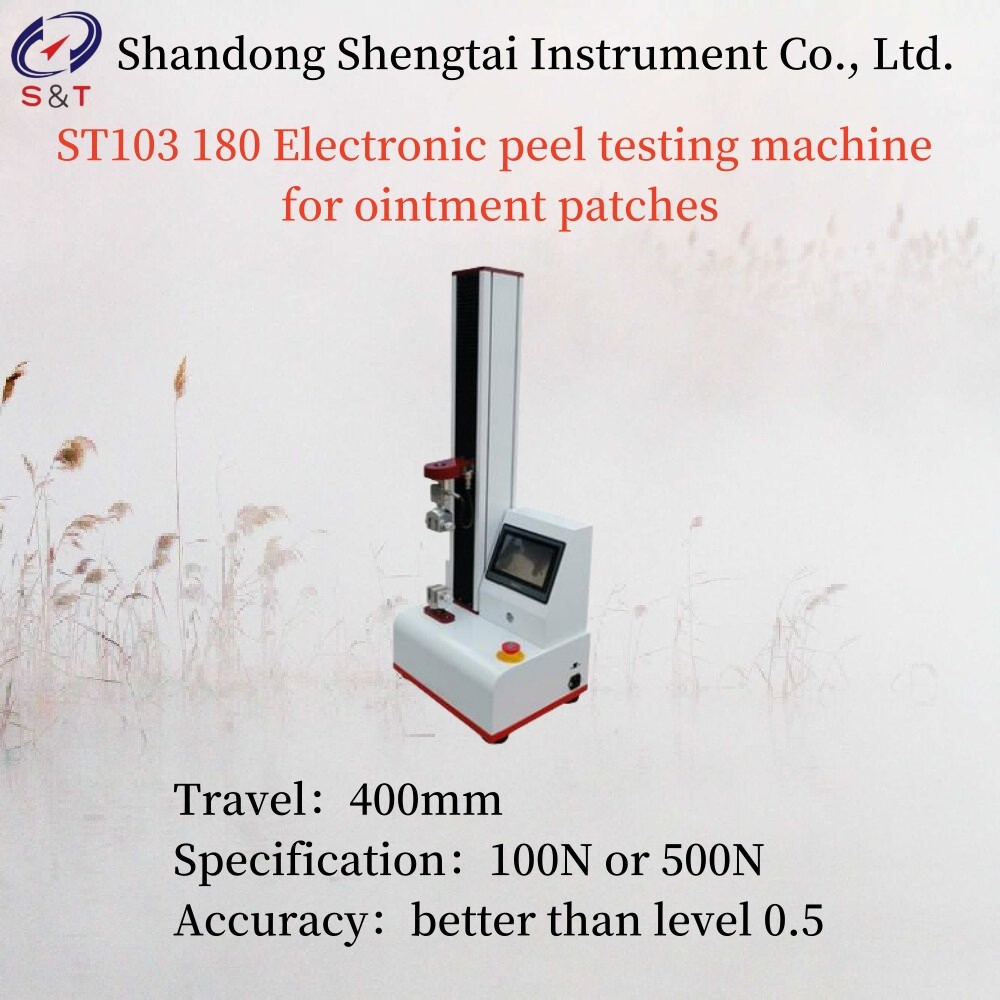

ST103 180° Electronic peel testing machine for ointment patches

The ST103 ointment 180° electronic peel test machine is designed strictly in accordance with the requirements of the new 2020 Chinese Pharmacopoeia "0952 Adhesion Force Determination Method". It adopts modern mechanical design concepts and ergonomic design principles, and uses advanced microcomputer processing technology for careful and reasonable design. It is a new generation of testing machine with novel design, convenient use, excellent performance, and beautiful appearance

Principle:

The sample is clamped between the two clamps of the fixture, and the two clamps move relative to each other. The force and displacement changes during the test process are collected through the force sensor located on the moving clamp and the built-in displacement sensor of the machine, and the 180 degree peel strength of the sample is calculated.

Product features

lThe instrument adopts high-precision ball screw, which drives smoothly and accurately; Adopting imported servo motors, with low noise and precise control

lLarge screen touch screen display and Chinese menu. Real time display of force time, force deformation, force displacement, etc. during the experiment; The instrument has strong data display, analysis, and management capabilities.

lAdopting a 24 bit high-precision AD converter (resolution up to 1/10000000) and high-precision weighing sensors, ensuring the fast and accurate collection of instrument force data

lAdopting a modular all-in-one printer, it is easy to install and has low malfunctions; Thermal printer.

lDirect measurement results: After completing a set of experiments, it is convenient to directly display the measurement results and print statistical reports, including mean, standard deviation, and coefficient of variation.

lHigh degree of automation: The instrument design adopts advanced domestic and foreign devices, with microcomputers for information sensing, data processing, and action control. It has the characteristics of automatic reset, data memory, overload protection, and fault self diagnosis.

Product parameters

lSpecification: 100N or 500N

lAccuracy: better than level 0.5

lDeformation resolution: 0.001mm

lTest speed: 1-500mm/min stepless speed regulation

lTravel: 400mm

lBoundary dimensions: 500mm (L) × 300mm (W) × 1150mm (H)

lPower supply: AC220V, 50HZ
