Automatic Ubbelohde Kinematic Viscosity Tester 1.8 KW

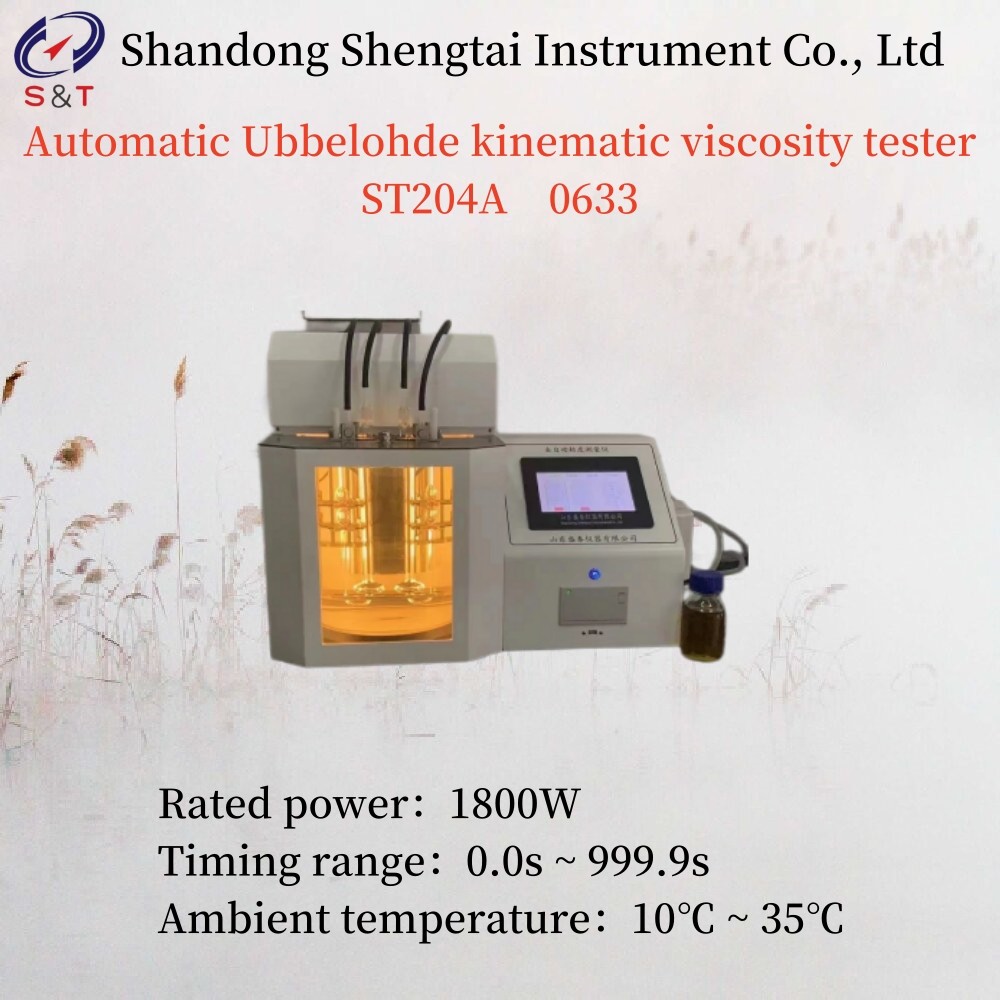

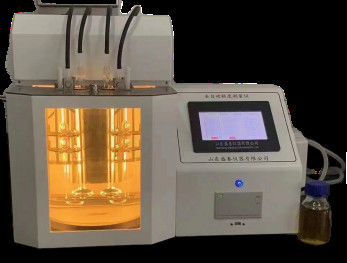

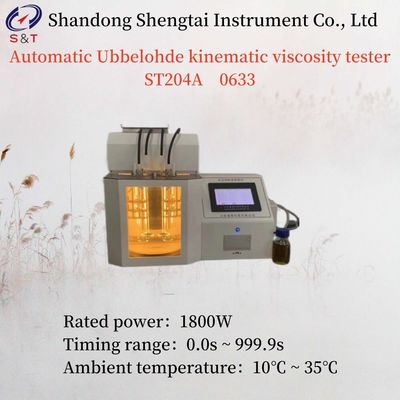

ST204A Automatic Ubbelohde kinematic viscosity tester

ST204A automatic Ubbelohde kinematic viscosity tester is suitable for the design and manufacture of the second method Ubbelohde capillary viscometer in general rule 0633 of The Chinese Pharmacopoeia in 2020 and <911> VISCOSITY-CAPILLARY VISCOMETER METHODS. This method is to measure the time required for a certain volume of liquid to flow through the capillary under the action of gravity by the relative method, so as to obtain the kinematic viscosity of the fluid.

ST204A automatic Uhler's kinematic viscometer has a series of automatic functions, such as automatic constant temperature, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, automatic drying, etc. The test can be completed by one sample injection and clicking start.

Main technical features

1.The display mode is a 7-inch color touch screen.

2.Adopt embedded system design, automatic detection and automatic printing in the whole test process.

3.The main parts and electronic components of the instrument are imported, with good stability.

4.The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.

5.The test results can be exported through the U disk.

6.Equipped with LED soft light, uniform lighting, easy to observe.

7.The test results can be stored;You can view the historical data.

8.Printed on the instrument, the bath contains automatic mechanical stirring

9.Date password setting function.

10,with RS232,RS485, Ethernet and other interfaces (optional).

11.The account can be divided into administrators and experimenters (optional).

Technical indicators

Packing list
