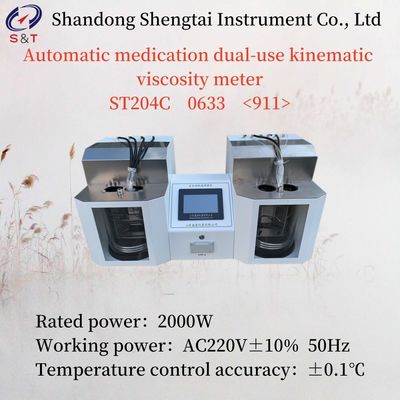

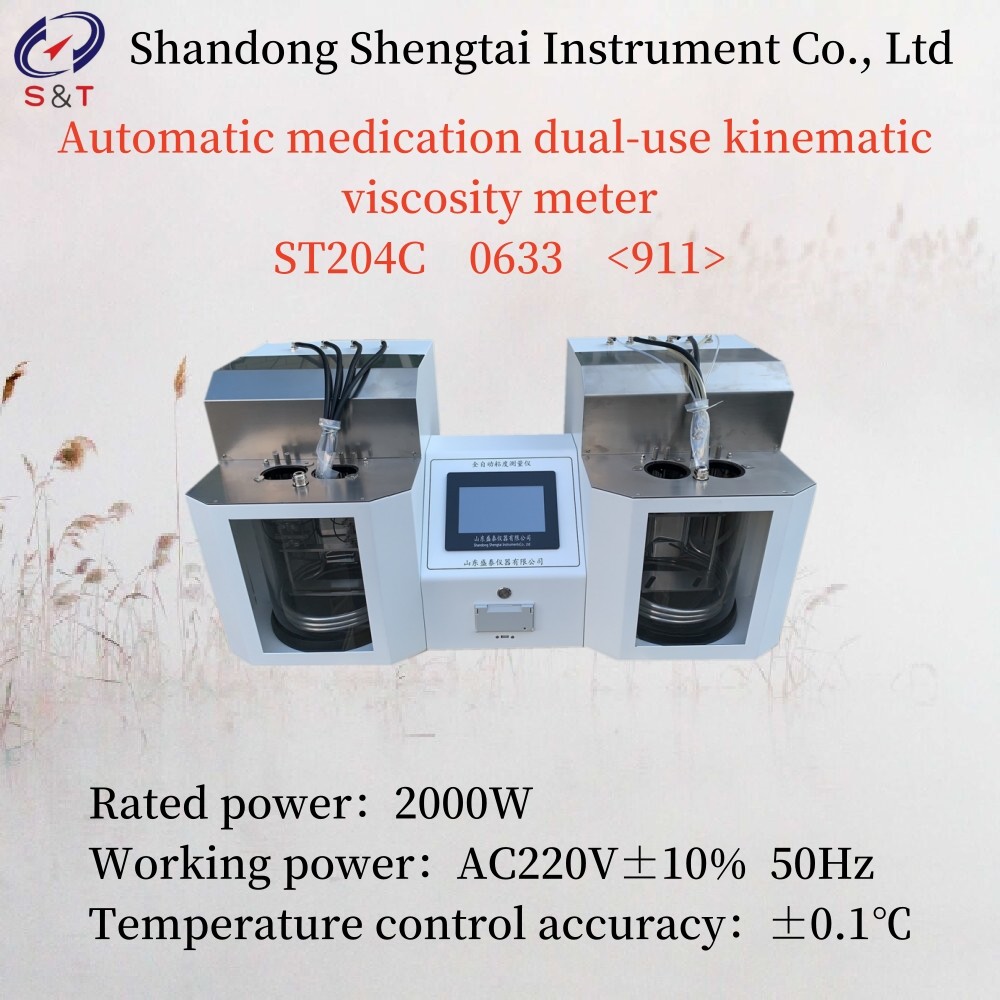

Rated Power 2000W Automatic Medication Dual Use Kinematic Viscosity Meter AC220V

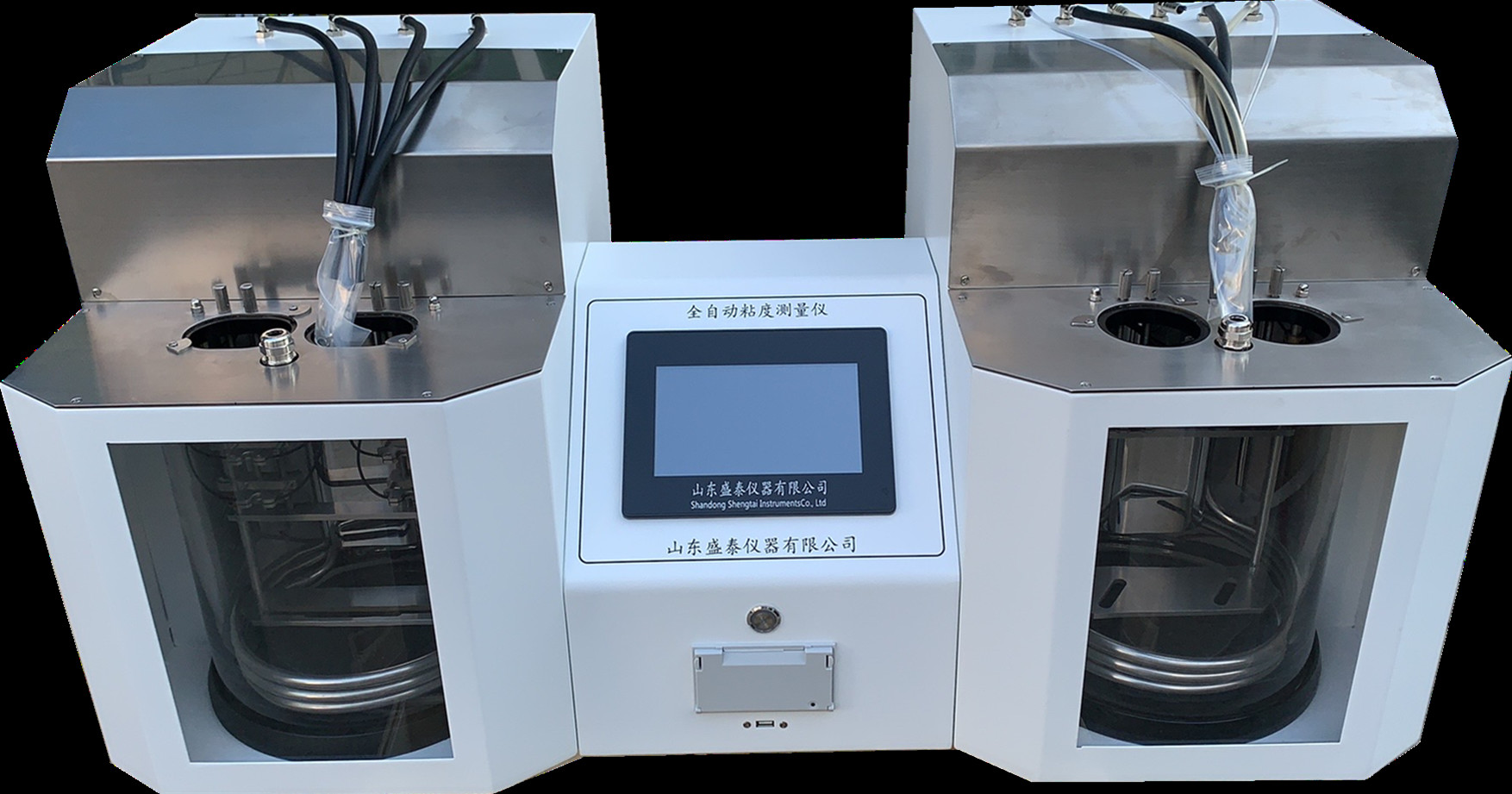

ST204C Automatic Pinstar & Ubbelohde kinematic viscometer tester

ST204C automatic Pinstar & Ubbelohde kinematic viscosity tester applies to the general principles of the 2020 "China pharmacopoeia" 0633 first flat capillary viscosity measurement method and second ubbelohde capillary viscometer method and <911> VISCOSITY-CAPILLARY VISCOMETER METHODS to determine the method to design and manufacture, this law is relatively method is used to measure a certain volume of liquid under the action of gravity through the time needed for capillary, for movement of the fluid viscosity.

ST204C automatic drug kinematic viscometer has a series of automatic functions, such as automatic constant temperature, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, automatic drying, etc. The test can be completed with a single injection and a click of starting.

Main technical parameters

● Compliance standard: general rule 0633 of Chinese Pharmacopoeia in 2020

● Temperature measurement range: room temperature - 100 ℃ (high temperature can be customized to 150 ℃ or low temperature 0 ℃);

● Temperature control accuracy: 0.1 ℃

● Display mode: human inductive touch screen

● Operation process: put the sample into constant temperature, detect, calculate, clean the viscosity tube, dry, print the report automatically

● Viscosity tube clamp: made of 304 stainless steel, high and low temperature resistant graphite sliding bearing device

● It is equipped with LED soft light, which is evenly filled and easy to observe.

● Measuring range: Ubbelohde viscosity measuring range: 0.6-1000mm2/s

Pinot viscosity measurement range: 0.6-17000mm2/s

● Timing range: 0.0s~999.9s;

● Timing accuracy: no more than ± 0.01% for 60min;

● Data memory: the memory of microcomputer instrument can be expanded to 16G

● Detection method: photoelectric sensor detection

● Result output: at the same time, it can be equipped with U disk output function, and output to PC terminal for long-term storage

● Remote upgrade: with TCP network transmission function, software remote upgrade can be carried out later

● Account management: according to the password setting account hierarchical management, can set the main account and sub-account

● Input extension: select barcode gun to scan and input sample information (optional)

● Data storage: U disk data export function

● Data sharing: access to the LIMS system of the group company (optional)

● Printer: equipped with micro printer

● Power consumption of the whole machine: not more than 2000W.

● Working power supply: AC220V ± 10%; 50Hz

● Size and weight: 850 * 380 * 550mm 38kg

Packing list
