0～700 Coning Degree Vaseline Automatic Cone Penetrometer Tester Resolution 0.01mm

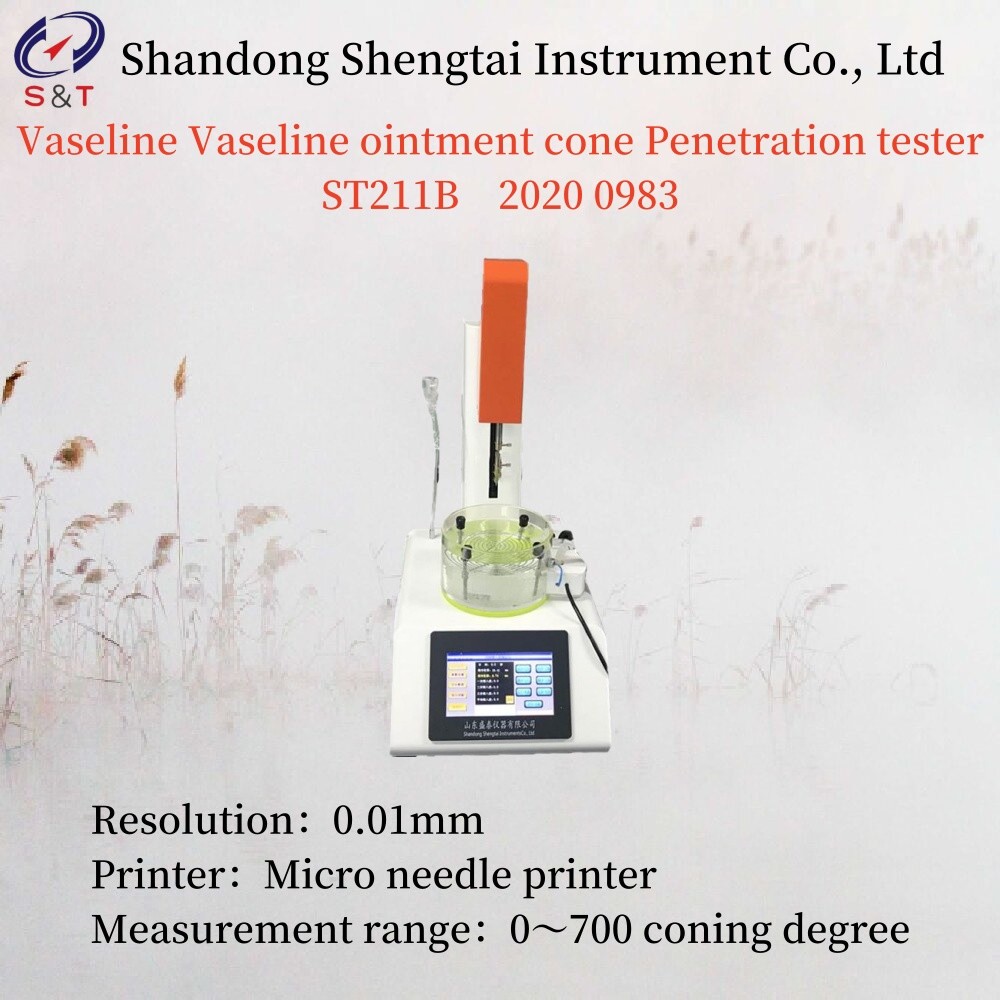

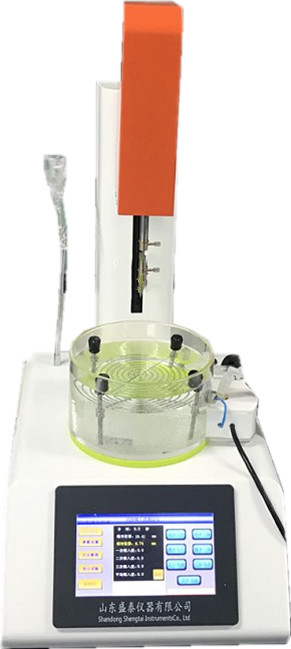

ST211B Vaseline Vaseline ointment cone Penetration tester

ST211B automatic yellow/white Vaseline ointment cone Penetration tester is designed and manufactured in accordance with the technical requirements and relevant regulations of pharmacopoeia 2020 0983 cone Penetration law and European Pharmacopoeia Method 2.9.9 - Measurement of Consistency by Penetration and is mainly suitable for testing the coning degree of Vaseline and ointment.

This instrument can also be used for the inspection of solid fine grain, powder, colloid, jelly and other materials, as well as food raw materials such as cheese, sugar gum, butter, wheat gluten, cream and fermentation, etc. It can be widely used in food industry, traffic highway engineering and other industrial sectors.

Main technical features

Meet the standard: Chinese Pharmacopoeia

1.Upgrade to 7-inch TFT color LCD display;

2.Constant temperature refrigeration: external semiconductor refrigeration.

3.Detection method: high-precision displacement sensor.

4.After upgrading, 199 sets of historical data can be stored for easy query;

At the same time, U disk output function

5.standard micro printer automatic measurement automatic printing

6.Hierarchical management of accounts

Main technical parameters and indicators

lStandard: Chinese Pharmacopoeia

lMeasurement range: 0～700 coning degree;

lConstant temperature refrigeration: emiconductor refrigeration

lResolution: 0.01㎜;

lPrecision of coning:±1 degree of coning;

lStandard cone: 1 cone: Ⅰ cone quality±0.05 g and 102.5 g supporting cone rod quality 47.5 g - 0.05 g;

lCone: 2 # Ⅱ cone quality± 0.025 g and 22.5 g supporting cone rod quality of 15 g±0.025 g

lCone: 3 # Ⅲ cone, cone screw 9.38g±0.025 g total quality

lOthers: equipped with cold light source, easy to use and operate.

lStorage: Experimental results can be stored in 199 groups of historical data for easy query;

lResult output: At the same time can be equipped with U disk output function, output to the PC side for long-term storage

lOutput format: The output format of the USB flash disk is CSV or Excel.

lData protection: With date password setting function.

lStandard printing: standard printing with micro printer automatic measurement automatic thermal sensitive printing

lRemote upgrade: With TCP network transmission function, software remote upgrade can be carried out later

lData management: LIMS system can be connected to

lAccount management: According to the password to set up the account management layer, can set up the total account and sub-account.

1.The mass of 1 # cone I # cone is 102.5g±0.05g, and the mass of matching cone rod is 47.5g±0.05g;

2.The mass of No. 2 cone and No. 2 cone is 22.5g±0.025g, and the mass of matching cone rod is 15g±0.025g

3.The total mass of No. 3 cone and No. 3 cone and taper rod is 9.38g±0.025g

4.Volume of sample box 1: 270 ml

5.Volume of sample box 2: 45 ml

6.Volume of sample box 3: 5ml

Packing list
