Power 850W Medical Drug Stability Test Chamber Internal Volume 250L

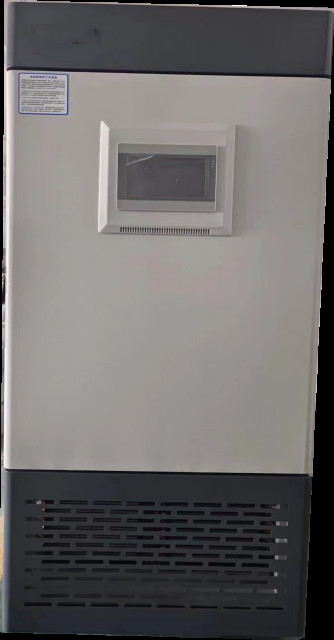

ST301 Drug Stability test chamber

ST301 Drug Stability test chamber is used in the pharmaceutical industry for drug stability testing to determine the drug's shelf life and influencing factors. The biggest advantages of this series of products include ensuring stable and reliable testing results, precise temperature and humidity conditions, and an ultra long service life. The product meets the long-term, accelerated, and intermediate tests specified in the national pharmacopoeia, FDA, ICH, and other relevant standards, as well as the low humidity test at 40 °C and 20% R.H for special drugs such as intravenous infusion.

Performance technical parameters

● Internal volume: 250L (other volumes can be customized)

● Temperature control range:0～65 ℃, temperature fluctuation:±0.5 ℃, temperature uniformity:±1.0℃;

● Humidity control range:20～90% RH, humidity uniformity:±3.0% RH;

● Working hours: 1～9999h

● Temperature and humidity control:balanced temperature and humidity control method

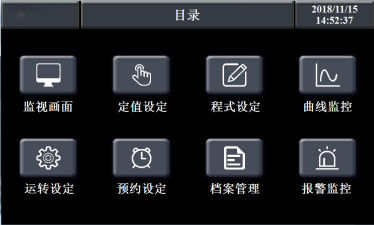

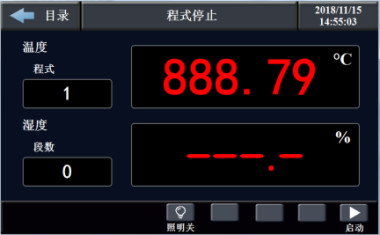

Temperature and humidity display: 7-inch color touch screen

● Permission settings: Level 3 permissions: operator, administrator, super user;

● Data management: operation records, alarm records, historical records, etc

● Humidity sensor: Original imported Samsung capacitive humidity sensor, direct detection, no maintenance required;

● Refrigeration compressor: Original imported double fully enclosed compressor, long service life, low noise; One backup, one use, or alternate operation

● Data printing: Standard needle printer, capable of printing equipment model and number, and able to print temperature and humidity values;

● Size: Studio size: 550 * 500 * 890mm

● External dimensions: 740 * 850 * 1680mm

● Power: 850W

● Data storage: Internal storage (the controller can store electronic text data for more than 5 years); It is also possible to record and store data through an external PC computer.

● On site alarm: On site temperature and humidity deviation sound and light alarm, independent over temperature alarm;

● Box material: The inner liner material is mirror stainless steel 304, and the outer shell material is high-quality steel plate spray coating;

● Double door structure: Equipped with a tempered glass door for easy observation; The outer door is fully enclosed, shielding from the influence of external light;

● Dual protection: equipped with dual insurance to prevent dry burning protection; Equipped with an independent over temperature protection system that can automatically cut off the power supply;

● Safety devices: compressor overheating, fan overheating, overheating, compressor overpressure, overload protection;

● Installation power supply: AC 220V±10% 50HZ;

Environmental temperature: room temperature＋5 ～ 35 ℃

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
