laboratory Multi Link Petroleum Dew Instrument GB/ T260

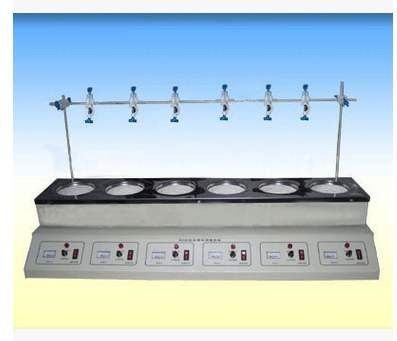

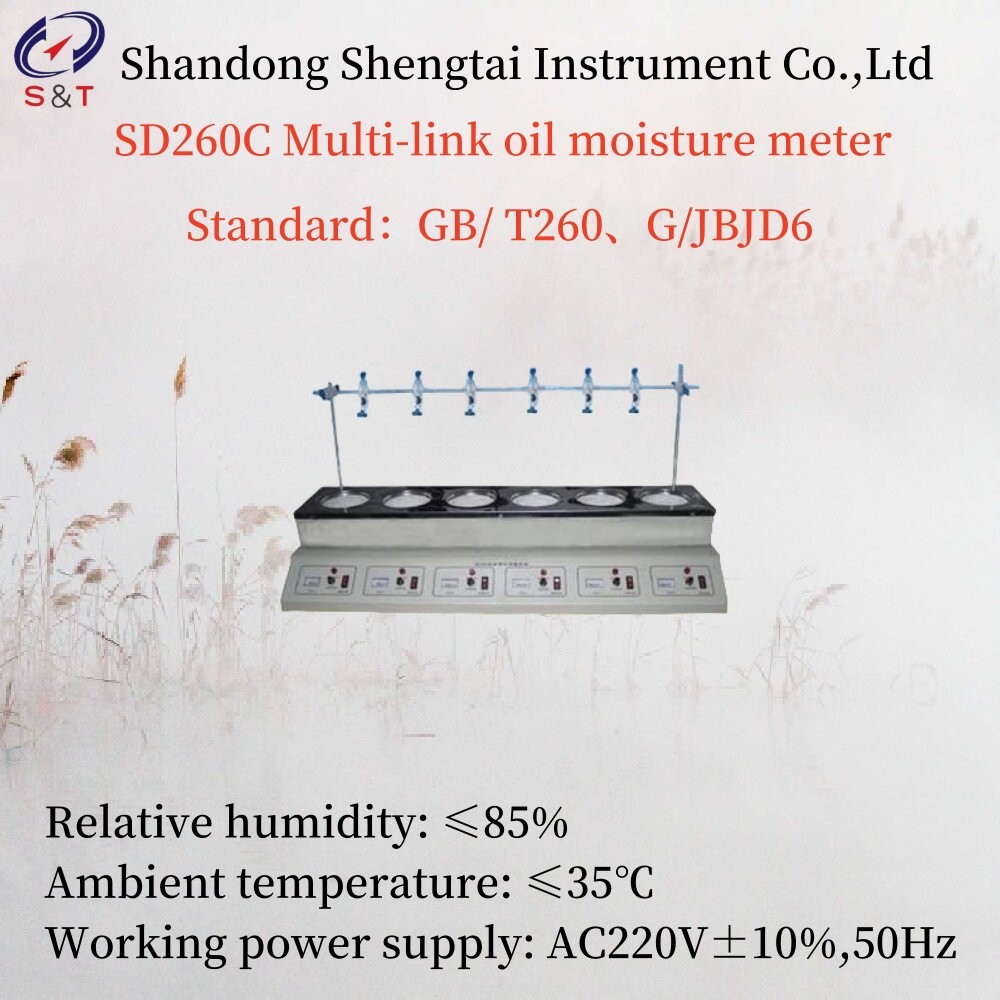

SD260C Multi-link oil moisture meter

SD260C multi-coupling oil moisture meter is designed and manufactured according to the requirements of GB/ T260 "Moisture Determination Method of Petroleum Products" of the People's Republic of China. It conforms to the requirements of G/JBJD6 "Technical Conditions of Moisture Tester of Petroleum Products".

This instrument is suitable for the determination of moisture content in petroleum products according to GB/T260 standard test method, also suitable for the determination of moisture content in grease according to GB/T512 standard test method for the determination of moisture content in grease.

I.Main technical features

1. The design of the instrument fully conforms to the requirements of GB/ T260, G/JBJD6 standard.

2. the test vessel holder design is reasonable, the condensation pipe installation, disassembly is convenient.

3. 4 groups of tests can be carried out simultaneously, and external circulation of cooling water is required.

II. Main technical parameters and indicators

1. Working power supply: AC 220V±10%, 50Hz.

2. Heating power of electric furnace: 6000W.

3. Ambient temperature: ≤35℃.

4. Relative humidity: ≤85%.

5. Power consumption of the whole machine: no more than 6500W.

Reagents:

Solvent (initial distillation point not less than 50 degrees DC gasoline)

Oleic or stearic acid

Anhydrous calcium chloride: chemically pure

Volume: 500ml or 1000ml

General standard 500ml.

II. Main technical parameters and indicators

1. Working power supply: AC 220V±10%, 50Hz.

2. Heating power of electric furnace: 6000W.

3. Ambient temperature: ≤35℃.

4. Relative humidity: ≤85%.

5. Power consumption of the whole machine: no more than 6500W.

Reagents:

Solvent (initial distillation point not less than 50 degrees DC gasoline)

Oleic or stearic acid

Anhydrous calcium chloride: chemically pure

Volume: 500ml or 1000ml

General standard 500ml.
