Heating Power 60w Diesel Engine Laboratory Automatic Aniline Point Tester Storage Records 200

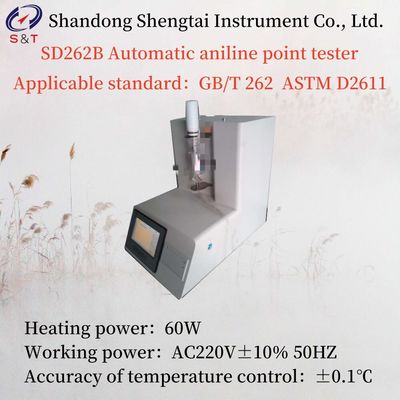

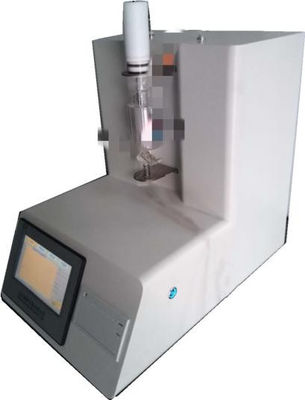

SD262B Automatic aniline point tester

SD262B Automatic aniline point tester is designed and manufactured according to the requirements of national standard GB/T262 "Aniline point determination method of petroleum products" and ASTM D611. It is suitable for the determination of aniline point of light colored petroleum products and dark colored petroleum products.

Aniline point is the lowest temperature at which petroleum products dissolve into a single liquid phase with aniline in equal volume.

ASTM D611 Light Petroleum Products Aniline Point Tester

ASTM D611 Automatic Petroleum Product Aniline Point Tester For Sale

Diesel Laboratory ASTM D611 Fully Automatic Oil Aniline Point Tester

ASTM D611 Automatic Petroleum Products Aniline Point Tester

Performance characteristics:

1.7-inch color LCD touch screen, stylish and beautiful.

Chinese man-machine interface, clear and intuitive.

2. The photoelectric sensor imported from abroad is adopted, and the test results are accurate and repeatable.

3. With over-temperature alarm function, the test sample temperature exceeds 170℃, the buzzer will automatically alarm and stop the test.

4. Simple operation, one key start, the test process will be completed automatically.

5. The host adopts microprocessor program control, the test process automatically heating, automatic mixing, aniline point automatic recognition, automatic storage.

6. Automatic printing, automatic stop after the test.

7. the experimental results can be exported through the U disk, stored in the computer can be compared for many times

★8.with date password setting function.

Technical parameters:

Temperature control range: room temperature～200℃

Temperature control accuracy:±0.1℃.

Heating method: electric heating rod

Heating power: 60W

Stirring mode: motor driven flexible shaft stirring

Detection method: photoelectric sensor

Stored records: 200

Print mode: Micro printer

Power supply: AC 220V±10% 50Hz

Storage: 199 sets of historical data can be stored for easy query;

Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage

Output format: The output format of the result USB flash disk is CSV or EXCEL.

★ Data protection: with date password setting function.

★ Standard printing: standard micro printer automatic measurement automatic thermal printing(selection function)

★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade

★ Data management: can be connected to LIMIS system(selection function)

★ Data memory: microcomputer instrument memory can be expanded to 16G.(selection function)
