Power For Stirrer 6W Petroleum Kinematic Viscometer SD265B Rotating Speed 1200RPM

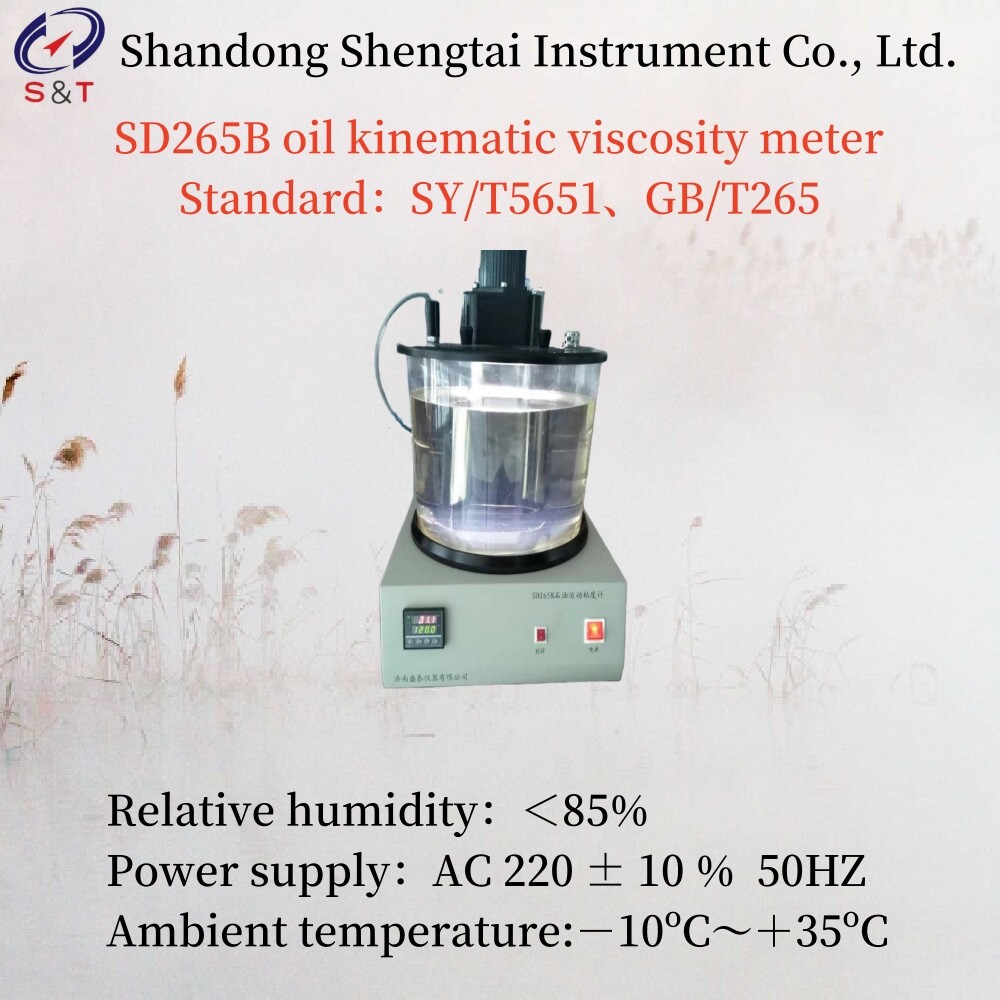

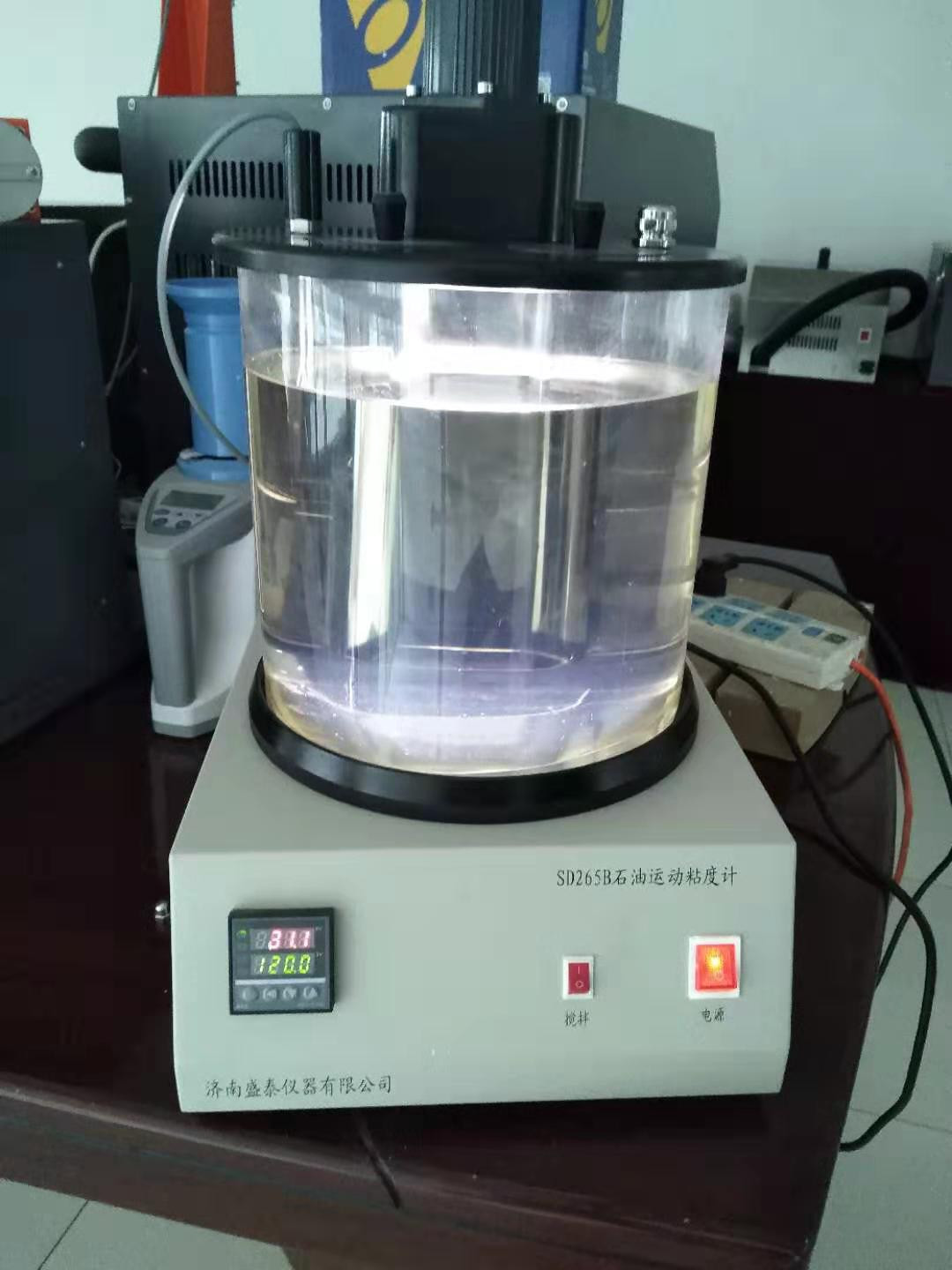

SD265B oil kinematic viscosity meter

SD265B oil kinematic viscosity meter manufacturing in line with the law of the People's Republic of China industry standard SY/T5651 the kinematic viscosity of petroleum products tester technical conditions of specified requirements, applicable to according to the standard of the People's Republic of China GB/T265 the kinematic viscosity of petroleum products determination method and dynamic viscosity calculation method "regulation, the determination of liquid petroleum products (Newton liquid) at a constant temperature under the condition of kinematic viscosity.

High Precision Double Layer Kinematic Viscosity Meter

SD265B Asphalt Kinematic Viscosity Tester

SD265B Asphalt Kinematic Viscosity Tester with High Temperature(Capillary Viscometer Method)

Oil Kinematic Viscosity Unit with Standard Capillary Viscometer

I. Main technical features

1. The instrument adopts the form of all-in-one machine, and the control switch adopts the form of light touch key. It has the advantages of novel design, compact structure, beautiful and generous.

2. Adopt intelligent digital display temperature controller, rapid temperature control, quick response, small overshoot, temperature control accuracy up to ±0.1℃.

3. the use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.

Two groups of tests can be carried out simultaneously.

II. Main technical parameters and indicators

1. Power supply: AC 220 ± 10 % 50 Hz

2. Heating power:1000W(auxiliary heating), 600W(temperature control heating)

3. Power for stirrer: 6W, rotating speed:1200RPM

4. Temperature range: room temperature～100 ºC

5. Temperature control accuracy: ±0.01ºC

6. Timer: 0.0s～999.9s

7. Constant temperature bath: 20L, double shall structure

8. Ambient temperature: －10ºC～＋35ºC

9. Relative humidity: ＜85%

10.Maximum power consumption: 1800W

11.Capillary viscometer tubes(Pinkevitch viscometer): 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm

12. Dimension: 530mm×400mm×670mm Net weight: about 42Kg

If the kinematic viscosity is measured at 100 degrees, transformer oil and stopwatch are required

Packing list:
