Temp Control Accuracy ±0.1℃ Petroleum Kinematic Viscosity Tester Power 1800w

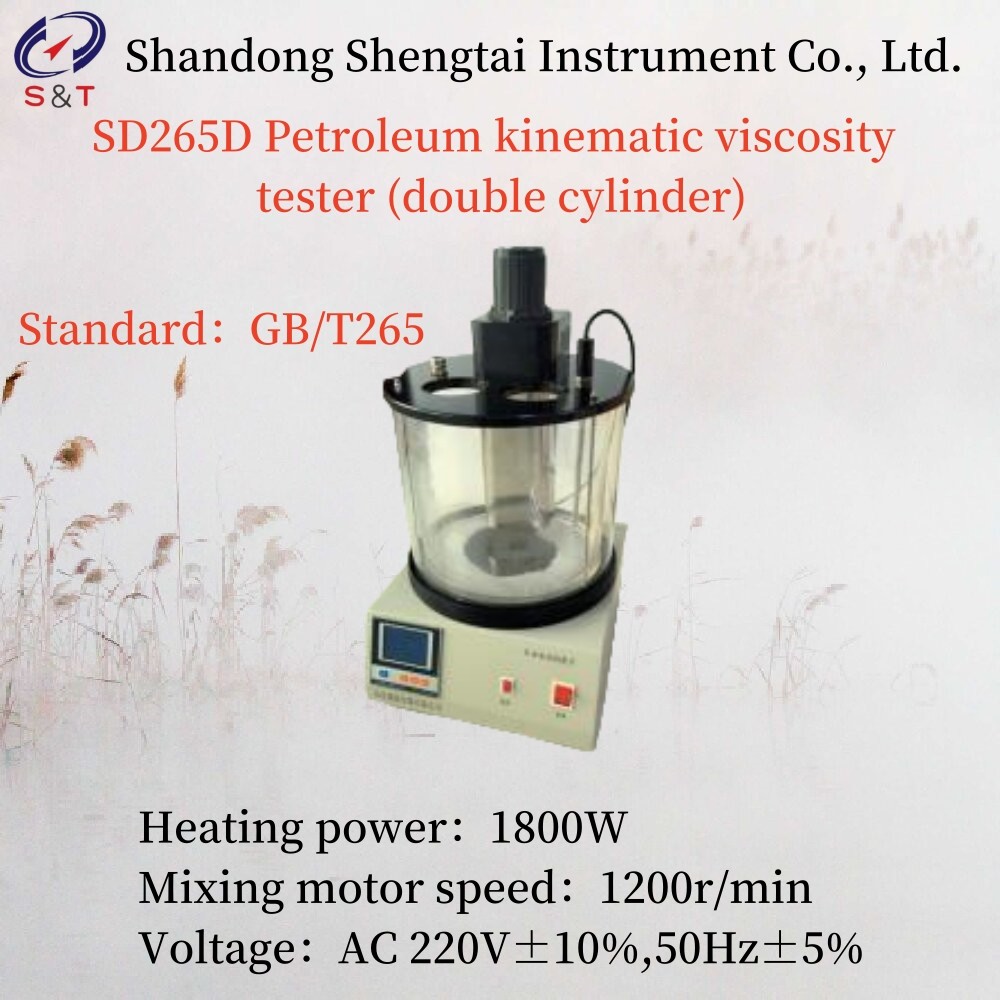

SD265D Petroleum kinematic viscosity tester (double cylinder)

SD265D manual oil kinematic viscosity meter /tester manufacturing applicable to according to the standard of the People's Republic of China GB/T265 the kinematic viscosity of petroleum products determination method , in line with standard astm d445 the kinematic viscosity of petroleum products tester technical conditions of specified requirements,and dynamic viscosity calculation method "regulation, the determination of liquid petroleum products (Newton liquid) at a constant temperature under the condition of kinematic viscosity.

Kinematic Viscosity Tester for Petroleum Products Kinematic viscometer viscosimeter

double Cylinder GB/T265 Oil Kinematic Viscosity Bath

I. Main technical features

1. Adopt hard glass cylinder and special plexiglass insulation coat cylinder (called double cylinder), with good insulation performance and clear observation of sample.

2. Desktop and all-in-one machine design is adopted, the instrument has good integrity and is convenient to use. 2 groups of experiments can be done simultaneously.

3, the use of electric mixing device, bath temperature uniform

4, display mode using small blue liquid crystal display temperature control stability is good

II. Main technical parameters and indicators

1.working power supply: AC 220V±10%,50Hz.

2.heating power: 1800W (temperature control heating).

3.stirring motor: power 6W;

The speed of 1200 r/min.

4. temperature range: room temperature～100℃.

5. temperature control accuracy:±0.1℃.

6.constant temperature bath: inside and outside two layers of cylinder (double cylinder).

7.ambient temperature:－10℃～＋35℃.

8.relative humidity:＜85%.

9.temperature sensor: high precision thermistor.

(This product is generally used to measure the viscosity of 100 degrees)

Packing list
