Ac220v±10% 50hz Petroleum Cold Filter Point Meter Consumption No More Than 1000w

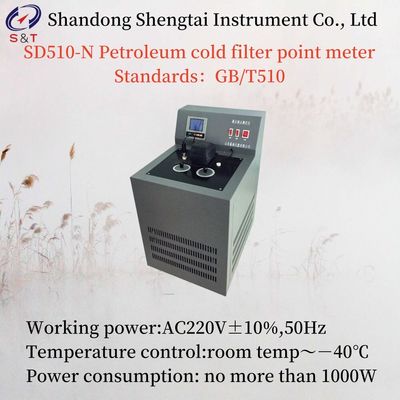

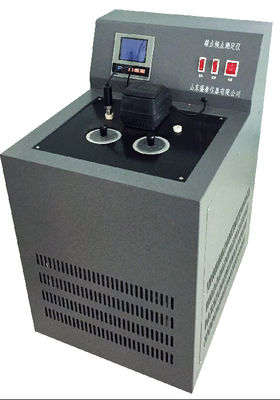

SD510-N Petroleum cold filter point meter

SD510-N Condensation point meter It is designed and manufactured in accordance with the requirements specified in the standard GB/T 510 of the People's Republic of China, and is suitable for determining the Condensation point of sample products according to the methods specified in the above two standards.

Performance characteristics

1.The instrument adopts a compressor for refrigeration, with fast cooling speed and long service life.

2.The display mode adopts small liquid crystal display, with good temperature control stability.

3.Two sets of tests can be conducted simultaneously, with a single slot and two holes, and the cooling speed is fast.

4.Equip a condensation point test tube to measure the condensation point value of oil products.

Main technical specifications and parameters

1.Working power supply:AC220V±10%,50Hz

2.Cold bath temperature control: room temperature～－40 ℃

3.Refrigeration system: a new type of refrigeration compressor.

4.Ambient temperature:≤ 30 ℃.

5.Relative humidity: ≤ 85%.

6.Power consumption: no more than 1000W

Consumables required: alcohol.

Instrument size: 380 * 480 * 580mm Weight: 40kg

SD510-N Petroleum Condensation Point Tester Matched with a Condensation Point Test Tube Condensation Point Thermometer Conforming to GB/T51

Details of supporting petroleum product Condensation point tester

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
