Resolution 0.01mm Grease Cone Penetration Tester Power 80w Standard Needle 2.5±0.05g

  • Resolution 0.01mm Grease Cone Penetration Tester Power 80w Standard Needle 2.5±0.05g
  • Resolution 0.01mm Grease Cone Penetration Tester Power 80w Standard Needle 2.5±0.05g
Place of Origin China
Brand Name Shandong Shengtai Instrument
Certification ASTM D217、ASTM D1403
Model Number SD-2801A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM D217、ASTM D1403、GB/T269 Measuring Range 0～700 Cone Degree
The Time Error Less Than±0.1 Seconds Coning Accuracy ±1 Coning Degree
Instrument Size 340*282*515mm Weight 11kg
Timing Controller Time Can Be Set According To Their Own Needs, The Time Error Is Less Than±0.1 Seconds Resolution 0.01mm
Temperature Control Accuracy 25±0.1ºC (Note:The Ambient Temperature Shall Not Exceed 20 ºC) Temperature Control Mode High Accuracy Digital Temperature Controller
Constant Temperature Bath Hard Glass Bath Working Power Supply 80W
Standard Needle 2.5±0.05g Stirring Automatically Stirred By A Magnetic Stirrer
Standard Cone 102.5±0.05g Needle Holder It Can Be Adjusted Roughly And Finely. Convenient Toad Just And Exact To Aim The Sample
Others Equipped With A Cold Light Source And A Magnifier; Convenient For Operation And Observation
Highlight

grease cone penetration tester

,

80w grease cone penetration tester
Leave a Message
Product Description

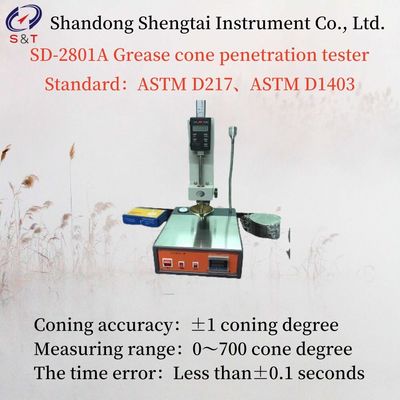

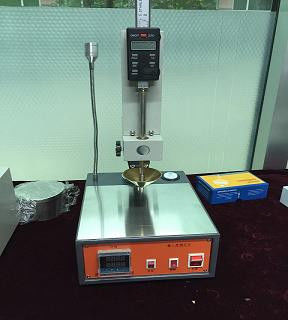

SD-2801A Grease cone penetration tester

SD-2801A cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the People's Republic of China standard GB/T269 "Grease and petroleum grease cone penetration determination method". It is mainly suitable for testing the cone penetration of grease.

The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.

Standard: ASTM D217 ASTM D1403

Standard Lubricating Grease Cone Penetration Tester SD2801A

Cone Penetrometer ASTM D217Lubricating Grease Cone Penetration Tester

ASTM D217Lubricating Grease Cone Penetration Tester

Lab ASTM D217Lubricating Grease Cone Penetration Testing Equipment

Standard Penetration Test ASTM D217 Dynamic Grease Cone Penetrometer

Resolution 0.01mm Grease Cone Penetration Tester Power 80w Standard Needle 2.5±0.05g 0

I. Main technical features

1. The use of digital display to display the taper value, intuitive and eye-grabbing.

2. Digital display of cone entry time control device.3, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

II. Main technical parameters and indicators

Measuring range 0～700 cone degree
The time error Less than±0.1 seconds;
Coning accuracy ±1 coning degree
Standard National standard GB/T269
Instrument size: 340*282*515 Weight:11kg





Timing controller Time can be set according to their own needs, the time error is less than±0.1 seconds
Resolution 0.01mm
Temperature control accuracy 25±0.1ºC (Note:The ambient temperature shall not exceed 20 ºC)
Temperature control mode High accuracy digital temperature controller
Constant temperature bath Hard glass bath
Working power supply 80W
Standard needle 2.5±0.05g
Stirring automatically stirred by a magnetic stirrer
Standard cone 102.5±0.05g
Needle holder It can be adjusted roughly and finely. Convenient toad just and exact to aim the sample
Others Equipped with a cold light source and a magnifier; Convenient for operation and observation

Resolution 0.01mm Grease Cone Penetration Tester Power 80w Standard Needle 2.5±0.05g 1

Packing list:

S/N Name Unit Quantity Remarks
1 Instrument host set 1
2 Standard cone piece 1
3 Connecting rod piece 1
4 Sample holder piece 1
5 Fuse 5A(∮5×20) piece 1
6 Power cord(250V 6A) piece 1
7 instructions copy 1
8 Certificate warranty card copy 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
