Power Ac220±10%V 50hz Semi Automatic Open Flash Point Tester Ambient Temp －10～50ºC

  • Power Ac220±10%V 50hz Semi Automatic Open Flash Point Tester Ambient Temp －10～50ºC
  • Power Ac220±10%V 50hz Semi Automatic Open Flash Point Tester Ambient Temp －10～50ºC
Place of Origin China
Brand Name Shandong Shengtai Instrument
Certification GB/T3536-2008、GB/T1671-2008
Model Number SD3536
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC(220±10%)V,50Hz Heating Device Electric Furnace Heating, No Flame, Explosion-proof, Power 0-600W Continuous Adjustable
Temperature Control Room Temperature～400℃, Grading 2℃, Technical Conditions In Line With The Technical Conditions Of Liquid Thermometer Used In Petroleum Products Test GB/T514 Provisions Temperature Display LED Screen Shows Temperature Parameters. The Range Is 0ºC～400ºC, Accuracy Is 0.1ºC
Ignition Device (1) Ignition Source: Gas (or Other Civil Combustible Gas, The Same Below) (2) Nozzle Aperture: 0.6 〜 0.8 Mm Temperature Sensor RTD, PT100
Ambient Temperature (－10～50)ºC Relative Humidity ≤85%
Maximum Power Consumption 650W Package Size 380mm * 290m * 260mm
Weight 10kg
Highlight

semi automatic open flash point tester

,

220v 50hz open flash point tester
Leave a Message
Product Description

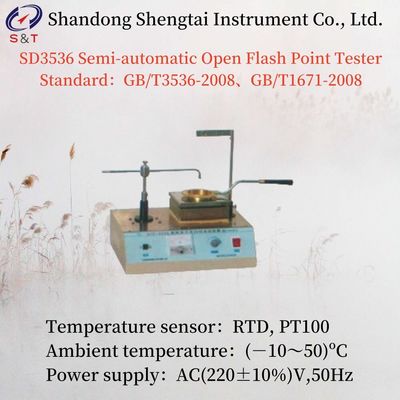

SD3536 Semi-automatic Open Flash Point Tester

SD3536 Semi-automatic open flash point tester is in according to the standard of the People's Republic of China GB/T3536-2008 "petroleum products determination of flash point and burning point Cleveland KaiKouBei act the requirements stipulated in the design and manufacture, is suitable for the determination of the fuel oil and oil products outside the mouth flash point is below 79℃, flash point and burning point also support GB/T1671-2008 plasticizer on the determination of flash point.

Semi-automatic Open Flash Point Tester

Semi-Automatic Cleveland Open Cup Flash Point Tester

Semi-Automatic Cleveland Open Cup Flash Point Tester GB/T3536-2008

SD3536Semi-automatic Cleveland Open-Cup Flash Point Tester

Power Ac220±10%V 50hz Semi Automatic Open Flash Point Tester Ambient Temp －10～50ºC 0

Main technical parameters and indexes

Power supply AC(220±10%)V,50Hz
Heating device electric furnace heating, no flame, explosion-proof, power 0-600W continuous adjustable
Temperature control room temperature～400℃, grading 2℃, technical conditions in line with the technical conditions of liquid thermometer used in petroleum products test GB/T514 provisions
Temperature display LED screen shows temperature parameters. The range is 0ºC～400ºC, accuracy is 0.1ºC
Ignition device

(1) Ignition source: gas (or other civil combustible gas, the same below)

(2) Nozzle aperture: 0.6 〜 0.8 mm
Temperature sensor RTD, PT100
Ambient temperature (－10～50)ºC
Relative humidity ≤85%
Maximum power consumption 650W
Package size: 380mm * 290m * 260mm Weight: 10kg

Power Ac220±10%V 50hz Semi Automatic Open Flash Point Tester Ambient Temp －10～50ºC 1

Packing List

S/N NAME UNIT Quantity Remarks
1 Open flash point meter set 1
2 Special brass oil cup piece 1
3 Special thermometer piece 1
4 instructions copy 1
5 Certificate of conformity warranty card copy 1



Customers need to provide their own: coal gas source and coal gas source required pressure reducing valve



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
