Heating Power 800w Grease Drop Point Tester Oil Bath Mixing Motor Speed 120r/Min

  • Heating Power 800w Grease Drop Point Tester Oil Bath Mixing Motor Speed 120r/Min
  • Heating Power 800w Grease Drop Point Tester Oil Bath Mixing Motor Speed 120r/Min
Place of Origin China
Brand Name Shandong Shengtai Instrument
Certification GB/T4929、ISO2176、ASTMD566、TP31
Model Number SD-4929A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC 220 V±10% 50 Hz Grease Cup Made Of Chrome Plated Brass. Its Inner Diameter Is About 9.92 Mm And The Diameter Of Orifice For Dropping Oil Is 2.8 Mm. The Height Of The Cup Is About 12 Mm.
Test Tube A Tube Made Of Heat-resistant Glass With Rim. Its Inner Diameter Is 11.1 Mm To 12.7 Mm. There Are Three Indentations At About 19 Mm From The Bottom, Equally Spaced On The Circumstance. These Indentations Are Used For Supporting The Grease Cup Thermometer Room Temperature～300 ºC, Scale Value Is 1ºC. The Measuring Range Of The Instrument Is To 270℃
Cylinder Beaker With Volume Of 600ml Stirring Motor Rotating Speed 60 RPM
Metal Bath Heating Power 800W Relative Humidity ≤85%
Mixing Motor Speed 120r/min Temperature Regulation Mode Temperature Regulation By Stepless Solid State Voltage Regulator
Dimension 300mm×3600mm×500mm Weight 10kg
Highlight

800w grease drop point tester

,

oil bath grease drop point tester

,

120r/min grease drop point tester
Leave a Message
Product Description

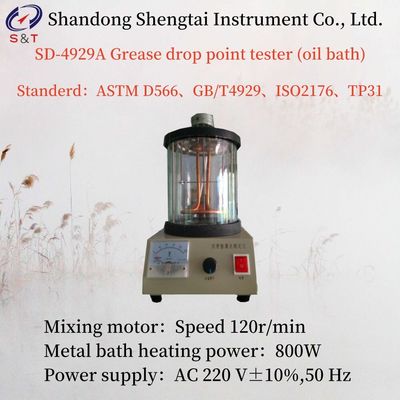

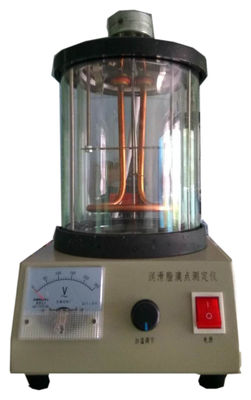

SD-4929A Grease drop point tester (oil bath)

SD4929A grease drop point tester is designed and manufactured according to the requirements of the People's Republic of China standard GB/T4929 "Grease drop point determination method". It is suitable for testing the drop point of grease according to the GB/T4929 standard.

Purpose: This instrument is suitable for measuring the drop point of grease according to GB/T4929, ISO2176, ASTMD566, TP31, "Grease drop point determination method".

Portable Lubricating Grease Oil Bath Dropping Point Tester ASTM D566

Certified Laboratory ASTM D566 Lubricating Grease Dropping Point Apparatus

Heating Power 800w Grease Drop Point Tester Oil Bath Mixing Motor Speed 120r/Min 0

Technical performance:

Power supply AC 220 V±10% 50 Hz
Grease cup Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.
Test tube A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup
Thermometer Room temperature～300 ºC, scale value is 1ºC. The measuring range of the instrument is to 270℃
Cylinder beaker with volume of 600ml
Stirring motor Rotating speed 60 RPM
Metal bath heating power 800W
Relative humidity ≤85%
Mixing motor Speed 120r/min
Temperature regulation mode Temperature regulation by stepless solid state voltage regulator
Dimension:300mm×3600mm×500mm Weight: 10kg

Provided by the customer: heating medium (silicone oil)

Heating Power 800w Grease Drop Point Tester Oil Bath Mixing Motor Speed 120r/Min 1

Packing List

No Name Quantity
1 Lubricating grease drop point tester 1
2 Grease cup 2
3 vitro 2
4 Rubber plug 2
5 Guide ring 2
6 Thermometer (－5 to 300℃, index value 1℃) 2
7 Metal bar 1
8 instructions 1
9 Certificate of conformity warranty card 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
