4 Holes Copper Strip Corrosion Tester For Petroleum Products Power Ac(220±10%)V 50hz
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC(220±10%)V 50Hz | Temperature Sensor | PT100 |
|---|---|---|---|
| Standard | ASTM D130、GB/T5096、ISO2160、IP154 | Temperature Range | (room Temp～200)℃, Set At Will |
| Temperature Control Accuracy | ±0.1℃ | Temperature Display Mode | LED |
| Temperature Control Heating Power | 600W | Auxiliary Heating Power | 1000W |
| Holes | 4 | Ambient Temperature | Room Temperature～35℃ |
| Relative Humidity | ≤85% | Maximum Power Consumption | 2100W |
| Instrument Size | 380 * 450 * 580mm | Weight | About 23kg |
| Highlight | 4 holes copper strip corrosion tester,petroleum products copper strip corrosion tester |
||
Product Description

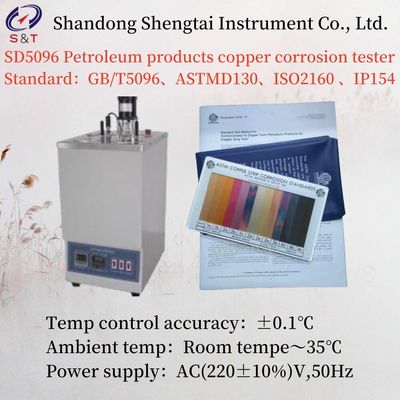

SD5096 Petroleum products copper corrosion tester
SD5096 petroleum products copper corrosion tester is according to the standard of the People's Republic of China GB/T5096 equivalent ASTMD130 copper corrosion test method of the petroleum products the requirements stipulated in the design and manufacture, apply to specified by the standard test method, evaluation of aviation gasoline, aviation turbine fuel, motor gasoline, farm tractors, washing solvent, kerosene distillate fuel and lubricating oil and other petroleum products for copper corrosion degree.
Oil Measuring Instrument Copper Strip Corrosion Tester ASTM D130 Copper Strip Corrosion Tester Anti-corrosive Tester
Petroleum products copper corrosion tester for Turbine oil test instrument ASTMD130 copper corrosion test method
ASTM D130Copper Test Strip Corrosion Colorimetric Board Use in Bomb LGP Analyze Copper Corrosion Degree Tester
Copper Strip Corrosion Tester for Petroleum Products
ASTM D130 Petroleum Products Copper Strip Corrosion Tester by Copper Strip Tarnish
ASTM D130 Copper Corrosion Degree of Petroleum Products Tester/Oil Copper Corrosion Tester
I.Main technical features
1.Adopt digital temperature controller, heater and electric stirrer to form a constant temperature bath, and the temperature in the bath is uniform;
With a timer, used for sample test control time setting and automatic timing, when it will also alarm prompts.
2.The instrument has 4 sample test holes.
II.Main technical specifications
| Power supply | AC(220±10%)V,50Hz |
| Temperature sensor | PT100 |
| Standard | ASTM D130,GB/T5096,ISO2160,IP154 |
| Temperature range | (room temp～200)℃, set at will |
| Temperature control accuracy | ±0.1℃ |
| Temperature display mode | LED |
| Temperature control heating power | 600W |
| Auxiliary heating power | 1000W |
| Time controlling range | 0.01 seconds to 99 hours and 99 minutes; Any setting |
| Holes | 4 |
| Time display | LED |
| Sample testing positions | Four positions |
| Ambient temperature | Room temperature～35℃ |
| Relative humidity | ≤85% |
| Maximum power consumption | 2100W |
| Instrument size: 380 * 450 * 580mm weight:about 23kg | |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Test tube bracket | 2 | piece | |
| 3 | Copper strip | 6 | piece | |
| 4 | test tube | 6 | piece | |
| 5 | Test bomb | 2 | piece | |
| 6 | Observation tube | 1 | piece | |

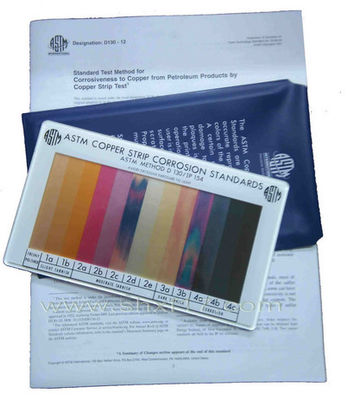

| 7 | Color comparison board imported from the United States | 1 | piece | |
| 8 | power cord | 1 | piece | |
| 9 | Fuse tube | 1 | piece | 10A |
| 10 | instruction manual | 1 | copy | |
| 11 | Packing list | 1 | copy | |
| 12 | Certificate warranty card | 1 | copy |
Provided by the customer: heating medium sandpaper grinder
