Heating 1000w Oil Distillation Apparatus Petroleum Distillation Apparatus Ac(220±10%)V 50hz

  • Heating 1000w Oil Distillation Apparatus Petroleum Distillation Apparatus Ac(220±10%)V 50hz
  • Heating 1000w Oil Distillation Apparatus Petroleum Distillation Apparatus Ac(220±10%)V 50hz
Place of Origin China
Brand Name Shandong Shengtai Instrument
Certification GB/T6536、GB/T7534、
Model Number SD6536
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC(220±10%)V,50Hz Heating Power Of Electric Furnace 1000W
Measuring Cylinder Volume 100 ML, Indexing 1 ML Electric Furnace Movable Plate Made Of Silicon Carbide Plate With Hole Diameter Of φ 38㎜、 φ 50㎜
Thermometer Full Immersion Stick, Scale Range (－2～＋300) ℃ And (－2～＋400) ℃, The Graduation Is 1 ℃ (thermometer Can Be Selected According To Demand) Temperature Control Range Room Temperature～400℃ Arbitrary Setting
Temperature Control Accuracy ±0.5℃ Number Of Test Holes Single Hole
The Distillation Flask 125mL, In Line With The Requirements Of GB/T6536 Overall Dimension 400mm×430㎜×500 Mm (Long×Wide×High)
Instrument Weight 20kg
Highlight

oil distillation apparatus

,

petroleum distillation apparatus
Leave a Message
Product Description

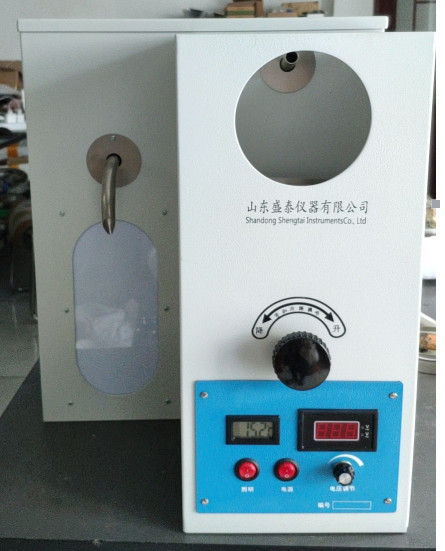

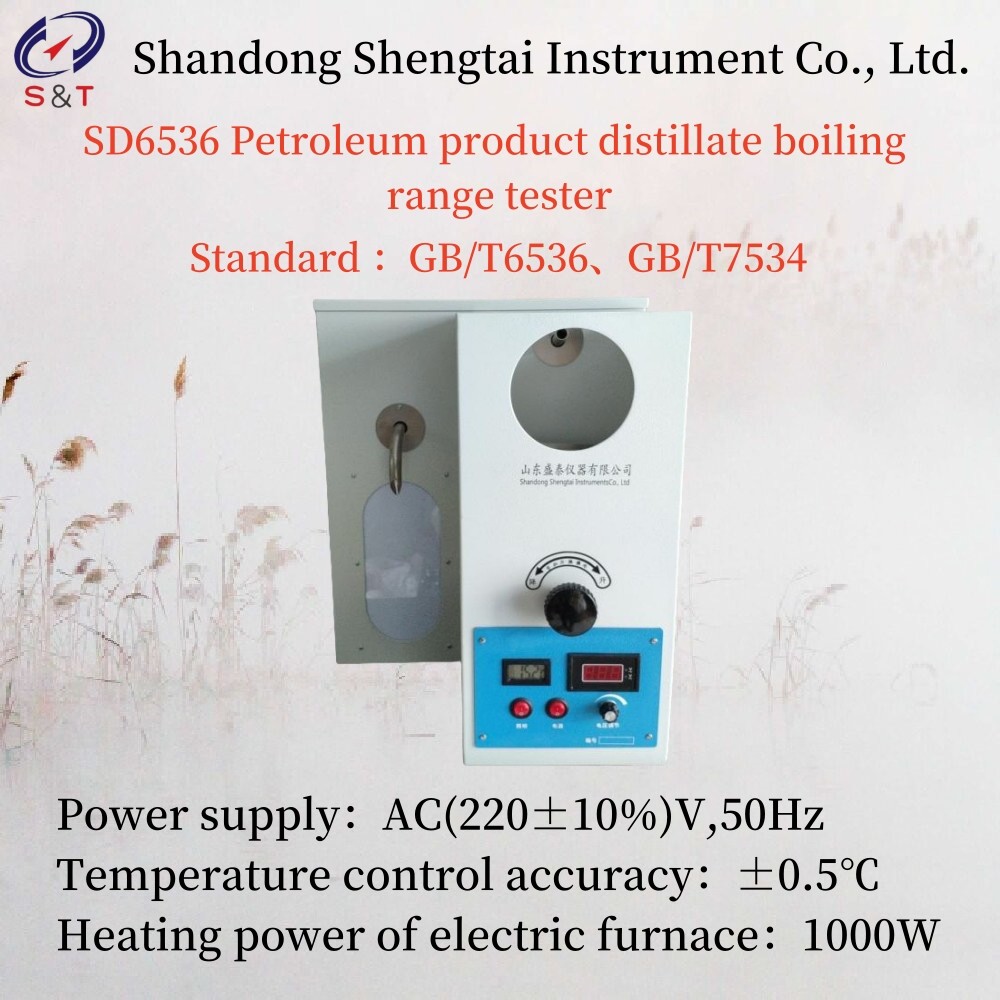

SD6536 Petroleum product distillate boiling range tester

SD6536 Petroleum product distillation apparatus is based on the standard of the People's Republic of China GB/T6536 GB/T7534 the distillation of petroleum products determination act - 2004 "industrial use volatile organic liquid boiling range measurement, the requirements of the design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar determination of distillation, and in accordance with the standards of GB/T7534 for volatile organic liquid used in industry, raw material in organic solvent such as the determination of boiling range of the instrument.

Petroleum product distillate boiling range tester

Distillation Tester for Petroleum products

Distillation Apparatus for Petroleum Products

Distillation Analyzer for Petroleum Oils ASTMD 86

Automatical ASTM D Standard Petroleum Distillation Range Testing Apparatus

Distillation Apparatus-Distillation Tester

Oil Distillation Apparatus-Petroleum Distillation Apparatus

Heating 1000w Oil Distillation Apparatus Petroleum Distillation Apparatus Ac(220±10%)V 50hz 0

Main technical parameters

1 Power supply AC(220±10%)V,50Hz.
2 Heating power of electric furnace 1000W
3 Measuring cylinder volume 100 mL, indexing 1 mL
4 Electric furnace movable plate made of silicon carbide plate with hole diameter of φ 38㎜, φ 50㎜
5 Thermometer full immersion stick, scale range (－2～＋300) ℃ and (－2～＋400) ℃, The graduation is 1 ℃ (thermometer can be selected according to demand)
6 temperature control range room temperature～400℃ arbitrary setting
7 Temperature control accuracy ±0.5℃
8 Number of test holes single hole
9 Temperature display mode LED digital display.
10 The distillation flask 125mL, in line with the requirements of GB/T6536
11

Overall dimension: 400mm×430㎜×500 mm (Long×Wide×High)

Instrument weight: 20kg

Heating 1000w Oil Distillation Apparatus Petroleum Distillation Apparatus Ac(220±10%)V 50hz 1

Packing list

S/N Name Unit Quantity
1 Host Set 1
2 Distillation flask(125 ml) Piece 1
3 Thermometer Piece 1
4 Glass tank(Ф100×240) Piece 1
5 Silicone plug(3#,4#) Piece 各1
6 Silicon carbide plateφ38,φ50 Piece 各1
7 Graduated cylinder(100ml) Piece 1
8 Thermometer retainer(1#) Piece 2
9 Observation glass Piece 1
10 Baffle cover Piece 1
11 Power cord Piece 1
12 Instruction manual Copy 1
13 Certificate warranty card Copy 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
