Ac 220v±10% 50hz Double Hole Petroleum Product Distillation Tester Temp Accuracy ±0.5°C

  • Ac 220v±10% 50hz Double Hole Petroleum Product Distillation Tester Temp Accuracy ±0.5°C
  • Ac 220v±10% 50hz Double Hole Petroleum Product Distillation Tester Temp Accuracy ±0.5°C
Place of Origin China
Brand Name Shandong Shengtai Instrument
Certification GB/T6536、GB/T7534
Model Number SD6536A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Can Test Two Samples Simultaneity Item SD-6536A Distillation Tester
Test Standard GB/T6536、GB/T7534 Suitable For Gasoline、jet Fuels、special Boiling Point Solvent、naphtha、diesel Oil、distillate And Other Petroleum Products
Heating Power Of Electric Furnace 1000W*2、heating Power Can Be Continuously Adjusted Volume Of Graduated Flask 100 Ml With Scale Division Of 1ml
Distillation Flask 125 Ml Thermometer －2～300℃ And －2～400℃
Temperature Controlling Range Ambient～400℃ Receiver Compartment Temperature 1～60℃
Temperature Controlling Accuracy ±0.5℃ Power Supply AC 220V±10%, 50 Hz
Ambient Emperature ≤＋35℃ Relative Humidity ≤85%
Total Power Consumption ≤2500 W Overall Dimension 760mm×430mm×500 Mm (Long×Wide×High)
Instrument Weight 28kg
Highlight

double hole petroleum product distillation tester

,

high accuracy petroleum product distillation tester
Leave a Message
Product Description

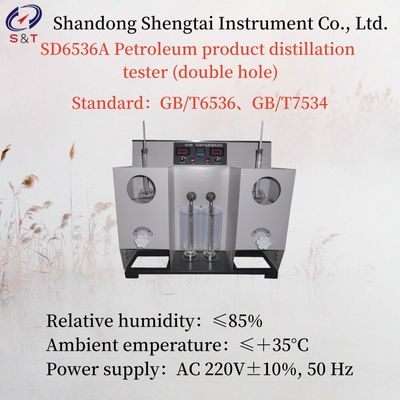

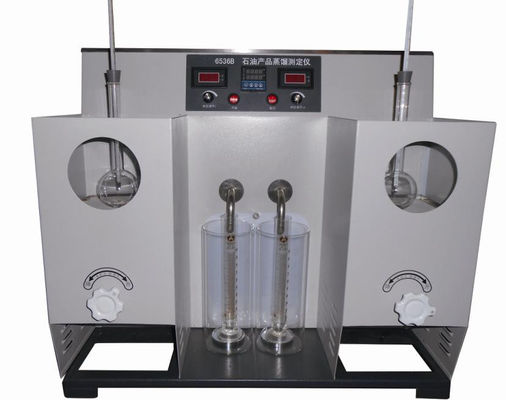

SD6536A Petroleum product distillation tester (double hole)

Purpose and scope of application

SD6536A petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.

Distillation Tester (low temperature Double units)

Distillation Tester (Double Units)

ASTM D86 Distillation Tester (Double Units)

Ac 220v±10% 50hz Double Hole Petroleum Product Distillation Tester Temp Accuracy ±0.5°C 0

Main technical parameters and technical characteristics

(1)Main technical parameters

(2)Power supply: AC220V±10%, 50Hz.

(3)Heating power of electric furnace: 1000W×2.

(4)Measuring cylinder volume: 100 mL, indexing 1 mL.

(5)The distillation flask: 125mL, in line with the requirements of GB/T6536.

(6)thermometer: full immersion stick, scale range (－2～＋300)℃ and (－2～＋400) ℃, 1℃.

(7)The electric furnace plate: silicon carbide plate manufacturing, aperture is Φ 38㎜, Φ 50㎜.

(8)temperature controller:

① temperature control range: (room temperature～80)℃ arbitrary setting.

② Temperature control accuracy:±0.5℃

③ Temperature display mode: LED digital display.

Item SD-6536A Distillation Tester
Test standard GB/T6536,GB/T7534
Suitable for Gasoline,jet fuels,special boiling point solvent,naphtha,diesel oil,distillate and other petroleum products
Features Can test two samples simultaneity
Heating power of electric furnace 1000W*2,heating power can be continuously adjusted
Volume of graduated flask 100 ml with scale division of 1ml
Distillation flask 125 ml
Thermometer －2～300℃ and －2～400℃
Temperature controlling range Ambient～400℃
Receiver compartment temperature 1～60℃
Temperature controlling accuracy ±0.5℃
Power supply AC 220V±10%, 50 Hz
Ambient emperature ≤＋35℃
Relative humidity ≤85%
Total power consumption ≤2500 W

Overall dimension: 760mm×430mm×500 mm (Long×Wide×High)

Instrument weight: 28kg

Ac 220v±10% 50hz Double Hole Petroleum Product Distillation Tester Temp Accuracy ±0.5°C 1

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Distilled flask(125 ml) 2 piece
3 aquarium 2 piece
4 Silica gel plug 4 piece
5 Silicon carbide plate, aperture Φ 32㎜, Φ 38㎜, Φ 50㎜ 2 piece
6 Measuring cylinder (100ml) 2 piece
7 Test platform 2 piece
8 power cord 1 piece
9 thermometer 2 piece
10 fuse tube 1 piece 10A
11 Operating instruction 1 COPY
12 packing list 1 COPY
13 Certificate of approval 1 COPY
