Heating Power 1000w Manual Petroleum Product Distillation Tester Power Ac(220±10%)V 50hz

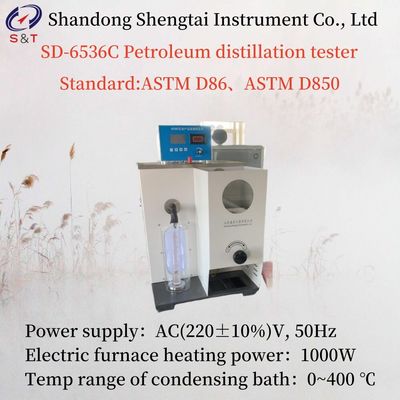

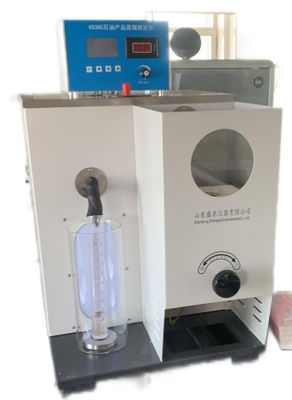

SD-6536C Petroleum distillation tester

SD 6536C Oil distillation tester is the instrument according to the standard of the People's Republic of China GB/T 6536 the act of the distillation of petroleum products determination of the requirements of the design and manufacture, apply to the standard of GB/T 6536 to gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.

6536C Petroleum Product Distillation Tester of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil and distillate

Petroleum Product Distillation Tester at Atmospheric Pressure

Manual Petroleum Product Distillation Tester ASTM D86

ASTM D86,ASTM D850,ASTMD1078,ISO3405,ISO918,IP123,IP195

Number of experiments

I. Main technical features

1. Adopt digital temperature controller, stainless steel heater, new refrigeration compressor and electric stirrer to form a constant temperature bath. The temperature in the bath is uniform, which fully meets the requirements of the test.

2. The use of special heating furnace form, to ensure the safety of the test;The heating power can be adjusted continuously to meet the requirements of the test.

3. The instrument is complete and easy to use. The repurchased instrument can be used for the distillation test of petroleum products under the condition of low temperature.

4. The condensing water tank is made of stainless steel, which can be heated and cooled

II. Main technical parameters and indicators

1. working power supply: AC 220V±10%, 50Hz

2. Electric furnace heating power: 1000W;

3. measuring cylinder volume: 100ml, 1ml indexing;

4. Distilling flask: 125mL, in line with the requirements of GB/T 6536;

5. distillation and pressure regulating furnace power: 0～1 KW

6. condenser pipe size: Φ 14 × 560 mm

7.Quantity: Single tube;

8. condensing bath heating method: electric heating rod heating;

9. condensing bath temperature control mode: digital display temperature controller temperature control;

10.Refrigeration system: new refrigerating compressor;

11. condensing bath temperature range: 0～4℃.

12. the maximum power of the machine: 1.45KW.
