AC220V±5% 50HZ Liquid Petroleum Products Hydrocarbon Tester Lighting 1220mm Long Power 40W

  • AC220V±5% 50HZ Liquid Petroleum Products Hydrocarbon Tester Lighting 1220mm Long Power 40W
  • AC220V±5% 50HZ Liquid Petroleum Products Hydrocarbon Tester Lighting 1220mm Long Power 40W
Place of Origin China
Brand Name Shandong Shengtai Instrument
Certification GB/T 11132-2002
Model Number SD11132
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply Voltage AC220V±5%,50 Hz Pressure Regulating Range Of Pressure Reducing Valve 0～400KPa
Electric Oscillator Two Separate Control UV Light Source Tube Length 1220mm, Wavelength 365±5nm
Lighting 1220mm Long, Power 40W Relative Humidity < 85%
Ambient Temperature 5～35℃ Gas Supply Method Nitrogen Cylinder (or Air Compressor, Compressed Air Cylinder)
Package Size 1850mm×450mm×450mm ( Long×wide×high ) Weight 85kg
Highlight

Liquid Petroleum Products Hydrocarbon Meter

,

Liquid Petroleum Gas Hydrometer

,

40W Liquid Petroleum Gas Hydrometer
Leave a Message
Product Description

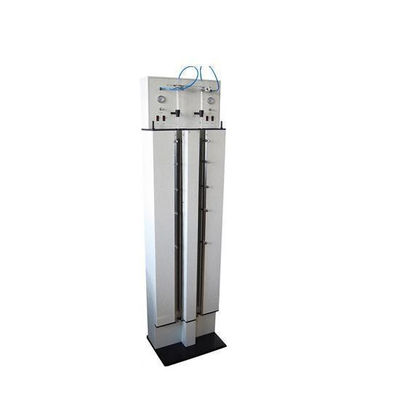

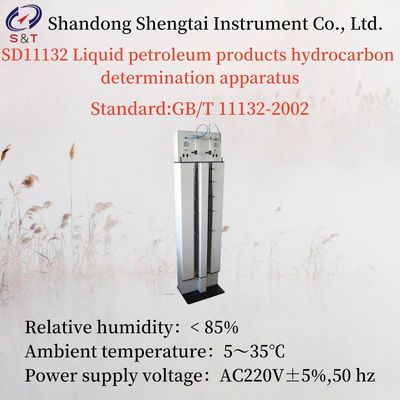

SD11132 Liquid petroleum products hydrocarbon determination apparatus

SD11132 Liquid petroleum products hydrocarbon meter is in accordance with the law of the People's Republic of China standard GB/T 11132-2002 "hydrocarbon liquid petroleum products determination method (fluorescent indicator adsorption method)" the requirements stipulated in the design and manufacture, apply to approach, as stipulated in the standard GB/T 11132 main hydrocarbon in liquid petroleum products with fluorescent indicator displayed on the silica gel adsorption column, calculate the volume percentage, as the quality of the fuel oil such as engine fuel, aviation fuel measuring indicators.

This instrument is a special instrument for the determination of the volume fraction of aromatics, olefin and saturated hydrocarbons in petroleum fractions.

Hydrocarbon Measuring Instrument for Liquid Petroleum Products

Liquid Petroleum Products Hydrocarbon Tester

Hydrocarbon Tester for Liquid Petroleum Products

AC220V±5% 50HZ Liquid Petroleum Products Hydrocarbon Tester Lighting 1220mm Long Power 40W 0

I. Main technical features

1. The instrument adopts the integrated vertical structure design, without installation, directly placed to the appropriate indoor position can be used.

2. The instrument is composed of gas circuit system, vibration part, scale and scale indicator, system lighting, ultraviolet detection and other components, from the silicone filling, vibration, sampling until the reading test results at one go.

3.Direct use of two imported precision inner diameter glass tube adsorption column (standard wall glass tube adsorption column is no longer matched), more convenient for users to use.



II. Main technical parameters and indicators

Power supply voltage AC220V±5%;50 hz.
Pressure regulating range of pressure reducing valve 0～400KPa
Electric oscillator Two separate control
UV light source tube Length 1220mm, wavelength 365±5nm
lighting 1220mm long, power 40W
Relative humidity < 85%
Ambient temperature 5～35℃
Gas supply method nitrogen cylinder (or air compressor, compressed air cylinder)
Package size: 1850mm×450mm×450mm ( long×wide×high ) Weight: 85kg



AC220V±5% 50HZ Liquid Petroleum Products Hydrocarbon Tester Lighting 1220mm Long Power 40W 1

III. Standard accessories

No Item Unit Qty Remarks
1 Precision inner diameter adsorption column Piece 2
2 Imported silica gel (500g) Bottle 1
3 Imported fluorescent indicator (4g) Bottle 1
4 6mm intake pipe(intake pipe with cylinder connection) Set 1
5 Glass grinding plug(with trachea) Set 2
6 Glass flow export Piece 2
7 Grinding mouth clip (28, large) Piece 2
8 Grinding mouth clip (12, small) Piece 2
9 Indicate that the dose spoon Piece 1
10 Special needle used for cleaning Piece 1 When used for washing
11 500ml waste liquid bottle(with rubber stopper and PU tube) Set 1 When used for washing
12 Plastic measuring cup (250ml) Piece 1 When used for washing
13 Magnetic pointer Piece 8 Placed on both sides of the scale
14 Magnetic fixed base Piece 2 When the vibration place the magnetic fixed base in the bottom of the absorption column
15 Fuse (10A, Ф5 × 20) Piece 2 Spare parts
16 Purple light tube, 40W, 365nm wavelength Piece 1 Spare parts, placed inside the instrument
