Power Ac220v±10% 50hz Pensky Martens Closed-Cup Flash Point Tester For Oil Testing About 15kg

  • Power Ac220v±10% 50hz Pensky Martens Closed-Cup Flash Point Tester For Oil Testing About 15kg
  • Power Ac220v±10% 50hz Pensky Martens Closed-Cup Flash Point Tester For Oil Testing About 15kg
Place of Origin China
Brand Name Shandong Shengtai Instrument
Certification ISO-2719,ASTM D93, GB261-2008,T0633
Model Number SH105B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Power Supply AC220V±10%, 50Hz Temperature Measurement Range Room Temperature ~ 390℃
Temperature Measurement Accuracy ≥ 104℃ ± 2℃ ≤ 104℃ ± 1℃ Temperature Measurement Resolution 0.1℃
Precision 0.1 Step A Heating Rate: 5 ～ 6℃/min
Step B Heating Rate: 1.0 ～ 1.5℃/min Heating Speed In Line With GB/T261-2008 Standard
Ignition Mode Electronic Ignition Ambient Temperature (10 ～ 40) ℃
Relative Humidity ≤ 80%
Highlight

pensky martens

,

220v flash point tester closed cup

,

oil flash point tester closed cup
Leave a Message
Product Description

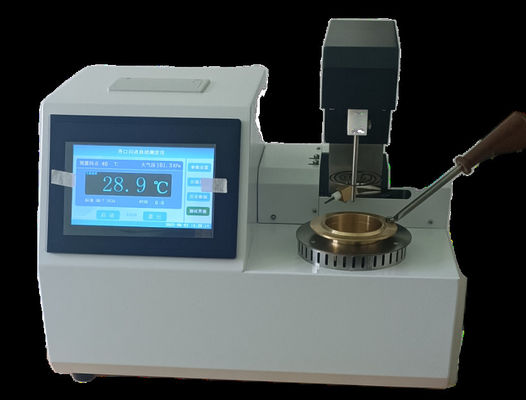

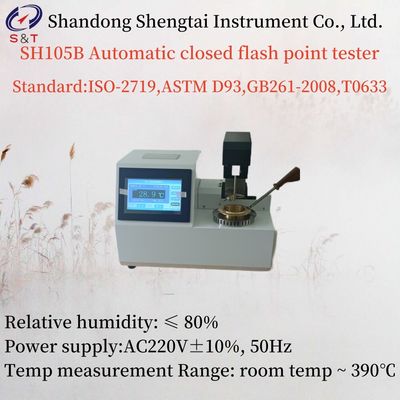

SH105B Automatic closed flash point tester

SH105B closed flash point automatic tester, is a centralized scientific research developed products.The instrument adopts microcomputer technology, large screen LCD display.

Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.

After the test can be automatically cooled, to achieve the full automation of the work process.

It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.

Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments.

In line with ISO-2719,ASTM D93, GB261-2008 standard T0633 liquid petroleum asphalt flash point meter (Tag closed cup method).

Pensky-Martens Closed-Cup Flash Point Tester for Oil Testing

ASTM D93 Closed Cup Flash Point Tester for Diesel Fuel

ASTM D93 Pensky-Martens Portable Oil Closed Cup Flash Point Test

Closed-Cup Flash Point Tester for Petroleum Products (Pensky-Martin method)

Power Ac220v±10% 50hz Pensky Martens Closed-Cup Flash Point Tester For Oil Testing About 15kg 0

Instrument features

1. the use of color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard, for the pre-value temperature, sample label, atmospheric pressure, test date and other parameters, with a prompt menu-oriented input.

2. Simulate tracking displays the function curve of temperature rise and test time. It has the function of Chinese wrong operation software to prompt modification and the parameter prompt function of test date, test time and so on.

3. Equipped with standard RS-323,485 computer interface, the lower computer stores 120 sets of historical data, the optional software can be connected with the computer to store data in large capacity and can be long-term storage, data transmission, the upper can modify the lower computer parameters in real time.

4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

5. computer operation, Chinese operation prompt interface, automatic detection, automatic printing reports.

6. open the lid, ignition, detection, printing data automatically completed, the test arm automatically rise and fall.

7. Electronic ignition, forced air cooling, without air source, automatic ignition.

8. without automatic ignition of air source, improve the safety of the test.



Main technical indexes and parameters

Working power supply AC220V±10%, 50Hz
Temperature measurement

Range: room temperature ~ 390℃

Accuracy: ≥ 104℃ ± 2℃ ≤ 104℃ ± 1℃

Resolution: 0.1℃;Precision: 0.1
Base parameters

Heating speed: in line with GB/T261-2008 standard;

Step A: Heating rate: 5 ～ 6℃/min

Step B: Heating rate: 1.0 ～ 1.5℃/min

Ignition mode: electronic ignition;
Stirrer: Electric stirring device

(1) 90 ～ 120 RPM, suitable for test step A.

(2) 250 ± 10 RPM, suitable for test step B.
Ambient temperature: (10 ～ 40) ℃ Relative humidity: ≤ 80%
Power consumption of the whole machine: not more than 500W.
Instrument size: overall size: 430 * 380 * 520 (mm), about 15kg

Power Ac220v±10% 50hz Pensky Martens Closed-Cup Flash Point Tester For Oil Testing About 15kg 1

Packing List

S/N Name Quantity Unit Remarks
1 Automatic closing flash point meter 1 set
2 Oil cup 1 piece
3 AC power cord 1 piece
4 Printing paper 1 piece
5 Operating instruction 1 piece
6 packing list 1 copy
7 Certificate of approval 1 copy
