500w Automatic Closed Cup Flash Point Tester

  • 500w Automatic Closed Cup Flash Point Tester
  • 500w Automatic Closed Cup Flash Point Tester
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Certification ISO-2719, ASTM D93, GB / T261-2021
Model Number SH105BS
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Power Supply AC220V±10%， 50Hz Temperature Measurement Range Room Temperature ～ 370℃
Temperature Measurement Accuracy ≥104℃±2℃ ≤104℃±1℃ Resolution 0.1℃
Precision 0. 5% Heating Speed In Line With GB/T261-2021 Standard
Step A Heating Rate: 5 ～ 6℃/min Step B Heating Rate: 1.0 ～ 1.5℃/min
Step C Heating Rate:2.5℃～3.5℃/min Ignition Mode Electronic Ignition
Ambient Temperature (10～40) ℃ Relative Humidity ≤ 80%
Highlight

500w closed cup flash point tester

,

automatic closed cup flash point tester

,

500w flashpoint tester
Leave a Message
Product Description

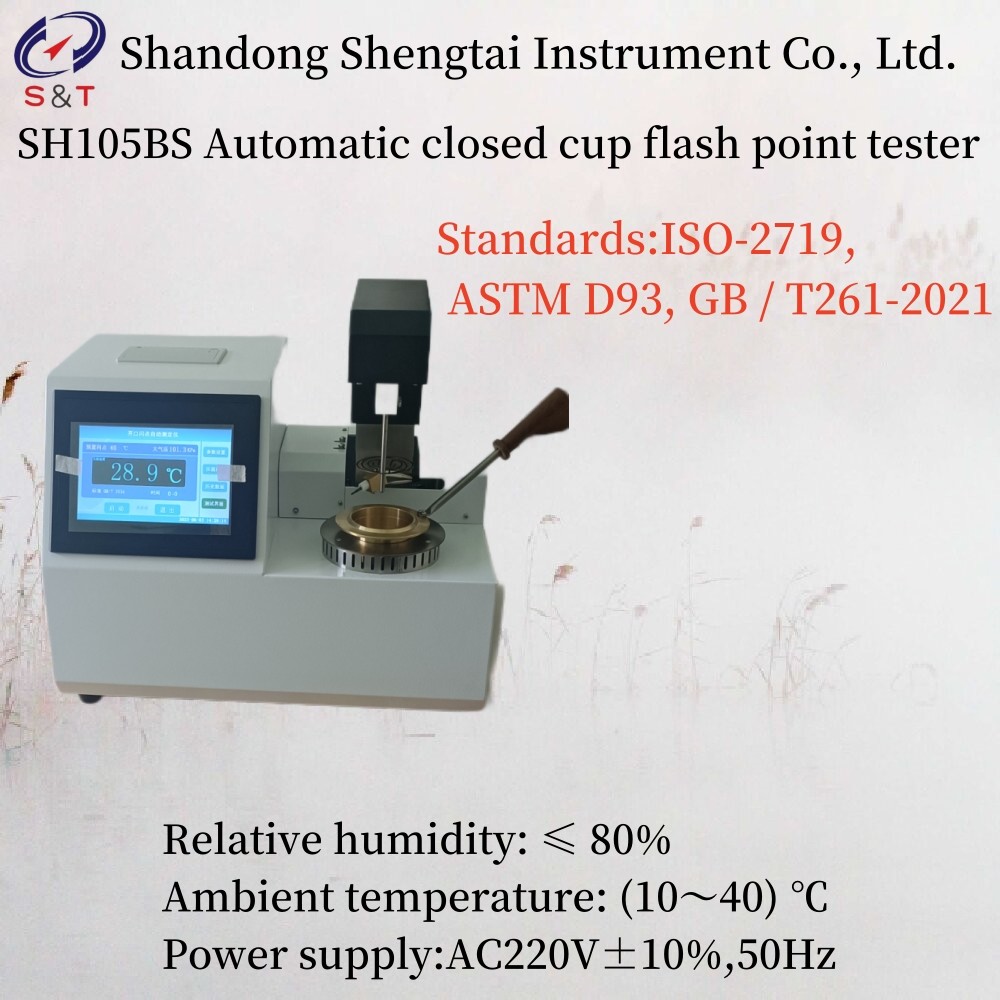

SH105BS Automatic closed cup flash point tester

SH105BS Automatic closed cup flash point tester adopts microcomputer technology and large screen LCD LCD display. The instrument warms up according to the standard method, automatic lifting, automatic ignition, automatic display, automatic locking flash point value, automatic printing results. After the test, it can automatically cool down and realize the full automation of the working process. Widely used in electric power, petroleum, chemical industry, commodity inspection, scientific research and other departments. Compliance with ISO-2719, ASTM D93, GB / T261-2021 standards.

Flash point

Under the specified test conditions, the test flame causes the sample vapor to fire and spread the flame to the lowest temperature on the liquid surface to 1013 kPa atmosphere.

Compliance with standard GB / T261-2021; ASTMD93

High Precision Petroleum Products Pensky-Martens Closed Cup Flash Point Tester

Flash Point Apparatus with Closed Cup Testing Method

Pensky-Martens Closed Cup Flash Point Tester

Pensky Martens Closed Cup Flash Point Tester ASTM D93 Standard

500w Automatic Closed Cup Flash Point Tester 0

Technical performance parameters

● Using color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard

● Automatically detect atmospheric pressure and correct the influence of atmospheric pressure on the test and calculate the correction value.

● Opening opening, ignition, detecting and printing data are automatically completed, and the test arm automatically rises and falls.

● Electronic ignition, forced air cooling, no gas source, automatic ignition.

● Printer: It is equipped with a miniature printer

● Air pressure detection device: with the air pressure detection device, automatically correct the atmospheric pressure.

● Automatic ignition of the air source is not required to improve the safety of the test.

● Temperature measurement: Range: room temperature: ～370℃

Accuracy: ≥104℃± 2℃ ≤ 104℃± 1℃

Resolution: 0.1℃; accuracy: 0.5%;

● Base parameter: heating speed: in line with GB / T261-2021 standard

● Ignition mode: with automatic electronic ignition, automatic end point stop function

● It has the function of A, B and C.

● Rated power: 500W

● Overall dimensions: 450 ×380× 350 (mm)

● Instrument weight: 19kg

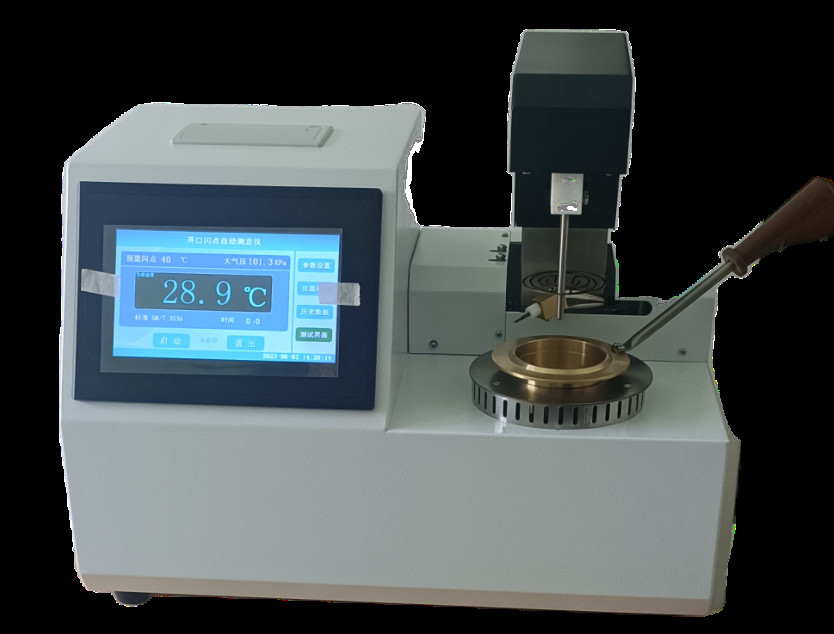

500w Automatic Closed Cup Flash Point Tester 1

Working power supply AC220V±10%, 50Hz
Temperature measurement

Range: room temperature ～ 370℃

Accuracy: ≥104℃±2℃ ≤104℃±1℃

Resolution: 0.1℃;Precision: 0. 5%
Base parameters

Heating speed: in line with GB/T261-2021 standard;

Step A: Heating rate: 5 ～ 6℃/min

Step B: Heating rate: 1.0 ～ 1.5℃/min

Step C : Heating rate:2.5℃～3.5℃/min

Ignition mode: electronic ignition
Stirrer: Electric stirring device

(1) 90 ～ 120 RPM, suitable for test step A.C

(2) 250±10 RPM, suitable for test step B.
Ambient temperature: (10～40) ℃ Relative humidity: ≤ 80%
Power consumption of the whole machine: not more than 500W.
Instrument size: overall size: 450 * 380 * 350 (mm) about 19kg

Packing list

S/N Name Quantity Unit remarks
1 Host 1 set
2 Oil cup 1 piece
3 AC power cable 1 piece
4 Printer paper 1 piece
5 Instruction manual 1 piece
6 Packing list 1 copy
7 Certificate of qualification 1 copy
