Temp Control Precision ±0.5ºC Low Temperature Closed Flash Point Tester Powe 300w
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC(220±10%)V, 50Hz | Flash Point Measuring Range | (0 ～ ＋350)℃ |
|---|---|---|---|
| Refrigeration Mode | Compressor Refrigeration | Temperature Control Precision | ±0.5ºC |
| Placement Test Volume | 80ml | Maximum Power Consumption | 300W |
| Ambient Temperature | 5ºC～30ºC | Relative Humidity | 30%～80% |
| Overall Size | 430 * 380 * 520 (mm) | Weight | 15kg |
| Highlight | precision flashpoint tester,low temperature flashpoint tester,closed cup flashpoint tester |
||
Product Description

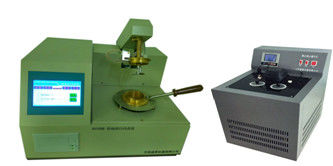

SH105C Low temperature closed flash point tester
SH105C low temperature closed flash point tester is designed and manufactured in accordance with the requirements of the standard GB/T261-2008 of the People's Republic of China.
Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.
After the test can be automatically cooled, to achieve the full automation of the work process.
It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.
Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments.
In line with ISO-2719,GB261 standard and GB 5085.4-2007 hazardous waste identification standard flammability identification.
II. Main technical indexes and parameters
| Power supply | AC(220±10%)V, 50Hz |
| Flash point measuring range | (0 ～ ＋350)℃ |
| Refrigeration mode | compressor refrigeration |
| Temperature control precision | ±0.5ºC |
| Igniting device | Electric igniting gun |
| Placement test volume | 80ml |
| Maximum power consumption | 300W |
| Ambient temperature | 5ºC～30ºC |
| Relative humidity | 30%～80% |
| Instrument size: overall size: 430 * 380 * 520 (mm) About: 15kg | |
| Circulating bath size: 450 * 480 * 580mm Weight: 28kg | |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic closed-mouth flash point meter | 1 | set | |
| 2 | Low temperature circulating bath | 1 | set | |
| 3 | Oil cup | 1 | piece | |
| 4 | AC power cord | 1 | piece | |
| 5 | Printing paper | 1 | piece | |
| 6 | instruction manual | 1 | piece | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | copy |
SH105C low temperature closed flash point tester is designed and manufactured in accordance with the requirements of the standard GB/T261-2008 of the People's Republic of China.
Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.
After the test can be automatically cooled, to achieve the full automation of the work process.
It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.
Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments.
In line with ISO-2719,GB261 standard and GB 5085.4-2007 hazardous waste identification standard flammability identification.
II. Main technical indexes and parameters
| Power supply | AC(220±10%)V, 50Hz |
| Flash point measuring range | (0 ～ ＋350)℃ |
| Refrigeration mode | compressor refrigeration |
| Temperature control precision | ±0.5ºC |
| Igniting device | Electric igniting gun |
| Placement test volume | 80ml |
| Maximum power consumption | 300W |
| Ambient temperature | 5ºC～30ºC |
| Relative humidity | 30%～80% |
| Instrument size: overall size: 430 * 380 * 520 (mm) About: 15kg | |
| Circulating bath size: 450 * 480 * 580mm Weight: 28kg | |
