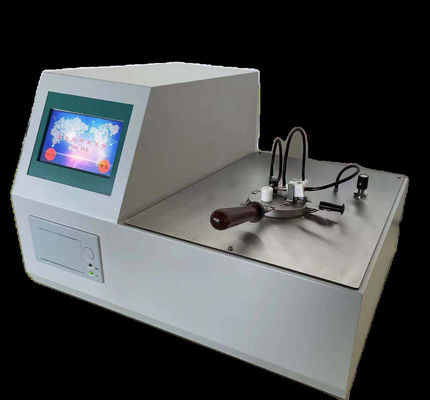

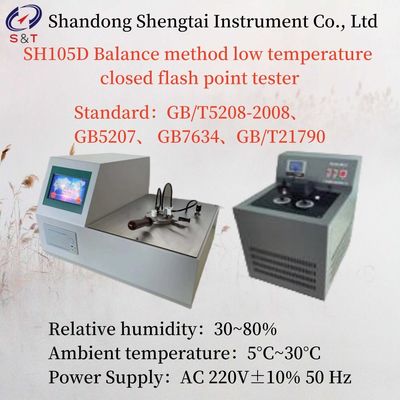

SH105D Balance method low temperature closed flash point tester

SH105D balance method low temperature closed flash point Tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T 5208 "determination of flash point rapid balance closed cup method".

The instrument also complies with ISO 1523 and ISO 3679 standards.

This instrument takes the advanced electronic temperature control instrument as the core, is equipped with the appropriate interface circuit, realizes the automation of temperature control, has the heating power automatic switch, the temperature automatic control and other functions.

ISO 1523 ISO 3679

Low Temp Closed Cup Flash Point Tester of Gasoline

ISO 3679 Petroleum Flash Point Testing Equipment

Rapid Low Temperature Closed Cup Flash Point Tester

The instrument is simple to operate, reasonable structure, accurate detection, stable performance, intuitive display, is an ideal substitute for imported instruments, can meet the petroleum, chemical, coating, paint, railway, aviation, electric power, commodity inspection and scientific research units on petroleum products closed flash point rapid test requirements.

This instrument is especially suitable for testing the flash point of all kinds of colors, paints, adhesives, solvents, petroleum and related products in the range of -30℃ ~ +100℃.

Main technical indexes and parameters

Upgraded to a 7-inch touch-color display

Flash point detection range :(-30 ~ +100)℃;

Sample Volume :2ml

Measurement precision: the absolute difference between the two experimental results is less than 2℃ (for the same operator);

The absolute difference between the two experimental results is less than 3℃ (for different operators);

Temp accuracy: ±0.1℃;

Ignition device: electronic igniter ignition;

Refrigeration mode: semiconductor internal refrigeration and external compressor refrigeration cycle

After upgrade, 199 sets of historical data can be stored for easy query.

Standard: in line with the Chinese standard GB/T5208-2008, GB5207, GB7634, GB/T21790

Storage: 199 sets of historical data can be stored for easy query;

Packing list
