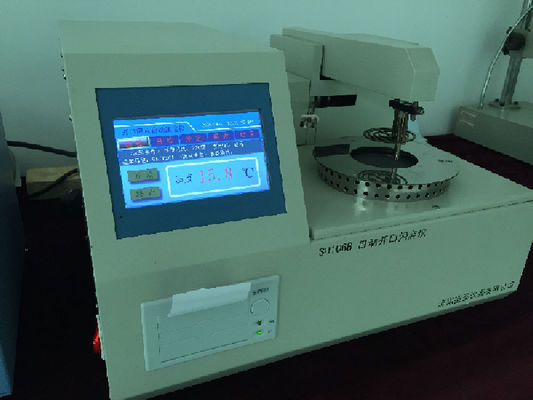

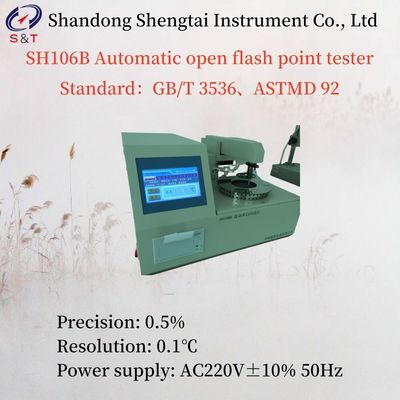

SH106B Automatic open flash point tester

SH106B automatic open flash point tester is designed and manufactured according to the standard GB/T 3536 and ASTMD 92 "Determination of flash point and ignition point of petroleum products (Cleveland open cup method)".

Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.

Automatic open flash point tester for gear oil hydraulic oil turbine oil ASTMD 92 Cleveland open cup method

After the test can be automatically cooled, to achieve the full automation of the work process.

ASTM D92 Automatic Cleveland Open Cup Flash Point Tester

It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It also supports the determination of GB/T1671-2008 plasticizer flash point

Hydraulic Oil flash point tester ASTM D92

ASTM D92 Automatic Cleveland Open Cup Flash Point Tester for Oil Testing

ASTM D92 Automatic Engine Oil Open Cup Flash Point Tester

China Manufacturer Price Automatic Digital Portable Open Cup Type Oil Flash and Fire Point Tester

Automatic open flash point tester for Turbine oil standard ASTMD 92 GB/T3536 Cleveland open cup method

Instrument features

1. The instrument adopts color LCD large screen display, full Chinese man-machine dialogue interface, no identification keyboard, for the parameters such as pre-value temperature, sample label, atmospheric pressure, test date, with prompt menu, oriented input function.

2. Simulation tracking displays the function curve of temperature rise and test time. It has the function of Chinese wrong operation software to prompt modification, and the function of test date, test time and other parameters to prompt.

3. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

4. Differential detection, automatic correction of system deviation.

5. Scanning, detection and printing data are automatically completed, and the test arm automatically rises and falls.

6. Electronic ignition and forced air cooling

7. without automatic ignition of air source, improve the safety of the test

Main technical indexes and parameters

1. Working power supply: AC220V±10% 50Hz

2. Temperature measurement: range: room temperature ～ 400℃

3. Repeatability: flash point ≤150℃ error ±2℃; flash point ≥150℃ error ±3℃

4. Resolution: 0.1℃

5. Precision: 0.5%

6. Heating speed: in line with GB/T3536 standard

7. Ignition mode: electronic ignition, flame 3㎜～4㎜

8. Ambient temperature: (10～40)℃

9. Relative humidity:≤80%

10. Boundary dimension: 430 * 380 * 520 (mm) About: 15kg
