Automatic Transformer Oleic Acid Value Tester Accuracy ±0.005mgkoh/G

  • Automatic Transformer Oleic Acid Value Tester Accuracy ±0.005mgkoh/G
  • Automatic Transformer Oleic Acid Value Tester Accuracy ±0.005mgkoh/G
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Certification GB/T 264、GB7599、ASTM D974
Model Number SH108
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ambient Temperature 10 ℃～＋30℃ Accuracy ±0.005mgKOH/g
Testing Rang 0.001～1.000mgKOH/g Differential Power 0.001mgKOH/g
Reconstruct Ability 0.003mgKOH/g Power Rate 300 W
Environmental Humidity ≤80% Power Supply 220V±10% 50Hz±1%
Dimension 420 × 250 × 280 Mm Weight 10kg
Highlight

Automatic Oleic Acid Value Tester

,

Transformer Oleic Acid Value Tester

,

high Accuracy Oleic Acid Value Tester
Leave a Message
Product Description

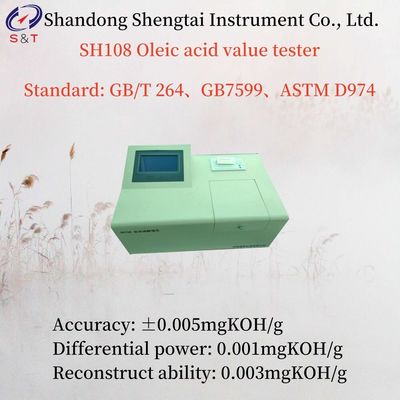

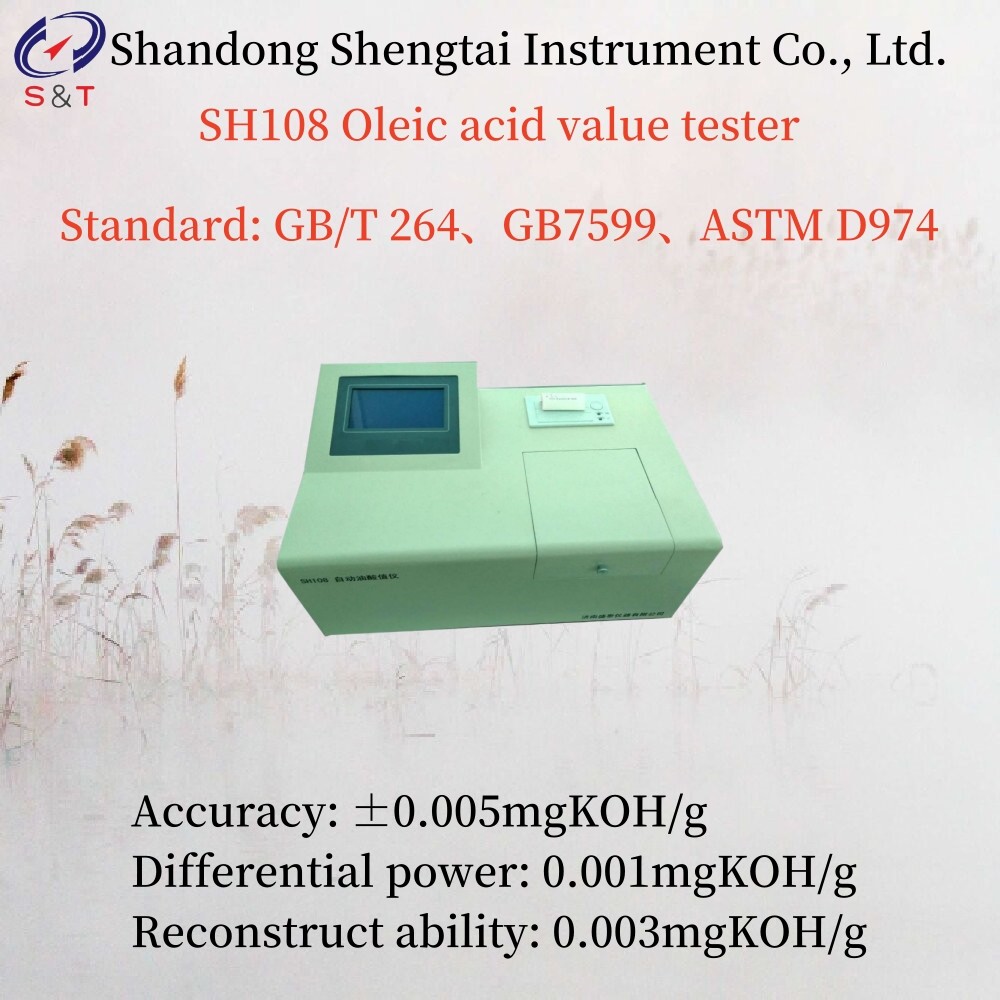

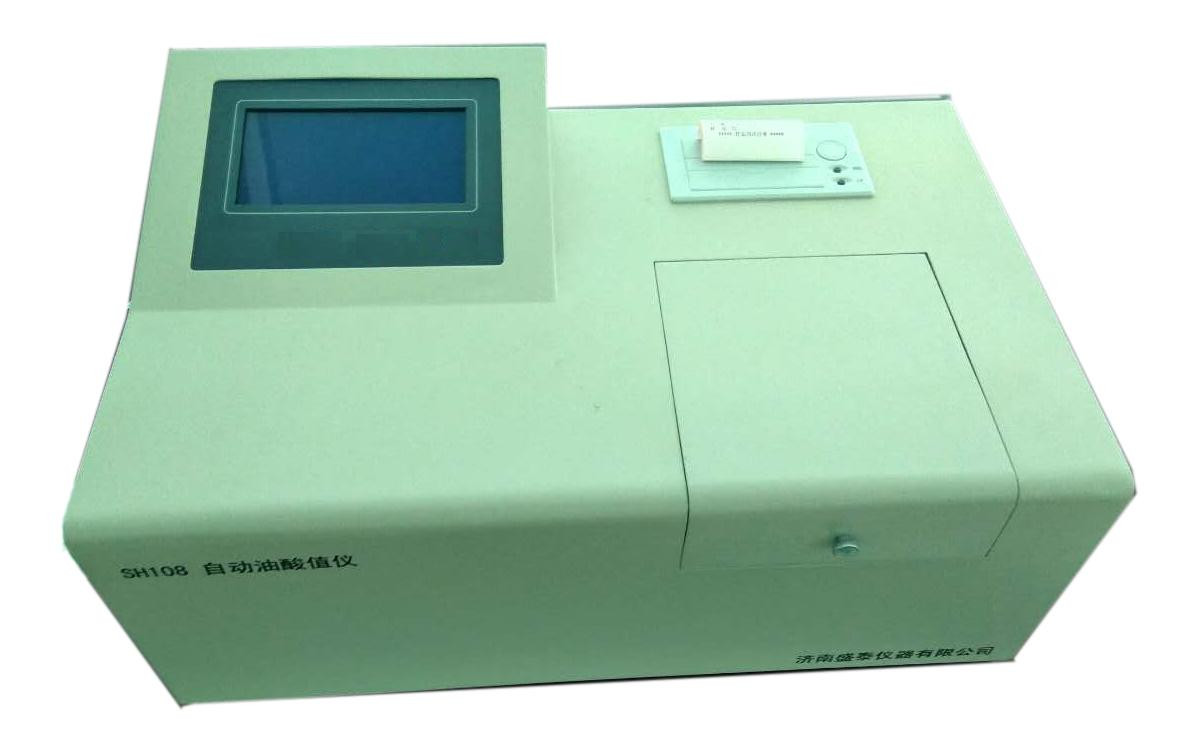

SH108 Oleic acid value tester

SH108 automatic oleic acid level meter complies with the requirements stipulated in the People's Republic of China standard GB/T 264 "Determination of the acid value of petroleum products" and GB7599,

The instrument adopts blue LCD large screen display, Chinese menu, no marker button.

ASTM D974 Transformer Oil Acidity Testing

Acidity tester complies to ASTM D974

ASTM D974 Color-Indicator Titration Acidity Tester

Microcomputer automatic measurement, automatic printing, the test process to achieve computer automation, intuitive and simple operation.

Using magnetic stirring, no noise, safe and reliable, compact size.

It can meet the needs of oil refineries, power plants and scientific research units, and is one of the essential instruments for oil analysis and quality inspection.

Automatic Transformer Oleic Acid Value Tester

Automatic Stirring Titration Detection Oleic Acid Value Tester

LCD Screen Oleic Acid Value Automatic Stirring Tester

Automatic Transformer Oleic Acid Value Tester Accuracy ±0.005mgkoh/G 0

performance characteristics

1. Using the principle of titration and neutralization method, under the control of the microcomputer automatically complete liquid injection, titration, mixing, determination of neutralization and titration end point, LCD screen display the measurement results, and automatically print the measurement results.

The measurement process takes seven minutes.

2. Special reagent bottles are used to hold the extraction liquid and neutralizing liquid, and the reagent is isolated from the air during use to avoid the influence of volatilization and carbon dioxide in the atmosphere.

At the same time also play a role in protecting the operator.

3. Automatic acid value tester can choose a test of 6 oil samples.

Technical indicators

Ambient temperature 10 ℃～＋30℃
Accuracy ±0.005mgKOH/g
Testing Range 0.001～1.000mgKOH/g
Differential power 0.001mgKOH/g
Reconstruct ability 0.003mgKOH/g
Power rate 300 W
Environmental Humidity ≤80%
Power Supply 220V±10% 50Hz±1%
Dimension 420 × 250 × 280 mm
Power rate 300 W
Weight 10kg
Required consumables The instrument itself has a set of reagents, after the use of their own purchase or self-matching.

Automatic Transformer Oleic Acid Value Tester Accuracy ±0.005mgkoh/G 1

Packing list

S/N Name Unit Quantity Remarks
1 SH108 Automatic acid value tester set 1
2 Sample oil cup piece 3
3 Stir bar piece 3
4 extract piece 1
5 Neutralization liquid piece 1
6 Power cord (250V, 6A) piece 1
7 Insurance tube (Φ 5 × 20, 10 a), piece 1
8 Printing paper piece 1
9 Needle (6#) piece 1
10 Needle (9#) piece 1
11 Silicone tube (inner hole Φ 2 × 1) metre 1 According to the need by the user self-cutting
