Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz

  • Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz
  • Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Certification GB/T 17144-1997、ASTM D4530、ISO 10370:1993
Model Number SH109
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Heating Rate 15ºC/min(customizable) Waste Liquid Collection Bottle 200ml
Purge Gas Nitrogen 600 ～ 150mL / Min,automatic Switching The Pressure Adjustment Range 0kPa(0kg/cm2) ～ 392kPa(4kg/cm2)
The Measurement Range 0.10%(m/m) ～ 30.0%(m/m) Flow Meter 100 ～ 1000mL/min
Power Supply AC220V ± 10%,50Hz(Customizable) Dimensions 230×320×425mm
The Size Of The Combustion Chamber Φ 85 Mm × 105 M Gas Consumption Standard Nitrogen Bottle With Pressure Of 14700kPa(150kg/cm2)
Highlight

Automatic Carbon Residue Tester

,

Micro Carbon Residue Tester

,

Lab Petroleum Products Carbon Residue Analyzer
Leave a Message
Product Description

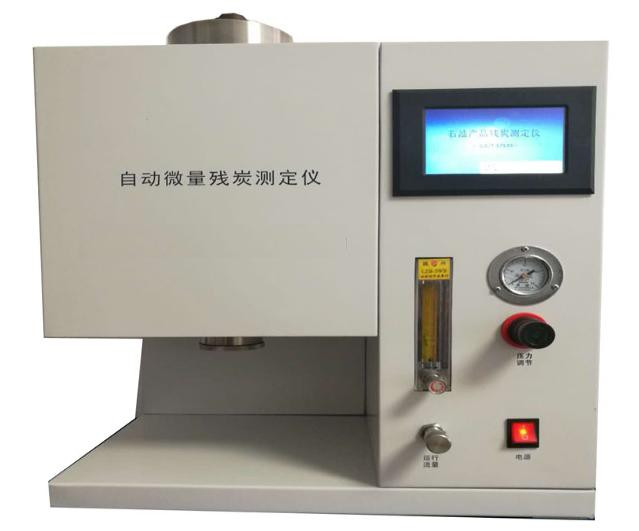

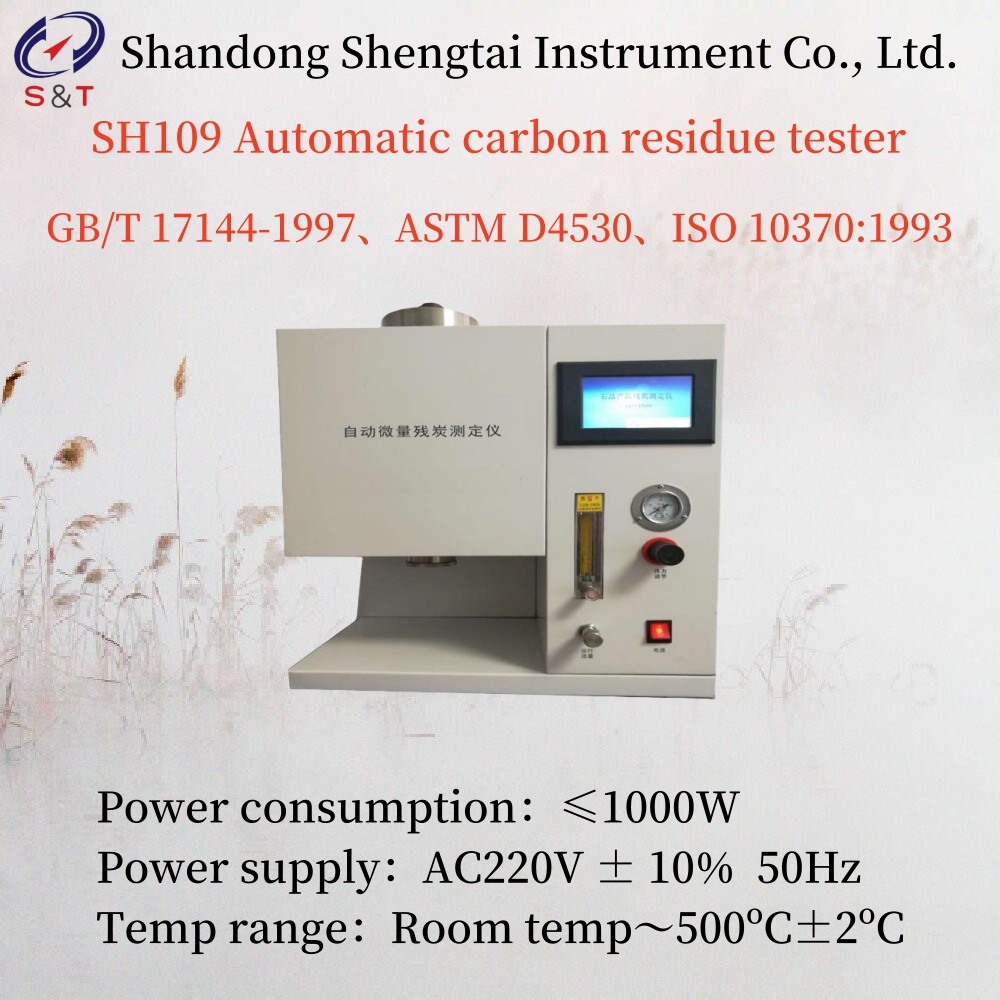

SH109 Automatic carbon residue tester

SH109 automatic carbon residue tester is designed and manufactured in accordance with the standard requirements of GB/T 17144-1997 "carbon residue determination of petroleum products (trace method)", "ASTM D4530" and "ISO 10370:1993".

It has the characteristics of beautiful appearance and convenient operation.

The test results are consistent with those of GB/T268(Conrad's method), and it is also suitable for the detection of petroleum products with a carbon residue value of less than 0.10(m/m) and composed of distilled oil.

Automatic Carbon Residue Tester (Micromethod) GB/T17144-1997

Automatic Carbon Residue Tester (Micromethod)

ASTM D4530 Micro Method Automatic Carbon Residue Tester

Automatic ASTM D4530 Micro Method Fuel Carbon Residue Tester

Mcrt Micro Method Automatic ASTM D4530 Fuel Carbon Residue Tester

Micro Method Automatic ASTM D4530 Fuel Carbon Residue Tester

ASTM D4530 Micro Method Automatic Marine Fuel Carbon Residue Tester

Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz 0

performance characteristics

1. Adopt 5 color LCD touch screen automatic calculation, optional printing function, main board with communication interface.

2. The whole heating process program control, automatic control of heating rate, automatic control of the set temperature, stable temperature control.

3. Display instrument is in a state of "purge", "temperature rise" and "constant temperature"

4. Adopt embedded operating system, temperature rise, flow automatic control, real-time display experiment process

5. Can edit the input sample tube, sample quality, automatic calculation of carbon residue value.

6. Can store hundreds of groups of historical data, convenient query.

Historical data can be queried by date



Main technical parameters

Power consumption

≤1000W

Temperature range

Room temperature ～ 500ºC ± 2ºC

Temperature control

According to standard procedures

Temperature heating rate

15ºC/min(customizable)

Waste liquid collection bottle

200ml

Purge gas

Nitrogen 600 ～ 150mL / min,automatic switching

The pressure adjustment range

0kPa(0kg/cm2) ～ 392kPa(4kg/cm2)

The measurement range

0.10%(m/m) ～ 30.0%(m/m)

Flow meter

100 ～ 1000mL/min

Power supply

AC220V ± 10%,50Hz(Customizable)

Dimensions

230×320×425mm

The size of the combustion chamber

Φ 85 mm × 105 m

Set time error

< 0.1 s

Gas consumption

standard nitrogen bottle with pressure of 14700kPa(150kg/cm2)

Overall dimension: 230×320×425mm weight:19kg

Power Consumption ≤1000W Automatic Carbon Residue Tester AC220V±10% 50Hz 1

Packing list

S/N

Name

Unit

Quantity

Remarks

1

Micro carbon residue tester

set

1



2

Small sample test tube

piece

10



3

Large sample test tube

piece

10



4

Sample tube rack

piece

1



5

Power cable

piece

1



6

instructions

copy

1



7

Certificate warranty card

copy

1
