Measuring Range 5000～20000 MPa.S Apparent Viscosity Measuring Instrument AC220V±20%

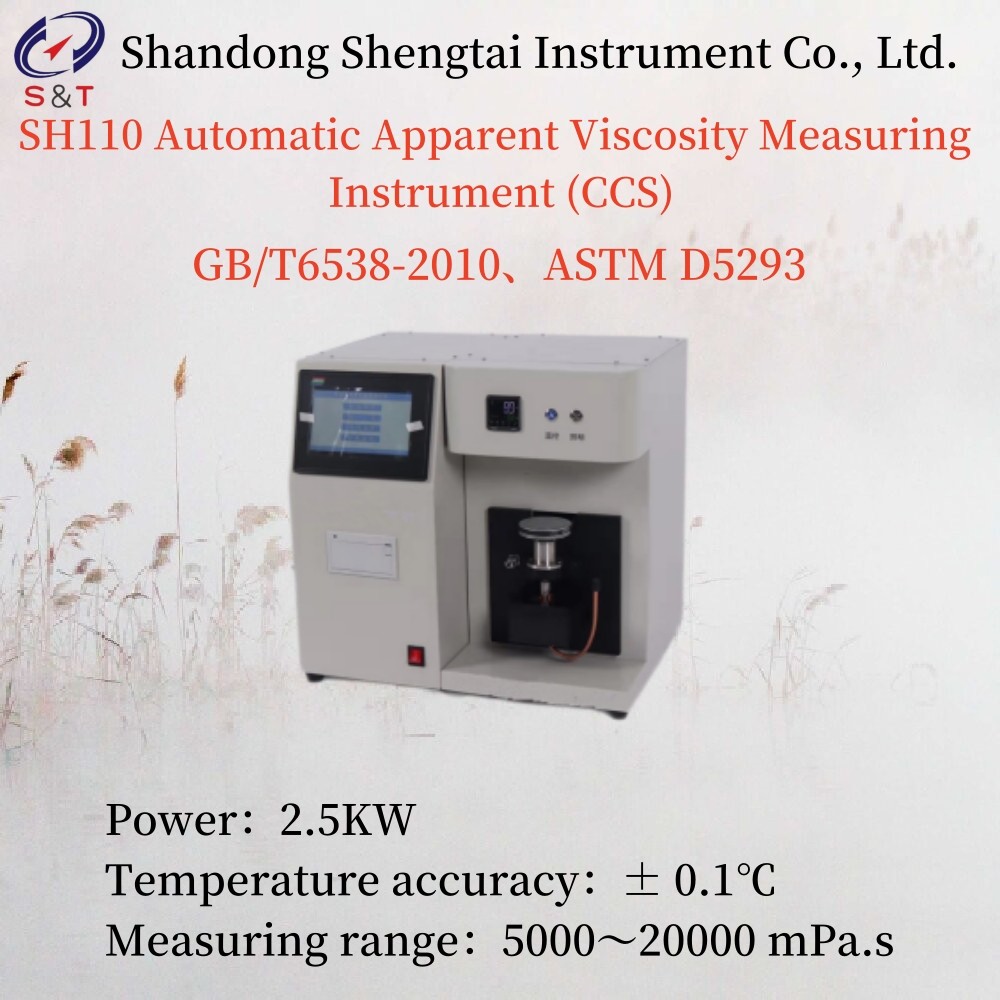

SH110 Automatic Apparent Viscosity Measuring Instrument (CCS)

SH110 automatic apparent viscosimeter (CCS) conforms to GB/T6538-2010, ASTM D5293 and other technical specifications;

Suitable for testing the low temperature dynamic viscosity index of engine oil.

The instrument can measure the apparent viscosity of oil at temperatures ranging from -35℃ to -5℃ with an interval of 5℃.

It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.

It is suitable for measuring the apparent viscosity of engine oil at -5~-30℃ under the condition of shear stress of about 500 ~ 20000 mPa. S and shear rate of 105~104 s-1.

The instrument adopts automatic temperature control equipment, users only need to operate on the color touch screen can be convenient for testing and analysis.

ASTM D5293 ASTM D2602 Cooling CCS Method Automatic Engine Oils Apparent Viscosity Tester

Cold Cranking Simulator (CCS) The Apparent Viscosity of Engine Oils for Measuring

ASTM D5293 CCS Cold-Cranking Simulator Engine Oil Apparent Viscosity Tester

Engine Oils CCS Cold Cranking Simulator/Apparent Viscosity Tester Price

Engine Oils and Base Stocks Apparent Viscosity Tester by CCS

ASTM D5293 CCS Cold-Cranking Simulator Engine Oils and Base Stocks Apparent Viscosity Tester

Parameter &Instrument features:

●Temperature range:Normal temperature ～－70℃

●Apparent viscosity Temp range:－35℃ to －5℃

●Temperature accuracy:± 0.1℃

●Viscosity range:5000～20000 mPa.s

● Results Repeatability:±5%

●Sample Volume:5～6ml

● The instrument adopts advanced microcomputer control, touch screen human-computer interaction, calculation, display, printing automation.

●Language of operation interface: optional setting (English);

● Imported Omron temperature controller;

● Imported compressor duplicated refrigeration, large cooling capacity

● Automatic detection speed, fine tuning knob to control the current, reduce manual error;

● Adopt imported motor drive, high precision;

● Can store and print experimental results

● Automatic calculation results after calibration of standard oil;

● Adopt embedded operating system, work stably and reliably;

● The end of the test automatically shut down, and heating, in order to facilitate rapid cleaning,

● Storage method: the experimental results can store 1000 sets of historical data for easy query.

● The system can set the temperature according to the user, according to the nonlinear curve to reach the set temperature

● The user can first calibrate the instrument with standard oil. After the calibration, the relationship between viscosity and motor speed can be described

● The instrument has calibration function, which can easily and quickly calibrate each part of the system

Technical parameters

Packing list
