Heating Power 1.2KW Hydraulic Oil Thermal Stability Tester AC220V±10% 50Hz Accuracy ±0.5℃

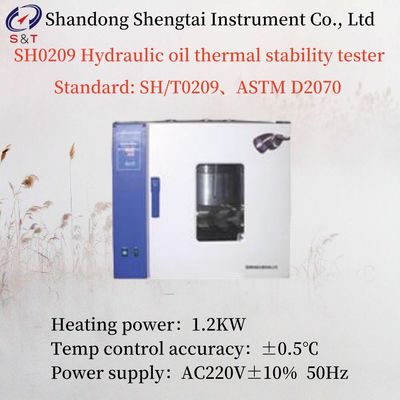

SH0209 Hydraulic oil thermal stability tester

SH0209 hydraulic oil thermal stability tester, this instrument according to SH/T0209 "hydraulic fluid thermal stability determination method" manufacturing, this instrument is suitable for the determination of mineral oil type and forming hydraulic fluid.

Hydraulic Fluid Oil Thermal Stability Tester

ASTM D2070 - Thermal Stability of Hydraulic Oils

Performance characteristics:

Temperature measurements are made using a PT100 sensor.

The sensor is sensitive, reliable, can quickly and timely reflect the temperature changes, through the digital display PID temperature controller control, can fully ensure the standard requirements of temperature control precision.

The instrument shape adopts the integral frame structure, the internal space is large.

The shell is made of high quality cold-rolled steel plate, and the surface is treated by spraying technology. The shape is novel and beautiful.

The inner liner is made of stainless steel plate after anticorrosion treatment, processing and forming.

There is a double glass observation window in the middle of the door, which can observe the situation of heated objects in the working room at any time.

The door of the box is inlaid with high temperature resistant adhesive strip, which has good sealing ability to prevent heat loss.

The air outlet is set at the back of the studio, which can discharge the moisture released by the heater out of the box at any time during the working process.

The temperature in the box is forced to circulate by the fan to ensure that the temperature uniformity is controlled within ±2.5%.

Technical parameters:

Heating method: Stainless steel electric heating tube heating

Heating power :1.2KW

Temperature control range: room temperature ～ 135℃

Temperature control accuracy: ±0.5℃

Temperature control mode: imported digital display PID temperature controller

Test unit 6 holes

Studio size:(length × width × height) 450 * 450 * 350 mm

Working power supply AC220V±10% 50Hz

Work environment relative humidity: 80% temperature: 0 ～ 45 ℃

Temperature uniform : fan circulation

Test time digital: display timing

Do sample prompt: sound prompt

packing list
