Power Supply AC220V Hydraulic Oil Filter Tester Timing Range 0～999h Temp Range 0～60℃

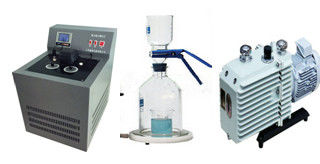

SH0210 hydraulic oil filter tester

SH0210 hydraulic oil filter tester is valuable in the evaluation of the filtration performance of hydraulic oil, all kinds of industrial hydraulic system and vehicle hydraulic system of hydraulic oil, because of the poor filtration performance of oil, caused by filter blockage is a serious problem.

Especially when the hydraulic system is mixed with a small amount of water, the blocking of the hydraulic system filter is more serious, which causes the failure of hydraulic transmission, the wear and damage of the hydraulic pump and other components.

Main features

Fully enclosed imported compressor refrigeration, to ensure the supply of cold capacity;

Special rotary vane vacuum pump, provide enough vacuum;

Glass fittings meet the requirements of SH/T0210 standard;

Digital display time, simple operation;

Stainless steel constant temperature bath;

Glass funnel with scale;

Precision pressure regulating valve, the pressure can be controlled within the range of 86658Pa

Micro processing thermostat and PID control, digital display temperature, precision 0.1℃, PT100 RTD temperature probe;

Operating temperature range: room temperature ～ 80°C;

Safety measures to prevent overheating or low liquid levels

Technical parameters

Applicable standard: SH/T0210

Temperature range: 0 ～ 60℃

Absorption mode: vacuum pump

Working pressure: 86658Pa

Pressure regulation: pressure regulating valve

Timing mode: digital display timer

Timing range: 0 ～ 999h

Working power supply: AC220V

Refrigeration mode: compressor refrigeration

Heating method: electric heating tube heating

Temperature control mode: digital display PID temperature controller
