Speed 1250r/Min Liquefied Petroleum Gas Density Meter Heating Power 1000W Power Supply 220V 50HZ
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | 220V 50HZ | Stirring Motor Power | 15W |
|---|---|---|---|
| Stirring Motor Speed | 1250r/min | Heating Power | 1000W |
| Temperature Control Accuracy | 15±0.2℃ Or 20±0.2℃ | Cylinder Pressure Range | 0～1.4Mpa |
| Instrument Size | 490*350*550mm | Weight | 27kg |
| Highlight | Liquefied Petroleum Gas Density Meter,Measuring density of liquefied petroleum gas,LPG Density Meter |
||
Product Description

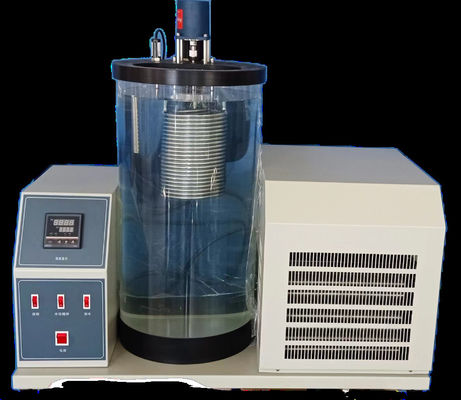

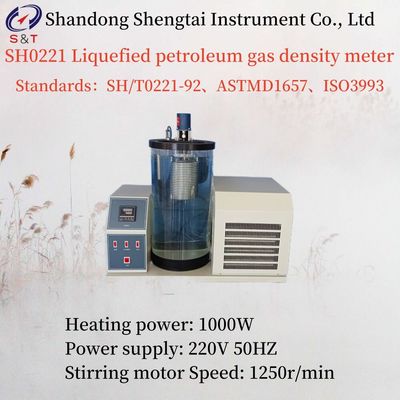

SH0221 Liquefied petroleum gas density meter
SH0221 Liquefied petroleum gas density tester (pressure densitometer method) is used to measure liquefied petroleum gas and light hydrocarbon according to the standards of SH/T0221-92, ASTMD1657 and ISO3993 "Determination of density or relative density of liquefied petroleum gas and light hydrocarbon (pressure densitometer method)".
At the test temperature, the vapor pressure (gauge pressure) is higher than 1.4MPa sample, should not use this instrument.
ASTM D1657 LPG Density or Relative Density Tester by Pressure Hydrometer
ASTM D1657 LPG Density or Pressure Hydrometer Relative Density Test Instrument
Functional features
1. three valves are made of 1Cr18Ni9Ti material, can withstand 4Mpa pressure.
2. The cylinder is made of transparent plexiglass, and both ends are sealed with metal end plates and neoprene gaskets.
3. The water bath is made of 1Cr18Ni9Ti material. The electric heater and electric stirring device are installed in the bath, and the temperature automatic adjustment system can meet the test temperature of 15±0.2℃ or 20±0.2℃.
4. Temperature control device adopts digital display, sensitive reaction, accurate temperature control.
5. The agitator is composed of motor, stirring shaft and blade, with low noise and high efficiency.
6. Compressor refrigeration is adopted
Technical parameters
1.Power supply: 220V 50HZ
2. Stirring motor
B. Power: 15W
C. Speed: 1250r/min
3. Heating power: 1000W
4. Temperature control accuracy: 15±0.2℃ or 20±0.2℃
5. Cylinder pressure Range: 0～1.4Mpa
6.Instrument size: 490*350*550mm Weight: 27kg
| Power supply | 220V 50HZ |
| Stirring motor Power | 15W |
| Stirring motor Speed | 1250r/min |
| Heating power | 1000W |
| Temperature control accuracy | 15±0.2℃ or 20±0.2℃ |
| Cylinder pressure Range | 0～1.4Mpa |
| Instrument size | 490*350*550mm |
| Weight | 27kg |
PACKING LIST
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Special cylinder for density | 1 | piece | |
| 3 | Power cord | 1 | piece | |
| 4 | instructions | 1 | copy | |
| 5 | Packing list | 1 | copy | |
| 6 | Certificate warranty card | 1 | copy |
SH0221 Liquefied petroleum gas density tester (pressure densitometer method) is used to measure liquefied petroleum gas and light hydrocarbon according to the standards of SH/T0221-92, ASTMD1657 and ISO3993 "Determination of density or relative density of liquefied petroleum gas and light hydrocarbon (pressure densitometer method)".
At the test temperature, the vapor pressure (gauge pressure) is higher than 1.4MPa sample, should not use this instrument.
ASTM D1657 LPG Density or Relative Density Tester by Pressure Hydrometer
ASTM D1657 LPG Density or Pressure Hydrometer Relative Density Test Instrument
