Crude Oil Wax Precipitation Point Tester Temp Resolution 0.01℃

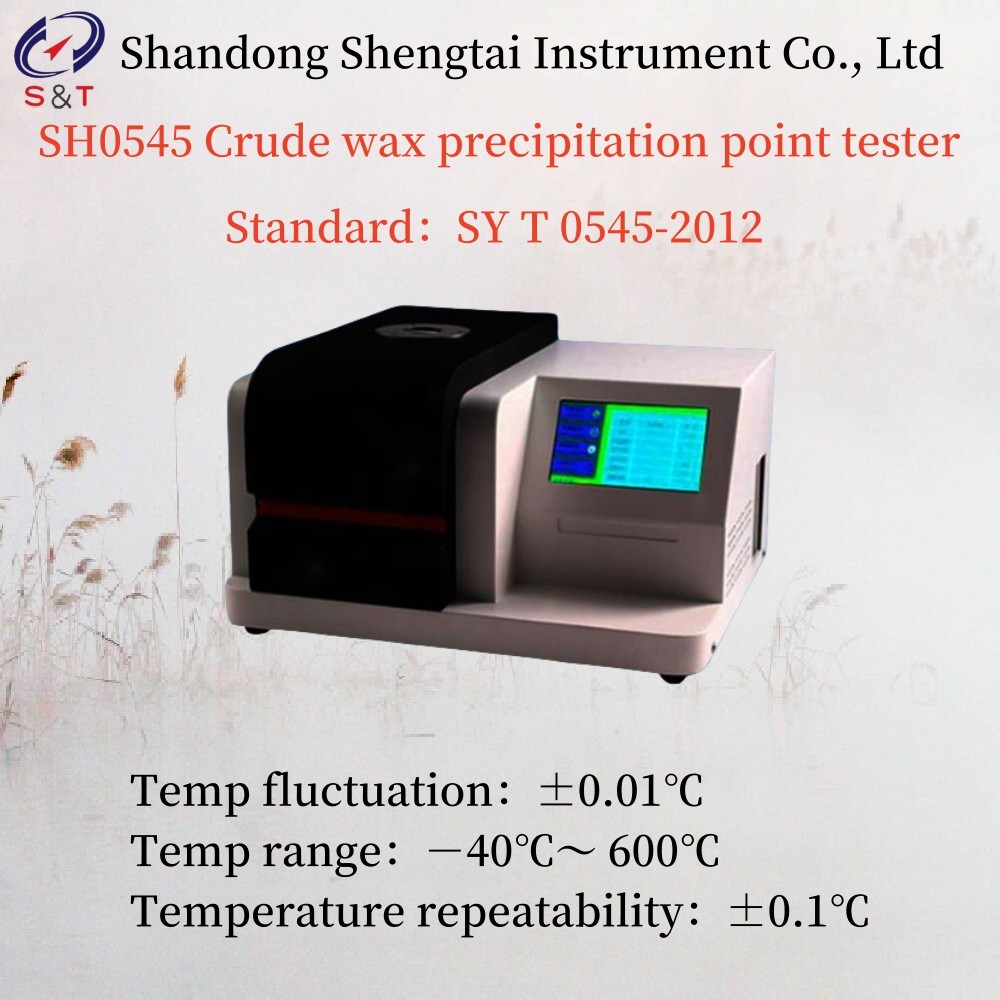

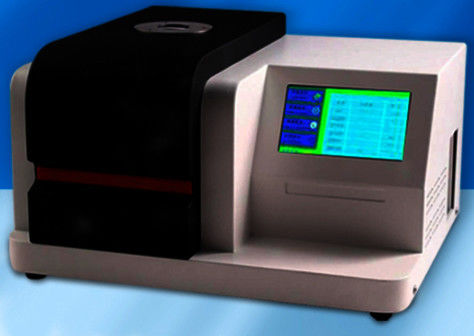

SH0545 crude wax precipitation point tester

SH0545 automatic crude oil wax precipitation point detector/meter/tester is touch screen type, can conduct glass transition temperature test, phase transition test, melting and thermal enthalpy value test, product stability, curing, specific heat, oxidation induction period test and other tests wax precipitation point :The temperature when the wax crystals just begin to precipitate from the crude oil liquid system, and the sample curve begins to deviate from the baseline corresponding to the exothermic peak, expressed in Tc.

The crude oil sample is heated to above the temperature of the precipitation point, and then cooled at a certain speed, the differential heat flow between the sample and the reference at each temperature point is recorded, and the crude oil wax analysis curve is drawn as the vertical coordinate and the temperature as the abscissa Automatic Crude Oil Wax precipitation Point Tester

Technical performance parameters:

●Standard:SY T 0545-2012 Thermal characteristics of crude oil and wax analysis

●Temp range:-40℃～ 600℃；

●Temp resolution: 0.01℃

●Temp fluctuation:±0.01℃

●Temperature repeatability:±0.1℃

●Heating rate:0.1～100℃/min

●Cooling rate:0.1～20℃/min

●Constant tempe time:Program setting≤24h

●Curve scan: heating scanning, cooling scanning

●Display mode: using the human body sensing type touch screen

●USB communication interface, strong versatility, reliable communication without interruption, support for self-recovery connection function

●Metal furnace body structure, heating using indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode.

●Display mode: 7-inch LCD touch screen display

●Data interface: the standard USB interface

●Instrument size: 480 * 430 * 490mm weight 35kg

Packing list
