ASTM D4807 Mechanical Impurity Tester of Petroleum Host AC220V±10% 50Hz
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | AC220V±10% 50HZ | Temperature Control Accuracy | ≤± 1 ℃ |
|---|---|---|---|
| Ambient Temperature | ≤ 35 ℃ | Relative Humidity | ≤ 85% |
| Air Pump | Self-contained Air Pump, Without External Air Source | Heating Method | Metal Bath Heating |
| Heating Range | Room Temperature ～ 100℃ | Heating Power | 2.0KW |
| Overall Dimension | 480× 335×490mm | Weight | 15kg |
| Highlight | Grease Lube Oil Mechanical Impurities Tester,ASTM D4807 Mechanical Impurities Tester,Petroleum Mechanical Impurities Tester |
||
Product Description

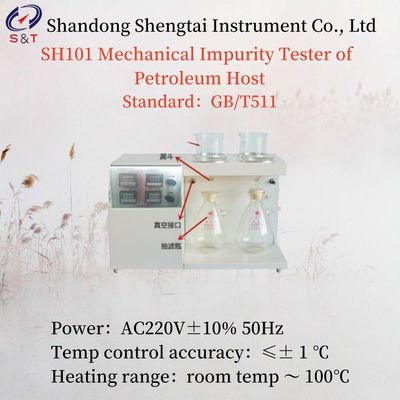

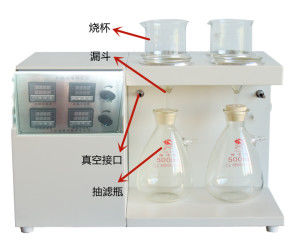

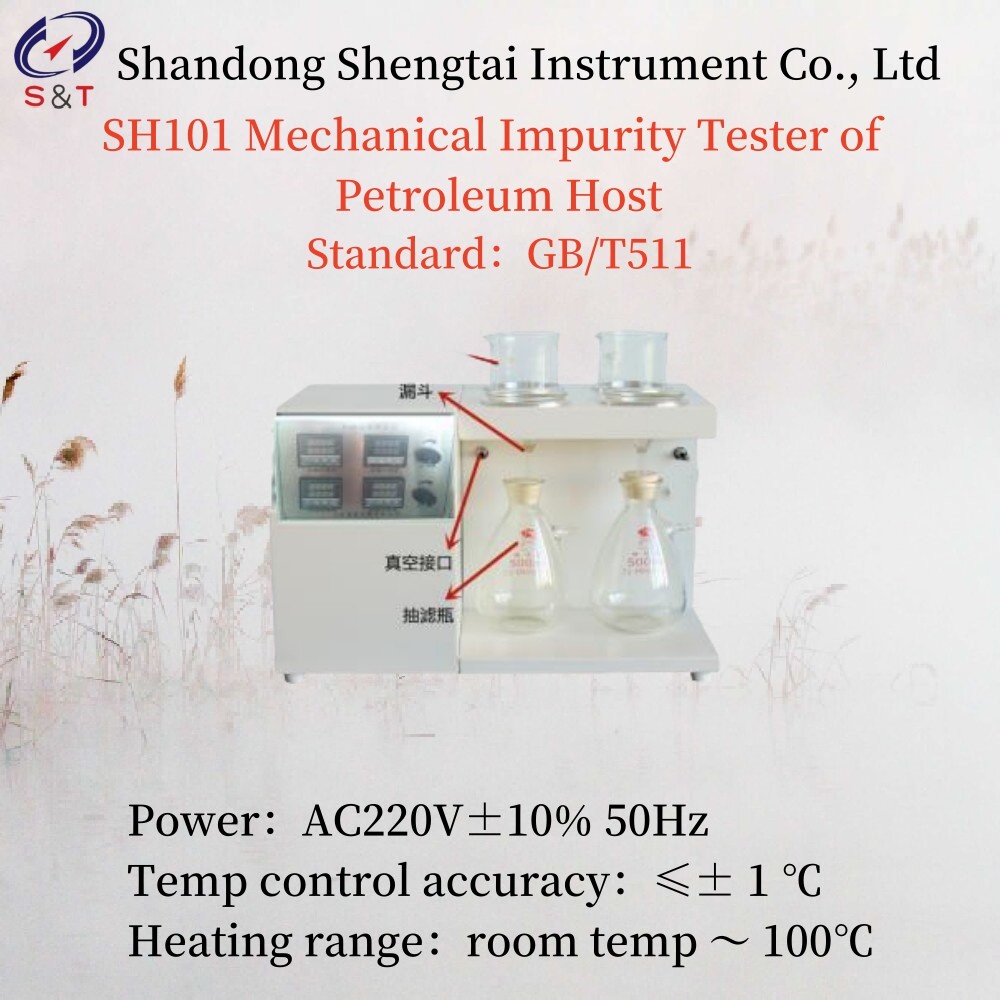

SH101 Mechanical Impurity Tester of PetroleumHost
SH101 mechanical impurity tester is designed according to the requirements of the national standard GB/T511 "Petroleum products and additives mechanical impurity determination method (weight method)". It is suitable for the determination of all kinds of light and heavy oil, lubricating oil and additives mechanical impurity content in petroleum products.
The water bath adopts glass bathtub, which can be loaded with 2 beakers, double control box, and can simultaneously carry out two high and low temperature filtration experiments
Scope of application: suitable for all kinds of light and heavy oil in petroleum products
Petroleum Product Tester Mechanical Impurity Tester
Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity Analyzer
Mechanical Impurity Tester of Petroleum Products and Additive by Weight Method
ASTM D4807 Mechanical Impurity Tester of Petroleum Products and Additive
ASTM D4807 Weight Method Mechanical Impurity Tester of Petroleum Products and Additive
Accuarate Petroleum Heavy Oil Lubricating Oil Mechanical Impurities Tester (PC-511)
Product Paramenters
| No. | Tech Indicator | Description |
| 1 | Power |
AC220V±10% 50Hz (Can be changed to your country request) |
| 2 | Temperature control accuracy | ≤± 1 ℃ |
| 3 | Environmental requirements |
Ambient temperature: ≤ 35 ℃ Relative humidity: ≤ 85% |
| 4 | Air pump | self-contained air pump, without external air source |
| 5 | Heating method | metal bath heating |
| 6 | Characteristics |
♦Vacuum Suction Device ♦Easy to Operation ♦Testing Exactly ♦Result Reliable |
| 7 | Heating range | room temperature ～ 100℃ |
| 8 | Heating power | 2.0KW |
| 9 | Overall dimension: 480× 335×490mm Weight: 15kg | |
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | Built-in vacuum pump |
| 3 | Temperature sensor | 1 | piece | In the built-in instrument |
| 4 | Suction bottle (500ml, including 9# white plug) | 2 | set | |
| 5 | Glass funnel Ф (90) | 2 | piece | |
| 8 | power cord | 1 | piece | |
| 10 | Operating instruction | 1 | copy | |
| 11 | packing list | 1 | copy | |
| 12 | Certificate of approval | 1 | copy |
SH101 mechanical impurity tester is designed according to the requirements of the national standard GB/T511 "Petroleum products and additives mechanical impurity determination method (weight method)". It is suitable for the determination of all kinds of light and heavy oil, lubricating oil and additives mechanical impurity content in petroleum products.
The water bath adopts glass bathtub, which can be loaded with 2 beakers, double control box, and can simultaneously carry out two high and low temperature filtration experiments
Scope of application: suitable for all kinds of light and heavy oil in petroleum products
Petroleum Product Tester Mechanical Impurity Tester
Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity Analyzer
Mechanical Impurity Tester of Petroleum Products and Additive by Weight Method
ASTM D4807 Mechanical Impurity Tester of Petroleum Products and Additive
ASTM D4807 Weight Method Mechanical Impurity Tester of Petroleum Products and Additive
Accuarate Petroleum Heavy Oil Lubricating Oil Mechanical Impurities Tester (PC-511)
