Heating Power 700W Density Meter For Petroleum Products With Refrigeration
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC(220±10%)V 50HZ | Tube Cylinder | 500ml |
|---|---|---|---|
| Heating Power | 700W | Temperature Controller Range | Ambient To 100℃ |
| Temperature Controller Accuracy | ±0.1℃ | Measuring Hole Number | 2 Holes |
| The Bath Volume | Ф 250 × 300 Mm | Overall Dimension | 320 * 380 * 530mm |
| Cooler Size | 330*330*350mm | Cooler Weight | 10kg |
| Highlight | Density Meter For Petroleum Products,Density Meter for Petroleum Industry,Petroleum Products Density Tester |
||
Product Description

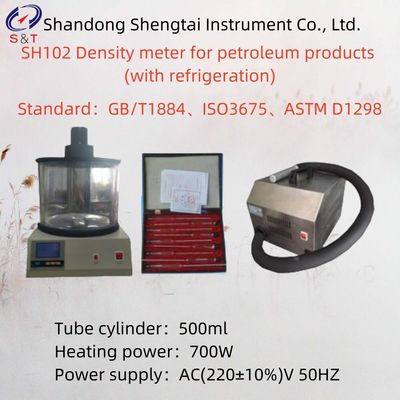

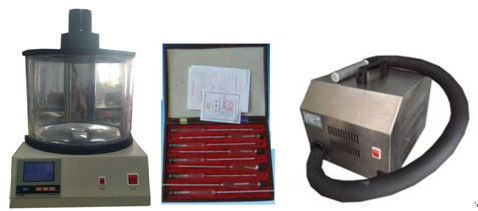

SH102 Density meter for petroleum products (with refrigeration)
Density tester for petroleum product is based on the People's Republic of China standard GB/T 1884 "petroleum and liquid petroleum product density determination method (densimeter method)" the requirements of the design and manufacture, is the liquid petroleum product density tester developed by our company, suitable for the determination of crude oil and liquid petroleum product density.
GB/T1884,ISO3675,ASTM D1298,DIN 51757,JIS K2249,IP 160
ASTM D1298 Density, Relative Density and API Hydrometer Equipment
Petroleum Products Density Tester ASTM D1298 density tester
Crude Oil Hydrometer by ASTM D1298
ASTM D1298 Density Tester of Crude and Liquid Petroleum Products
I. Main technical features
1. The instrument adopts the form of all-in-one machine, the control box adopts the humanized design, the control switch adopts the form of light touch key, the design is novel, the structure is compact, the operation is comfortable, beautiful and generous.
2. Digital tube display temperature controller, rapid temperature control, fast response, small overshoot, temperature control accuracy up to ±0.2℃.
3. The use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.
II. Main technical parameters and indicators
| Power supply | AC(220±10%)V 50HZ |
| Tube cylinder | 500ml |
| Heating power | 700W |
| Temperature controller |
(1) Range: Ambient to 100℃ (2) Accuracy: ±0.1℃ (3) Sensor: Pt100 |
| Thermometer | Mercury-in-glass thermometer. Scale division is 0.2℃ |
| Measuring hole number | 2 holes |
| 10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm | |
| the bath volume | Ф 250 × 300 mm. |
| Overall dimension: 320 * 380 * 530mm weight:12kg | |
| Cooler size: 330*330*350mm weight:10kg | |
Packing List
| S/N | Name | Quantity | Unit | Note |
| 1 | Host | 1 | set | |
| 2 | Water bath crock | 1 | piece | |
| 3 | Bath cover assembly | 1 | set | 2 measuring cylinders can be placed |
| 4 | Cryogenic refrigerating plant | 1 | set | Compressor refrigeration |
| 5 | Control cable | 1 | piece | |
| 6 | fuse tube | 1 | piece | |
| 7 | Measuring cylinder 500 ml | 2 | piece | |
| 8 | Operating instruction | 1 | copy | |
| 9 | packing list | 1 | copy | |
| 10 | Certificate of conformity warranty card | 1 | copy |
10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm
Density tester for petroleum product is based on the People's Republic of China standard GB/T 1884 "petroleum and liquid petroleum product density determination method (densimeter method)" the requirements of the design and manufacture, is the liquid petroleum product density tester developed by our company, suitable for the determination of crude oil and liquid petroleum product density.
GB/T1884,ISO3675,ASTM D1298,DIN 51757,JIS K2249,IP 160
ASTM D1298 Density, Relative Density and API Hydrometer Equipment
Petroleum Products Density Tester ASTM D1298 density tester
Crude Oil Hydrometer by ASTM D1298
ASTM D1298 Density Tester of Crude and Liquid Petroleum Products
