80 Sets Of Data Storage Automatic Density Tester Power Supply 220V±22V 50Hz±1Hz 50VA

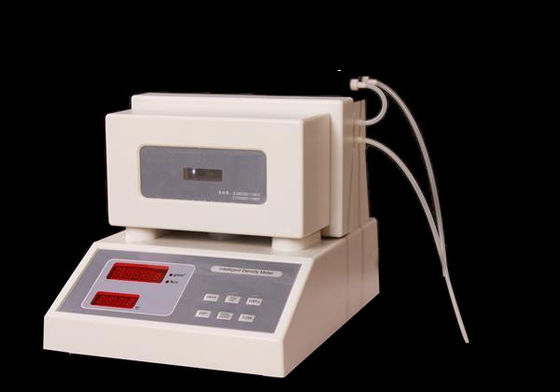

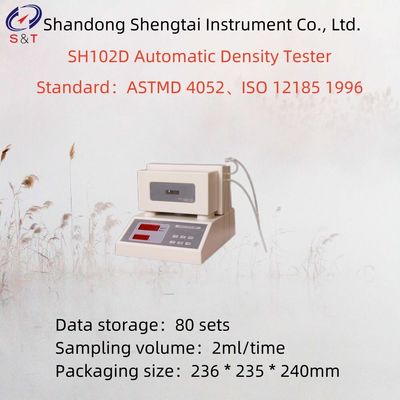

SH102D Automatic Density Tester

SH102D Automatic Density Tester adopts the principle of U-type tube oscillation method, effectively combines Partier accurate temperature control technology

This method measures the liquid density according to the principle of different oscillation frequency when double U tubes are filled with different media, complying with GB / T2013-2010 and GB / T29617-2013 and ASTMD 4052. U-shaped vibrating tube densitometer adopts the international standard ISO 12185 1996 "Densitometry of Crude oil and petroleum Products- -U-shaped vibrating tube method" also meets the requirements of SH/T0604-2000 "Liquid density and Relative density method (digital densitometer)" standard

Testing principle:

Inject a small amount of sample into a temperature controlled sample tube, record the vibration frequency or period, and calculate the density of the sample using the previously obtained sample tube constant. The constant of the sample tube is determined by the vibration frequency of the sample tube when it is filled with a known density calibration solution. The instrument will directly display the density value after injecting the sample into the sample tube

Main technical parameters:

● Measurement range of density: 0.001～1.999g/cm³

● Density measurement accuracy: ± 0 001g/cm³

● Density value resolution: ± 0 001g/cm³

● Constant temperature control: 20℃± 0.1℃ (can be customized for any temperature between 15～35℃)

● Sampling volume: 2ml/time

● Data storage: 80 sets

● Environmental temperature requirements: 5℃～35℃

● Power supply: 220V ± 22V, 50Hz ± 1 Hz, 50VA

● External dimensions: 206mm × 205mm × 200mm

● Instrument weight: 3.2Kg

● Packaging size: 236 * 235 * 240mm

● Weight: 3.5kg

SH102D Automatic Density Tester adopts the principle of U-type tube oscillation method, effectively combines Partier accurate temperature control technology

This method measures the liquid density according to the principle of different oscillation frequency when double U tubes are filled with different media, complying with GB / T2013-2010 and GB / T29617-2013 and ASTMD 4052. U-shaped vibrating tube densitometer adopts the international standard ISO 12185 1996 "Densitometry of Crude oil and petroleum Products- -U-shaped vibrating tube method" also meets the requirements of SH/T0604-2000 "Liquid density and Relative density method (digital densitometer)" standard
