Power 40W Karl Fischer Trace Moisture Meter For Various Oils Power Supply 220V±10% 50Hz

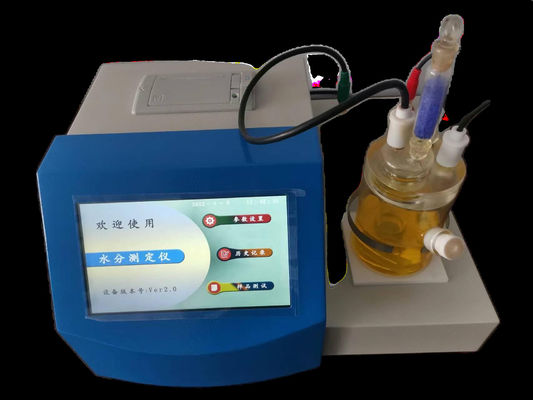

SH103 Trace moisture meter

SH103 Trace moisture tester adopts microcomputer automatic control,According to the principle of Carl Fischer Coulomb titration, compared with similar products at home and abroad, it has the advantages of high sensitivity, fast electrolysis speed, short balance time, accurate blank deduction, accurate and reliable analysis results, etc.

Automatic Trace Moisture Tester

Trace Moisture Content Meter for Petroleum Products

Trace Moisture Meter ASTM D1744

Karl Fischer Trace Moisture Meter for Oils

Automatic Trace Moisture Meter Karl Fischer Moisture Meter

Karl Fischer Trace Moisture Meter for Various Oils

karlfisher apartus

It is a high quality analytical instrument for petroleum, chemical, electric power, environmental protection, medicine, scientific research and other departments.

The instrument adopts 32-bit embedded microprocessor as the main control core, embedded in the mini-operating system;

The instrument comes with constant current detection, double circuit balance titration function;

The electrolytic tank adopts waterproof and sealed design;

Support multiple calculation formulas, in line with the standard GBT11133 and ASTMD 0304.

Technical parameters:

Carl, -- Hugh coulomb's law, to determination of trace moisture of different materials, in line with the GB/T11133, this trace moisture meter and the success of the application of this method, and used the micro computer control, its fast analysis speed, high precision, Chinese LCD color screen display, automatic printing, double CPU design, blank current deducted automatically and instrument fault self-diagnosis function, menu selection, and other functions, to achieve a better operation and use, has simple operation, automatic analysis instrument.

It is an instrument for oil moisture analysis

Display mode: color touch screen display

Titration method: microcomputer controlled electric titration

Output mode: automatic calculation, can output ug, PPM and %

Measurement range: 0.00001% to 100% as a percentage, 0.1 PPM to 1 million PPM as per PPM

Separation rate: 0.1ug

Electrolysis control: automatic electrolysis current tracking control (up to 400mA)

Titration speed: 2.5mg/min(Max)

Sensitivity: 0.1ug-- 100g not more than 2%, converted to 0.3% above 1mg (excluding injection error)

Power: 60 va

Ambient temperature: 5-40℃

Operating ambient temperature: ≤ 90%

Required consumables: special Karl Fischer reagents, the instrument itself with a set of reagents, after use can be purchased or equipped by themselves.DL/T 915-05,GB 5832-1986

Specification

Meet the following standards:

1. GB/T7600 "in operation transformer oil moisture content determination method (coulomb method)"

2. GB6283 "chemical products in the determination of moisture content Karl Fischer method (general method)"

3. SH/T0246 "determination of water content in light petroleum products (electric quantity method)"

4. SH/T0255 "additives and lubricating oil containing additives moisture determination method (electric quantity method)"

5. GB/T11133 "Determination of water content in liquid petroleum products (Karl Fischer method)"

6. GB/T7380 "surfactant water content determination (Karl Fischer method)"

7. GB10670 "industrial fluoromethane in the determination of trace moisture in the Karl Fischer method"

GB/T606 General method for determination of moisture in chemical reagents Karl Fischer method

9. GB/T8350 "denatured fuel ethanol"

10. GB/T8351 "automotive ethanol gasoline"

11. GB/T3776.1 "pesticide emulsifier moisture determination method"

12. GB/T6023 Determination of trace moisture in butadiene for industrial use - Karl Fischer Coulomb method

13. GB/T3727 Industrial ethylene, propylene determination of trace water

GB/T7376 Determination of trace moisture in fluoroalkanes for industrial use

GB/T18619.1 Determination of water content in natural gas -- Karl Fischer - Coulomb method

16. GB/T512 "grease moisture determination method"

17. GB/T1600 -- Determination of pesticide moisture

18. GB/T11146 "crude oil water content determination method (Karl Fischer coulomb method)"

19. GB/T12717 "industrial acetate test method"

GB/T5074 Coking products -- Determination of moisture

1,1, 2-tetrafluoroethane (HFC-134a) for industrial use

1 PPM = 0.0001%

Packing list
