Power 1.5KW Insulating Oil Corrosion Sulfur Tester Power Supply AC220V 50HZ
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Implementation Standard | SH/T0804、SH/T0304、ASTM D1275 | Operating Temperature | Normal Temperature ~ 200℃ |
|---|---|---|---|
| Temperature Control Accuracy | ±1℃ | Temperature Control Mode | Microcomputer Temperature Control, PT100 Sensor, PID Digital Display |
| Timing Mode | Digital Display Timer, Accuracy Deviation Per Hour Is No More Than 2 Minutes To Record The Test Time, With Time Alarm | Standard Silver Sample | Cold Rolled, 20×40×0.5mm, Purity 99.99 |
| Working Power Supply | AC220V 50HZ | Power | 1.5KW |
| Highlight | Insulating Oil Corrosion Sulfur Tester,1.5KW Insulating Oil Corrosion Sulfur Tester,220V Insulating Oil Corrosion Sulfur Tester |
||
Product Description

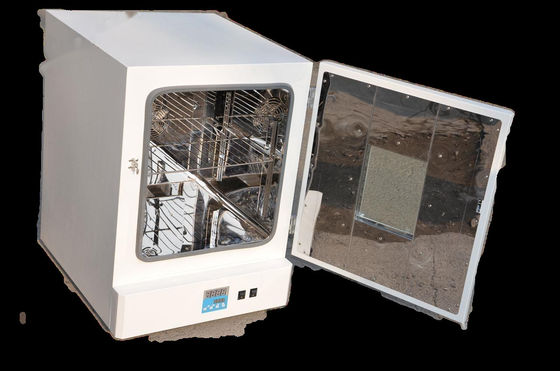

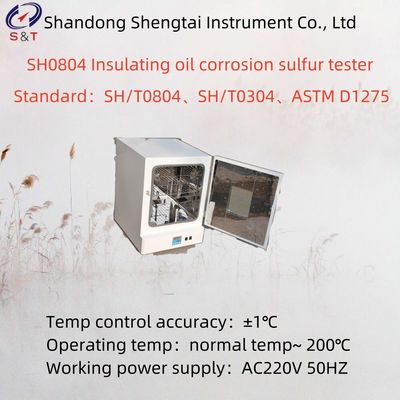

SH0804 Insulating oil corrosion sulfur tester
SH0804 electrical insulating oil corrosive sulfur tester is designed and manufactured by SH/T0804,SH/T0304standard and ASTM D1275;
Test method for the detection of corrosive sulfur affecting the operation of electrical equipment in mineral insulating oil for power equipment.
The performance characteristics of:
1. The surface of the instrument is treated with electrostatic spray, anti-corrosion and easy to clean
2. Stainless steel heating box, transparent observation window, easy operation, the top of the hole inserted thermometer, circular drum mode
3. Microcomputer temperature control, PT100 sensor, PID digital display, high temperature control accuracy
4. Digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm
Technical parameters
| Implementation standard | SH/T0804,SH/T0304,ASTM D1275 |
| Operating temperature | normal temperature ~ 200℃ |
| Temperature control accuracy | ±1℃ |
| Temperature control mode | microcomputer temperature control, PT100 sensor, PID digital display |
| Timing mode | digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm |
| Standard silver sample | cold rolled, 20×40×0.5mm, purity 99.99 |
| Working power supply | AC220V 50HZ |
| Power | 1.5KW |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Temperature sensor | 1 | piece | On the host |
| 3 | 100ml flask | 2 | piece | With plug |
| 4 |
Standard silver test piece Or Standard copper test piece |
2 | piece | |
| 5 | power cord | 1 | piece | |
| 6 | Instructions | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
SH0804 electrical insulating oil corrosive sulfur tester is designed and manufactured by SH/T0804,SH/T0304standard and ASTM D1275;
Test method for the detection of corrosive sulfur affecting the operation of electrical equipment in mineral insulating oil for power equipment.
The performance characteristics of:
1. The surface of the instrument is treated with electrostatic spray, anti-corrosion and easy to clean
2. Stainless steel heating box, transparent observation window, easy operation, the top of the hole inserted thermometer, circular drum mode
3. Microcomputer temperature control, PT100 sensor, PID digital display, high temperature control accuracy
4. Digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm
Technical parameters
| Implementation standard | SH/T0804,SH/T0304,ASTM D1275 |
| Operating temperature | normal temperature ~ 200℃ |
| Temperature control accuracy | ±1℃ |
| Temperature control mode | microcomputer temperature control, PT100 sensor, PID digital display |
| Timing mode | digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm |
| Standard silver sample | cold rolled, 20×40×0.5mm, purity 99.99 |
| Working power supply | AC220V 50HZ |
| Power | 1.5KW |
