Automatic Utterberg Kinematic Viscometer Power 2000W AC220V±10% 50HZ

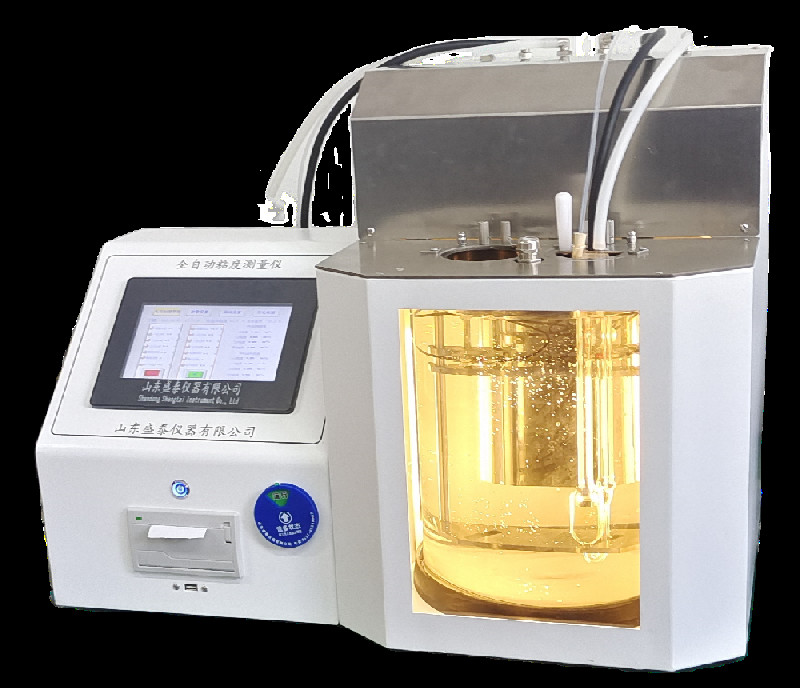

SH112G Automatic Utterberg kinematic viscometer

The SH112G fully automatic Ubbelohde viscosity tester is a testing equipment that meets the requirements of GB/T265 and GB/T1632.1-2008, and can also meet the USP<911>viscosity Ubbelohde capillary method for measuring the kinematic viscosity, viscosity number, and intrinsic viscosity of oil and polymer dilute solutions. It meets the inspection requirements of Appendix A (Determination of PET resin viscosity in dilute solution capillary viscometer method) in GB17931-2003.

Widely used in pharmacopoeia, petroleum, chemical, scientific research, metrology and other departments. The workflow of the instrument includes the automation of the entire process, including constant temperature control, detection, calculation, viscosity tube cleaning, drying, and printing of report forms.

Kinematic viscosity: It is the time it takes for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity at a constant temperature. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid measured at that temperature

Main technical indicators, parameters, and characteristics:

● Large size color touch screen display

● Using a 32-bit microprocessor as the control core

● The main components and electronic parts of the instrument are all imported, with good stability

● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying, automatic USB output and other functions

● Fast and stable temperature control, heating rate>5 ℃/min

● Equipped with LED soft light, uniform fill light, easy to observe

● Equipped with viscosity meter parameter storage function

● The microcomputer can expand the memory to 16GB

● Working viscometer:Ubbelohde capillary viscosity tube

● Viscometer fixture:made of all 304 stainless steel material, with high and low temperature resistant graphite sliding bearing device

● Measurement quantity:2 sets

● Temperature range:Room temperature ～100 ℃

● Temperature control accuracy:± 0.1 ℃

● Maximum timing time:9999.9 seconds

● Timing accuracy:no more than ± 0.01% within 60 minutes

● Ubbelohde viscosity measurement range:0.6～1000mm2/s (other ranges can be customized)

● Storage method:The experimental results can store 199 sets of historical data for easy retrieval

● Result output:It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output forma:The output format of the result USB drive is CSV or Excel

● Working power supply:AC220V ± 10%, 50HZ

● Maximum power:2000W

● Size:450 * 380 * 550 32kg

● Packaging size:520 * 480 * 650 39kg

★ Remote upgrade:Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data management:Can connect to LIMS system (optional)
