Fully Automatic Pour Point Cold Filter Point Measuring Instrument

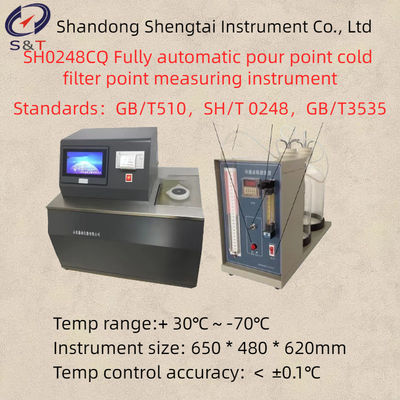

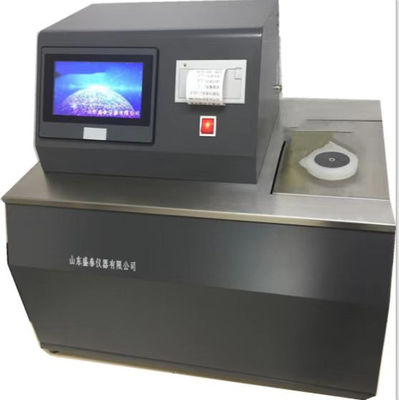

 SH0248CQ Fully automatic pour point cold filter point measuring instrument

The SH0248CQ fully automatic pour point, pour point, and cold filter point measuring instrument is based on the national standards GB/T 510 "Determination of pour point of petroleum products", SH/T 0248, and GB/T3535. It adopts modern advanced technology and integrates mechanical, optical, electronic, and computer technologies to automatically complete the testing of pour point, pour point, and cold filter point of petroleum products. This instrument uses photoelectric detection technology, glass test tube automatic tilt method, and imported compressor refrigeration system to ensure the required refrigeration depth.

Technical parameters and characteristics:

● Compliant with standards: GB/T510,SH/T 0248,GB/T3535

● Human computer interface: 7-inch color LCD touch screen

● Refrigeration method: Fully enclosed high-efficiency refrigeration compressor

● Experimental cold trap: 1 unit

● Detection method: Imported photoelectric switch detection

● After upgrading, historical data can be stored for easy retrieval; Simultaneously equipped with USB output function

● Standard micro printer with automatic measurement and printing

● After the experiment is completed, if there is no personnel operation, the automatic shutdown time of the refrigeration machine can be set arbitrarily within 0-50 minutes to avoid frequent opening of the compressor and extend the service life of the instrument

● Standard micro printer with automatic measurement and thermal printing

● Number of test holes: single hole

● Temperature range:+ 30℃～-70℃

● Temperature control accuracy: ＜ ±0.1℃

● Sample size: Place at the scale line of the test tube

● Refrigeration medium: metal bath refrigeration

● Printer: Small thermal printer

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Data memory: The memory of the microcomputer instrument can be expanded to 16GB.

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● Instrument size: 650 * 480 * 620mm Instrument weight: 75kg

● Packaging size: 690 * 520 * 660 Packaging weight: 80kg

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
