Activated Carbon Water Capacity Tester GB/T7702.5 Filter Bottle 2500ml Pressure Gauge 2 Pieces

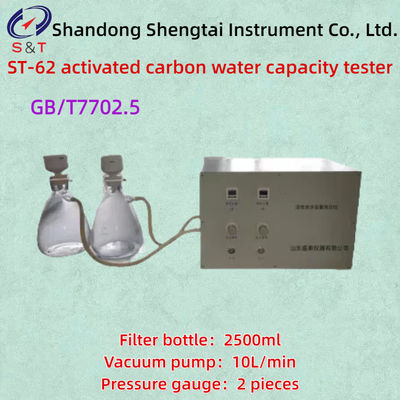

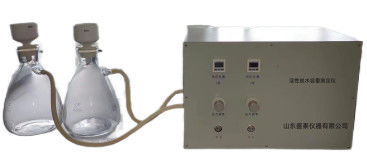

ST-62 Activated carbon water capacity tester

ST-62 activated carbon water capacity tester is suitable for measuring the water capacity of coal based granular activated carbon. It is designed and manufactured in accordance with the standard GB/T7702.5 "Test methods for coal based granular activated carbon - Determination of water capacity". The instrument consists of a vacuum pump, pressure gauge, gas regulating device, filtration device, etc., and is widely used in activated carbon laboratories.

The measuring device adopts a pressure gauge and a set of gas regulating devices for each gas path, ensuring that the vacuum degree of each filtration system can maintain the national standard requirements. Can be tested on two samples or simultaneously.

Measurement principle:

Select a certain amount of activated carbon that has absorbed saturated water, measure its maximum water absorption, and indicate the absorption capacity of the sample by the percentage of the water absorption of the activated carbon and the mass of the sample.

Main technical parameters:

●Filter bottle:2500ml

●Vacuum pump:10L/min

●Number of tests:2

●Pressure gauge:2 pieces

Customer self provided:

1.Electronic balance

2.Drying oven

Packaging and Delivery

1.Goods packaging: Standard wooden or cardboard boxes.

2.Internal packaging: The product is packaged with elastic pearl cotton, with hard wood boards and strong bandages fixed at the corners.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
