5mm Carbon Layer Impregnated Activated Carbon Saturation Sulfur Capacity Tester GB/T7702.14

Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Certification GB/T7702.14-2008
Model Number ST-64A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Water Bath Temperature 20-25 ℃ Refrigeration Method Compressor Refrigeration
Gas Relative Humidity 90% ± 5% Gas Specific Speed 0.25L/(min. Cm²)
Carbon Layer Height 5mm
Highlight

Activated Carbon Saturation Sulfur Capacity Tester

,

5mm sulfur capacity tester

,

Impregnated sulfur capacity tester

Leave a Message
Product Description

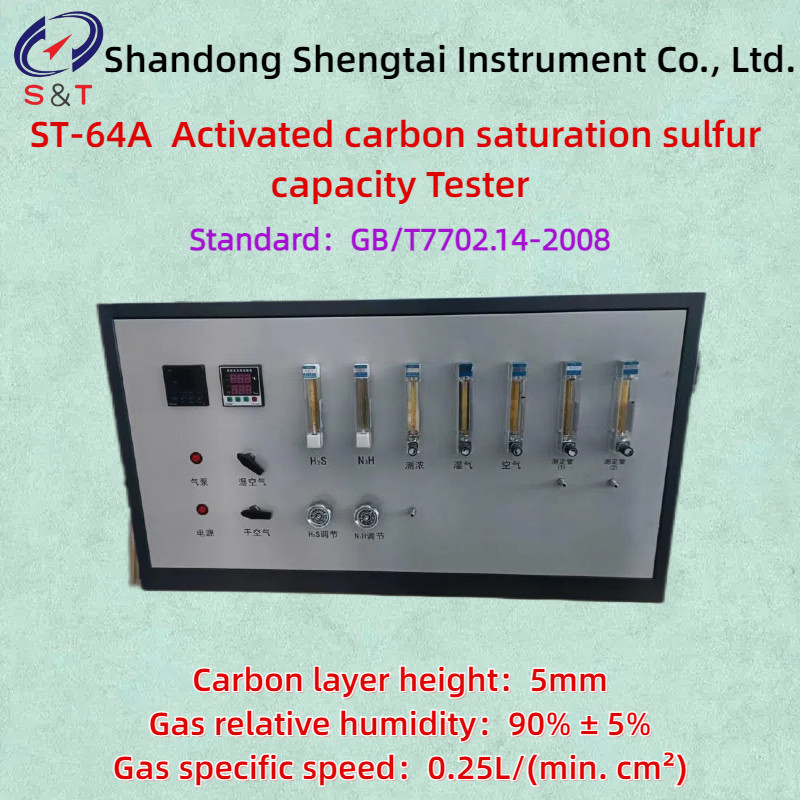

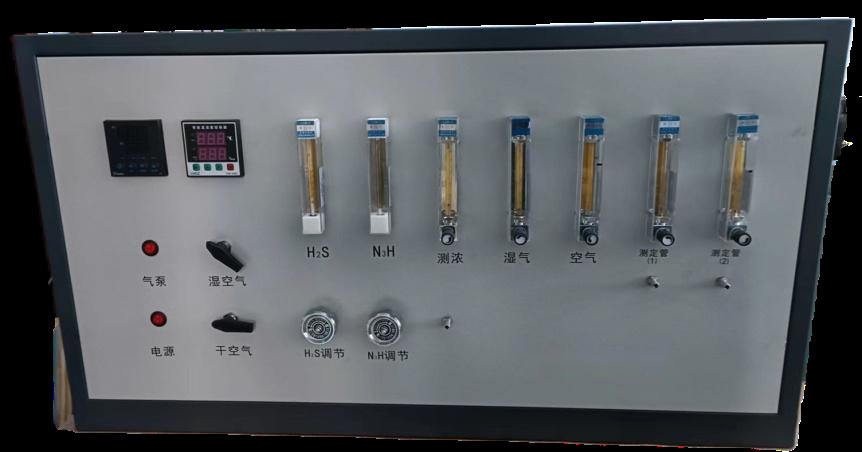

ST-64A Activated carbon saturation sulfur capacity tester
ST-64A activated carbon saturation sulfur capacity testing device is developed in accordance with the national standard GB/T7702.14-2008 "Test methods for coal based granular activated carbon - Determination of sulfur capacity". It is suitable for testing the saturated sulfur capacity of coal based granular activated carbon, as well as for testing the saturated sulfur capacity of other types of activated carbon.
Experimental principle
Under specified experimental conditions, it is beneficial for the porosity of activated carbon to adsorb hydrogen sulfide gas. In the presence of oxygen and ammonia, a catalytic reduction reaction occurs, and the precipitated elemental sulfur adheres to the activated carbon until it is fully adsorbed. The mass of saturated sulfur adsorbed on the sample is calculated, and the sulfur capacity of the activated carbon is expressed in milligrams of increments per gram of saturated adsorption of dry activated carbon sample.

5mm Carbon Layer Impregnated Activated Carbon Saturation Sulfur Capacity Tester GB/T7702.14 0
Technical parameters:
● Adsorption
Gas concentration: Mass concentration of hydrogen sulfide 5mg/L ± 0.5 mg/L
Oxygen volume fraction 0.6%~1.0%
The mass concentration of ammonia is 0.2 mg/L~0.3 mg/L
The carrier gas during adsorption is nitrogen gas.

lWater bath temperature:20-25 ℃

lRefrigeration method:compressor refrigeration

lGas relative humidity:90% ± 5%

lGas specific speed:0.25L/(min. cm²)

lCarbon layer height:5mm

AdsorptionGas concentration: Mass concentration of hydrogen sulfide5mg/L ± 0.5 mg/L
Oxygen volume fraction0.6%~1.0%
Mass concentration of ammonia0.2 mg/L~0.3 mg/L
The carrier gas during adsorption is nitrogen gas.
Water bath temperature20-25 ℃
Refrigeration methodcompressor refrigeration
Gas relative humidity90% ± 5%
Gas specific speed0.25L/(min. cm²)
Carbon layer height5mm

5mm Carbon Layer Impregnated Activated Carbon Saturation Sulfur Capacity Tester GB/T7702.14 1
The self provided reagents, gases, and consumable glass equipment are as follows:
1. Pure nitrogen steel cylinder gas 40L with a purity of 98% 5 bottles
2. Hydrogen sulfide steel cylinder gas 4-8L with a concentration of 10%, 2 bottles
3. Ammonia steel cylinder gas 4-8L with a concentration of 5%, 2 bottles
4. Chemical reagents
4.1 Iodine standard titration solution 0.02mol/L
4.2 Sodium thiosulfate standard titration solution 0.02moI/L
4.3 Sulfuric acid standard solution 0.02mol/L
4.4 Sodium hydroxide standard titration solution 0.02moI/L
4.5 Mass fraction of zinc acetate solution 2%
4.6 Methyl orange indicator mass fraction 1%
4.7 Starch indicator 0.5%
4.8 Ammonia solution GB/T631 analytical pure 1 box
4.9 Sodium sulfide GB/T10500 analytical grade 5 bottles
4.10 Acetic acid (glacial acetic acid) GB/T676 analytical pure 1 box
4.11 Sulfuric acid 50% analytical purity 5 bottles
Vulnerable glass parts:
1. Measurement tube
2. Mixer
3. Absorption bottle
4. Tee pipe
5. Two way piston
