Carbon Tetrachloride Adsorption Rate Tester ST-65 Number Of Samples 6 Display Accuracy ±0.1 ℃

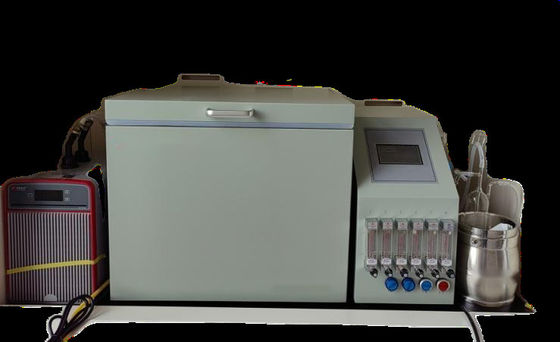

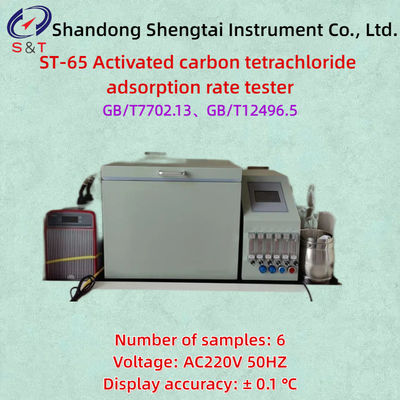

ST-65 Activated carbon tetrachloride adsorption rate tester

The ST-65 Activated Carbon Tetrachloride Adsorption Rate tester is suitable for measuring the carbon tetrachloride adsorption rate of wooden activated carbon and coal based activated carbon. It is designed and manufactured in accordance with the national standards of GB/T7702.13 Test Methods for Coal based Granular Activated Carbon - Determination of Carbon tetrachloride adsorption rate and GB/T12496.5 Test Methods for Wooden Activated Carbon - Determination of Carbon tetrachloride adsorption rate (activity). The instrument consists of a high-precision temperature control unit, a stainless steel water bath system, etc., which has the characteristics of high temperature control accuracy and long insulation time.

The activated carbon tetrachloride desorption rate meter adopts a 4.3-inch intelligent touch screen, which automatically controls the constant temperature of the water bath box, ensuring that the water bath temperature is always maintained at the set temperature. The new intelligent timing function allows for arbitrary setting of working hours, avoiding the uncertainty of manual timing.

Adopting a high-precision platinum probe and a non fixed probe design, it can detect real-time temperature at each working point of the water bath at any time. The water bath unit adopts a double-layer design, filled with environmentally friendly insulation materials inside, which has excellent constant temperature effect and is more energy-efficient.

Main technical parameters:

●Display method: LCD screen display

●Carbon layer height: (10 ± 0.2) cm

●Adsorption temperature: (25 ± 1) ℃ [The serpentine tube must ensure that the airflow temperature reaches the water bath temperature, which is (25 ± 1) ℃].

●Measure the cross-sectional area of the tube: (3.15 ± 0.26) cm²

●Number of samples: 6

●Refrigeration method: compressor refrigeration

●Timing function: The steam time can be set arbitrarily, and the gas will automatically stop at the end of the timing

●Steam generator bottle: 60 * 280

●Temperature control range: 1.0 ℃ -9.9 ℃

●Display accuracy: ± 0.1 ℃

●Purification device: (50mm * 320mm) * 2

●Steam generator bottle: 60 * 280

●Overall power:＜2000W

●External dimensions: length×width×height

●Temperature control unit: 255×550×450mm(L*W*H)

●Water bath unit: 570×525×510 mm(L*W*H)

●Refrigeration unit: 200×340×300 mm(L*W*H)

●Voltage: AC220V 50HZ
