6 Channel Activated Carbon Carbon Dioxide Adsorption Rate Meter LYT 1971-2011 Vacuum Degree 0.093Mpa

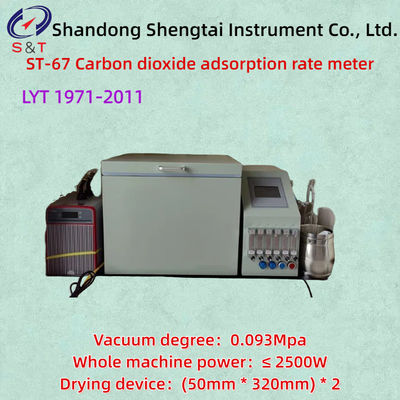

ST-67 Carbon dioxide adsorption rate meter

The ST-67 activated carbon carbon dioxide adsorption rate meter is suitable for measuring the carbon dioxide adsorption rate of activated carbon, and meets the national standard requirements of LYT 1971-2011 "Activated Carbon for Pressure Swing Adsorption Refinement of Hydrogen (Carbon Dioxide Adsorption Capacity)".

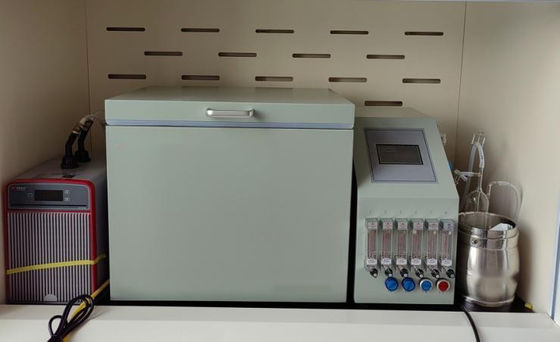

The instrument adopts a 4.3-inch intelligent touch screen human-machine exchange design, equipped with a compressor refrigeration cycle device as standard, and fully automatic control of the heating and cooling functions of the water bath box, ensuring that the water bath temperature is always maintained at the set temperature. The instrument is designed as a separate unit, consisting of a smart screen integrated circuit control unit, a vacuum pump body, a purification unit, a constant temperature water bath unit, and a compressor refrigeration cycle unit to form an intelligent detection device,

Design 6 channels that can simultaneously detect and analyze 6 samples, greatly improving the efficiency of operational analysis experiments. The temperature collection uses high-precision platinum probes and a non fixed probe design, which can monitor real-time temperature data at every point in the water bath at any time. The water bath unit adopts a double-layer design, filled with environmentally friendly insulation materials inside, which has excellent constant temperature effect and is more energy-efficient.

Technical parameters:

●Voltage:AC220V

●Executive standard:LYT 1971-2011

●Heating method:Electric heating

●Display method:4.3-inch intelligent touch screen

●Temperature control method:fully automatic heating and cooling

●Refrigeration method:compressor refrigeration

●Drying device:(50mm * 320mm) * 2

●Vacuum degree:0.093Mpa

●Safety measures:Leakage protection switch

●Flowmeter material:Agate

●Gas flow rate:(1670 ± 70) mL/min

●Temperature control accuracy:25 ℃± 0.1 ℃

●Temperature control range:1.0 ℃ -9.9 ℃

●Boundary dimensions:length × width × height

●Temperature control unit:255×550× 450mm(L*W*H)

●Water bath unit:570×525×510 mm(L*W*H)

●Refrigeration unit:200×340×300 mm(L*W*H)

●Whole machine power:≤ 2500W
