Resolution 0.1N Automatic Sugar Cube Hardness Tester Measuring Range 0-50MPa Indication Error ±1%

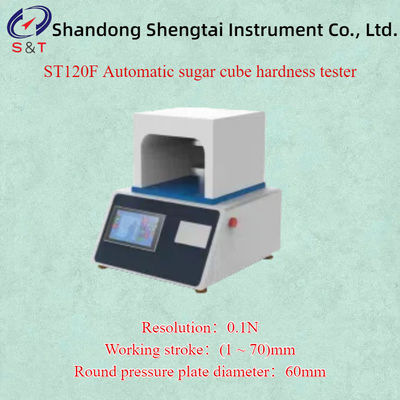

ST120F Automatic sugar cube hardness tester

ST120F Automatic sugar cube hardness tester is our company according to the standard QBT 1214-2002 sugar cube and QB/T 5011-2016 sugar cube test method GB/T35888-2018 sugar cube regulation research and development using modern mechanical design concept and microcomputer processing technology for careful and reasonable design of a new type of high-precision intelligent tester, the use of advanced components, supporting components, single-chip microcomputer, reasonable structure and multi-functional design, configuration of liquid crystal Chinese display, It has various parameter testing, conversion, adjustment, display, memory, printing and other functions included in the standard.

Product features:

1. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance;

2. The instrument adopts the upper pressure plate fixed type, high-precision load cell to ensure the rapidity and accuracy of the instrument force value data collection; High measurement accuracy.

3. Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable with powerful data processing function, can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, stable performance.

4. It can display the curve of pressure and deformation, and display information such as pressure resistance and deformation in real time;

5. Modular integrated thermal printer, fast printing speed and convenient paper change;

Product parameters:

Measuring range:0-50MPa

Indication error:±1%

Variability of indication:<1%

Resolution:0.1N

Working stroke:(1 ~ 70)mm

Round pressure plate diameter:60mm

Working environment:Temperature (20 ± 10 )°C Relative humidity < 85%

Dimensions:(530×350×580) mm (L×W×H)

Weight approx:55kg
