Automatic Eggshell Hardness Tester ST120H Indication Accuracy <±1% Resolution 0.01N

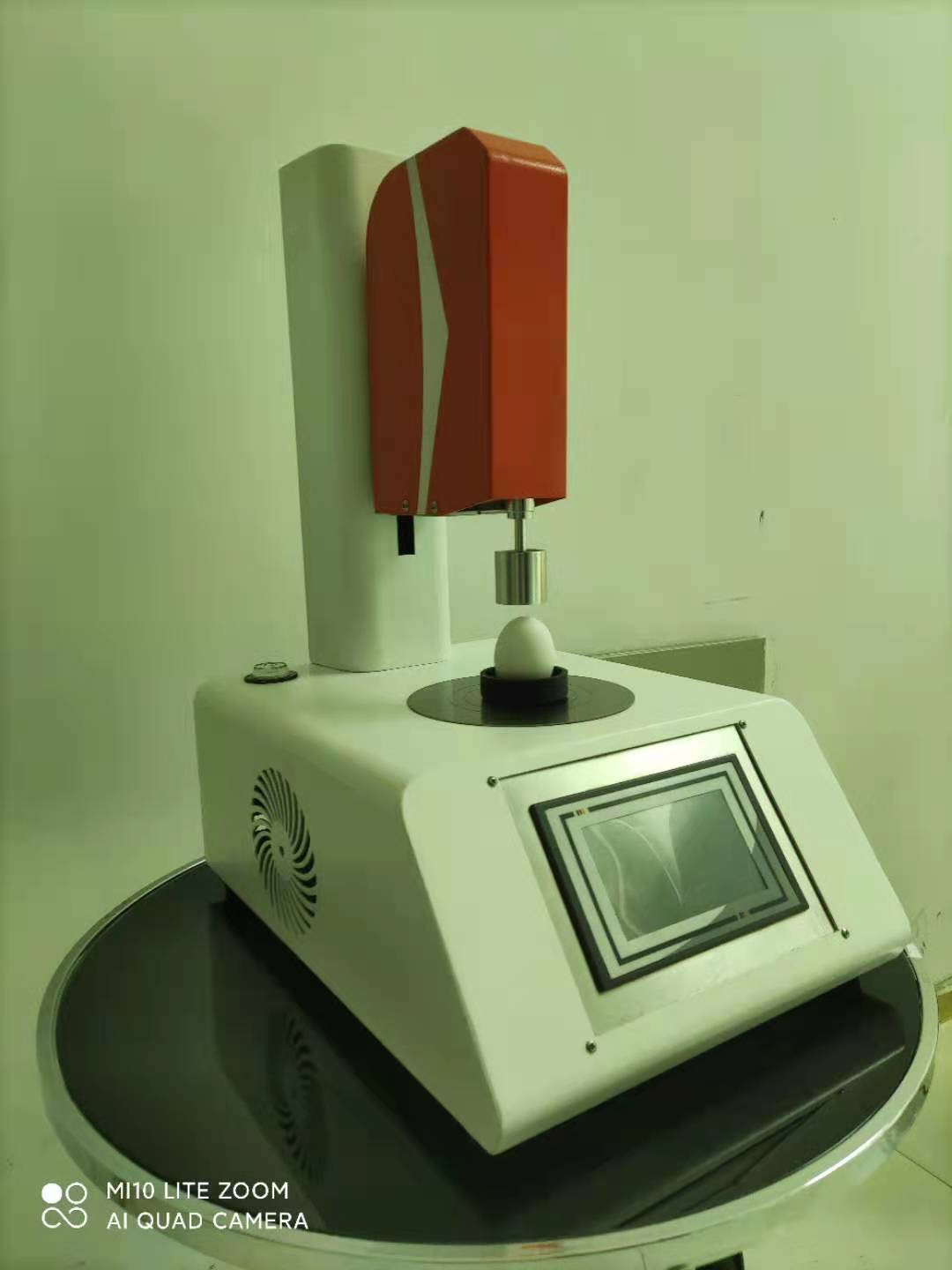

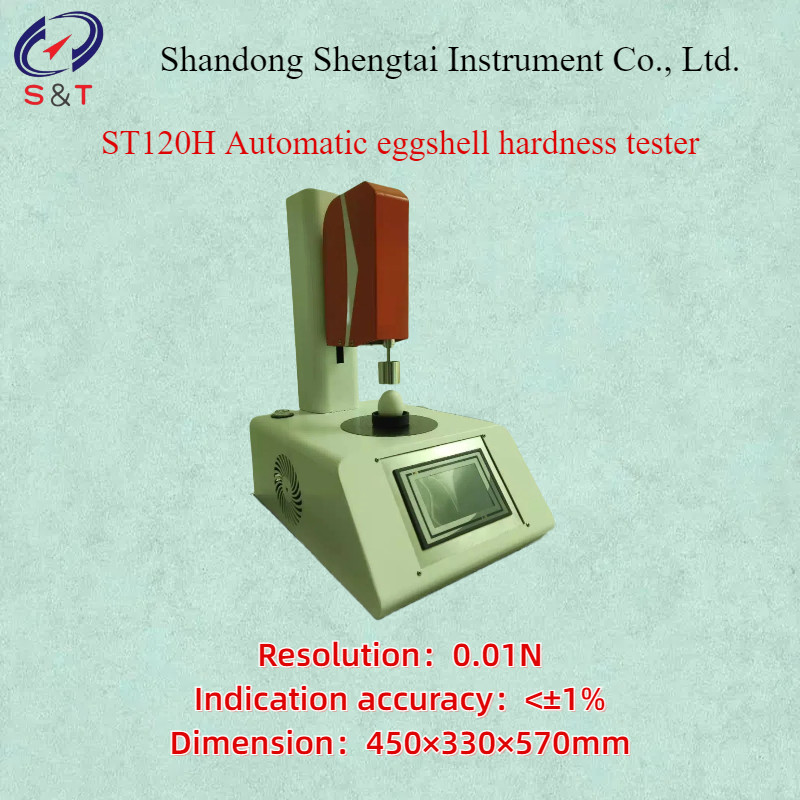

ST120H Automatic eggshell hardness tester

ST120H Automatic eggshell strength tester is a new type of high precision intelligent test instrument, which adopts modern mechanical design concept and microcomputer processing technology to design meticulously and reasonably. It adopts advanced components, supporting parts, single chip microcomputer, and so on. Reasonable structure and multi-function design, configuration of LCD Chinese display, with the standard contained in the various parameters testing, conversion, adjustment, display, memory, printing and other functions.

Principle: the egg is fixed vertically between the upper and lower measuring surface, the measuring surface moves relatively at a certain speed, and the egg is crushed. The force required for the breaking process is measured by sensors and recorded and displayed.

Product parameter:

Measuring range:(0~200) N or (0~20) kg

Resolution:0.01N

Indication accuracy:<±1%

Test speed:(0.5~20) mm/s can be arbitrarily set or fixed 20 mm/s

Dimension:450×330×570mm

Weight:25kg

Product features

1.Mechatronics modern design concept, compact structure, nice appearance, easy maintenance.

2.Adopting high precison weighing sensor fixed on upper platen, to ensure colleting data rapidly and accurately.

3.Adopting high-speed ARM processor, to ensure the high degree of automation and intelligentize, very easy to operate. It have power data processing function, can get all the statistical results.

4.Display the pressure force and deflection in time on the LCD display.

5.Finishing test, the measuring head can revert automatically.

6.Equipped with micro-printer, convenient to get the result.

Packing list

ST120H Automatic eggshell strength tester is a new type of high precision intelligent test instrument, which adopts modern mechanical design concept and microcomputer processing technology to design meticulously and reasonably. It adopts advanced components, supporting parts, single chip microcomputer, and so on. Reasonable structure and multi-function design, configuration of LCD Chinese display, with the standard contained in the various parameters testing, conversion, adjustment, display, memory, printing and other functions.

Principle: the egg is fixed vertically between the upper and lower measuring surface, the measuring surface moves relatively at a certain speed, and the egg is crushed. The force required for the breaking process is measured by sensors and recorded and displayed.
