ST-200 tapping type standard vibrating screen machine screen layer 2-7 rotation stroke 25mm

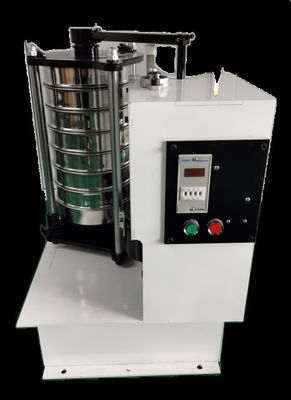

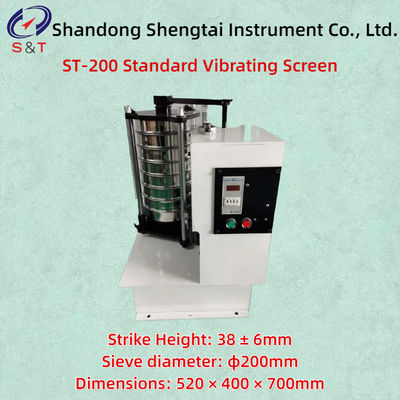

ST-200 Standard Vibrating Screen

ST-200 rapping and vibrating screen machine is mainly composed of base, screen and transmission mechanism. This rapping screen can be equipped with special clamps, which can be clamped Φ 200 test sieve, which can also be loaded Φ 75, Φ 100 sets of screens, easy and flexible clamping, reliable clamping, and automatic shutdown.

working principle:

The ST-200 series rapping screen motor drives the gear to change speed through the synchronous belt to make the main shaft rotate. The main shaft drives the eccentric wheel to make the sliding plate drive the test screen to shake left and right, and at the same time, it drives the ejector gear to rotate, and top the rapping hammer, rapping the test screen, so as to screen the materials in the test screen and sample screen.

Purpose of ST-200 series percussion screen:

ST-200 series rapping screen can screen products with various characteristics. It is applicable to the particle size composition inspection of ordinary abrasives and the production grading and particle size composition inspection of superhard materials. It is widely used in scientific research and production laboratories of geology, metallurgy, powder, chemical engineering, construction cement, medicine, national defense and other departments to screen and test materials.

The flapping screen is a reasonable innovation on the basis of the original flapping standard vibrating screen machine, improving the structure of the original base. The structure is more compact, the weight of the machine body is reduced, the product is more durable, light and convenient, the maintenance is more simple, and the accessories are easy to repair and buy. It can be widely used in the laboratory screening and detection of geological, powder metallurgy, abrasive, powder, chemical, building materials, medicine, national defense and other departments, especially in the production grading process of diamond powder and superhard material industries, which is used repeatedly with high intensity and high frequency.

Main technical parameters of tapping screen:

1. Sieve diameter: φ200mm

2. Sieve layer: 2-7

3.200 Experimental Screening Group: 1 set

4. ★ Speed: 290 ± 6Times/minute

5. ★ Hits: 156 ± 3Times/minute

6. Strike Height: 38 ± 6mm

7. Chassis levelness: ≤ 0.6mm/min

8. Rotation stroke: 25mm

9. Motor power: 0.37KW Speed: 1400rpm

10. Dimensions: 520 × 400 × 700mm

11. Screen weight: 84kg
