STNY-106 Pesticide Boiling Point Meter Cooking Oil NY/T1860.19 Heat Room Temp To 300 ℃

STNY-106 Pesticide boiling point meter

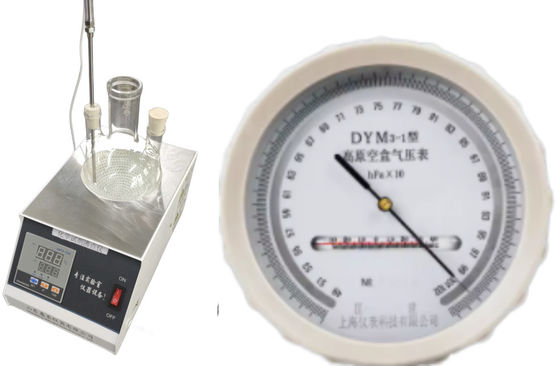

The STNY-106 pesticide boiling point meter is designed and manufactured strictly in accordance with the testing guidelines for the physical and chemical properties of pesticides in NY/T1860.19, Part 19: Boiling point determination method. It uses a digital tube display and a single-chip microcomputer digital precision pressure regulating electric heater. Due to the use of precision digital pressure regulation, the electric heater has the characteristics of fine pressure regulation, stable heating, and stable temperature rise.

Boiling point: The principle of this method is that as the temperature of the liquid rises, its vapor pressure also increases. When the vapor pressure of the liquid is equal to atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0 ℃), the boiling temperature of the liquid is the boiling point of the liquid.

Technical parameters:

● Working power supply: AC 220V ± 10%, 50Hz

● Electric furnace heating power: 1000W

● Environmental temperature: ≤ 35 ℃

● Relative humidity: ≤ 85%

● Power consumption of the entire machine: not more than 1100W

● Heating range: room temperature to 300 ℃

● Instrument size: 320 × 290 × 360mm

● Instrument Weight: 15kg

● Packaging size: 450 × 390 × 420mm

● Packaging Weight: 18kg

● Customer provided: atmospheric pressure gauge

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
